DPS-70 C - DPS-70 CN DIAPHRAGM PUMPS
EN

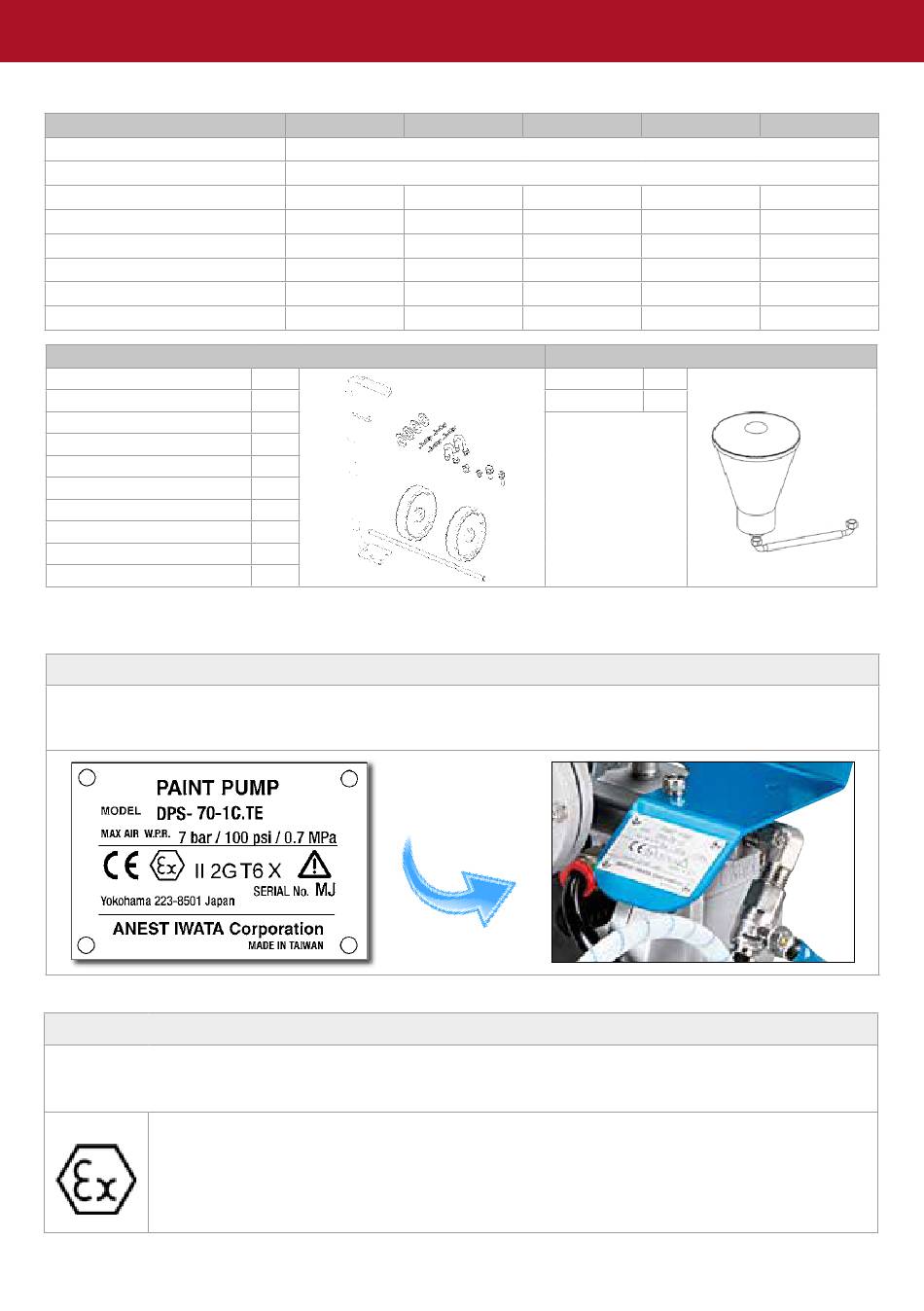

4.5 PIECES CONTAINED IN THE PACKAGE

ASSEMBLY
PR-5BL
Drain hose set
*Cart set
Supply lid
Hose band
Suction hose set with filter
Dip tube with filter
**Gravity hopper set

*CART SET

AXLE
"U" BOLT _ HEX. NUT
SNAP PIN
WASHERS
SOLID TIRES
HANDLE
HEX. NUT (M8)
BOLT WITH HEX. HOLE (M8)
HEX. NUT (M6)
BOLT WITH HEX. HOLE (M6)
5. PRODUCT IDENTIFICATION

5.1 PLATE DATA

The manufacturer's identification plate is applied on the diaphragm pump (see picture below).
It must not be removed at all, even if the equipment is resold. For any communication with the manufacturer always mention
the serial number written on the plate itself.
5.2 COMPLIANCE TO THE STANDARD
All the units are conceived in compliance with the applicable Essential Safety Requirements of the Machinery Directive
2006/42/EC. The units are also designed and manufactured in compliance with the Essential Safety Requirements (ESR) of
Annex II of Directive "ATEX" 2014/34/EU and they comply with the following classification:
• Equipment group : II
• Category: Gas 2G (Suitable for use in zones 1 and 2)
• Max. surface temperature: temperature class T6
• X marking : Any static electricity discharge from the pump is to be diverted to the ground through the
grounding wire which is included in this product.
6
on STAND
-
-
3
1
-
-
1
2 + 4
4
4
2
1
1
1
1
1
on CART ALL MODEL
1
1
1
-
3
1
-
1
**HOPPER SET
HOPPER
"U" HOSE
on TANK MOUNT on WALL MOUNT
- -
1 -
- 3
- 1
1 -
- -
1
1
