Exsys EX-3521 Bedienungsanleitung

EX EX- EX - - 3521 3521 3521
JUMPER SETTING & CONNECTORS
J3:
Connector for Device 1
LED1 | LED2
Connector for Device 2
HARDWARE INSTALLATION
If you are ready with the settings and want to install the EX-3521, please proceed with
the following installation instructions. Because there are large differences between PC's,
we can give you only a general installation guide for the EX-3521. Please refer your com-
puter's reference manual whenever in doubt.
1. Turn off the power from your computer and any other connected peripheral.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter case and gently slide the cover off.
3. Locate an available PCI-Express expansion Slot and remove its covers from the
rear panel of your computer.
4. Align the EX-3521 with the expansion Slot, and then gently but firmly, insert the
card. Make sure the card is seated and oriented correctly.
5. Align the EX-3521 with a screw against the rear panel of the case.
6. Connect the IDE cable to the 40 pin male connector and to your drives as shown
on the picture below. Make sure the drives are correctly set to master & slave (CD-
writer is Master) and the Pin1 is at the right position!
7. Gently replace your computer's cover and the mounting screws.

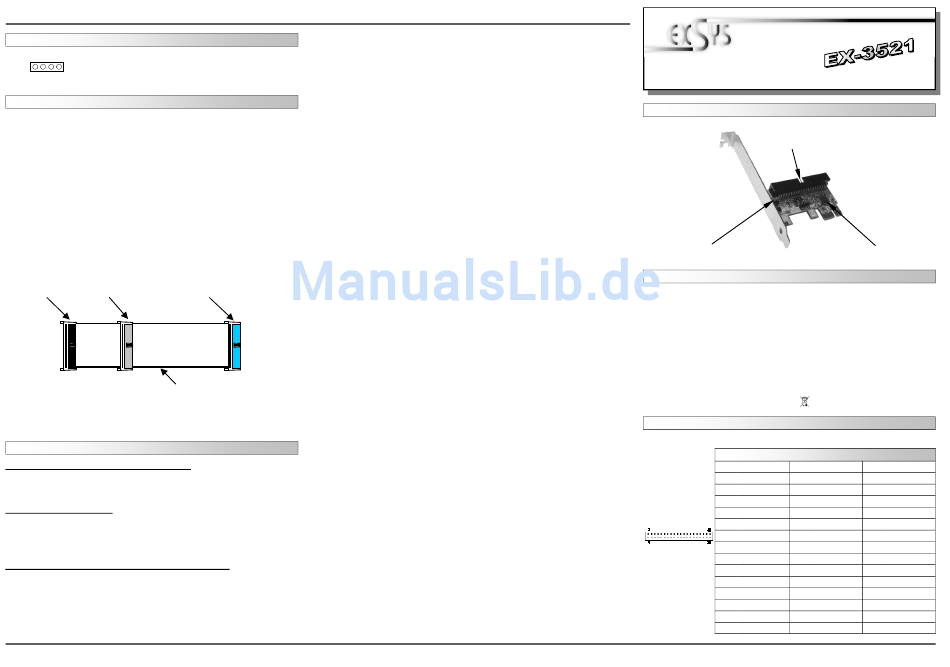

Black Connector Grey Connector Blue Connector
Master drive Slave drive Connect to EX-3521
(DEVICE 0) (DEVICE 1) (System)
Attention! Connect Pin 1 (marked red) only to Pin1 at the device !!!
•
Connect the blue connector to the EX-3521
•
Connect the black connector the the Master drive
•
Connect the grey connector to the Slave drive
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x
After starting the operating system Windows will recognize a new device "Standard
PCI IDE Controller" . The Windows Hardware wizard will appear and automatically
search and install the driver for the card.
CHECK INSTALLED DRIVER
Click at >Start< >Settings< >Control Panel< >Administrative Tools< >Computer
Management< >Device-Manager<. There you will see at „IDE ATA / ATAPI Controller)"
a new „Standard PCI IDE Controller" „Primary IDE Channel" & „Secondary IDE
Channel". If you see this or a similar information the EX-3521 is installed correctly.
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x from CD
If you want to install a new Windows simply connect the EX-3521 to your CD- or DVD-
drive and install the new operating system by using the Windows setup CD. Windows
will automatically install the card while the setup routine.
5
English English English EX- EX EX - - 3521 3521 3521 English English English
AUFBAU
J3: Anschluss für
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-3521 ist eine ATAPI kompatible PATA IDE Schnittstellenkarte mit einem 40 Pin
IDE Port, für den Anschluss von bis zu 2 CD– & DVD-Laufwerken (Master, Slave). Die
EX-3521 ist speziell für den Anschluss von allen CD-, DVD-, Brennern und Kombilauf-
werken geeignet und unterstützt alle PCI-Express Slots von x1 bis x16. Der serielle PCI-
Express Bus unterstützt dabei optimal die Leistung des Chipset. Die EX-3521 gewähr-
leistet so eine sichere Datenübertragung! Es ist nicht möglich die I/O Adressen und
Interrupts manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und
beim installieren des Betriebssystems automatisch vorgenommen werden.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE
IDE 40Pin:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 2.1 / 01.11.13
J2: IDE Anschluss für
DVD-Laufwerke 40Pin
Gehäuse LED´s
PCI-Express x1 bis x16
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x/ (Linux vom OS)
1x 40 Pin IDE Anschluss
EX-3521, Anleitung, IDE Kabel
CE / FCC / RoHS / WEEE CE CE CE DE97424562 / WHQL
40 Pin IDE PATA Stecker
Pin Signal Pin Signal
1 RESET 14
2 GND 15
3 DD 7 16
4 DD 8 17
5 DD 6 18
6 DD 9 19
7 DD 5 20
8 DD 10 21
9 DD 4 22
10 DD 11 23
11 DD 3 24
12 DD 12 25
13 DD 2 26
1
PATA IDE
ATAPI Chipset
Pin Signal
DD 13 27 IO_CH_READY
DD 1 28 ALE
DD 14 29 N/C
DD 0 30 GND
DD 15 31 IRQR
GND 32 /IOCS16
KEY 33 DA1
N/C 34 N/C
GND 35 DA0
/IOW 36 DA2
GND 37 IDE_CS0
/IOR 38 IDE_CS1
GND 39 ACTIVE
40 GND
