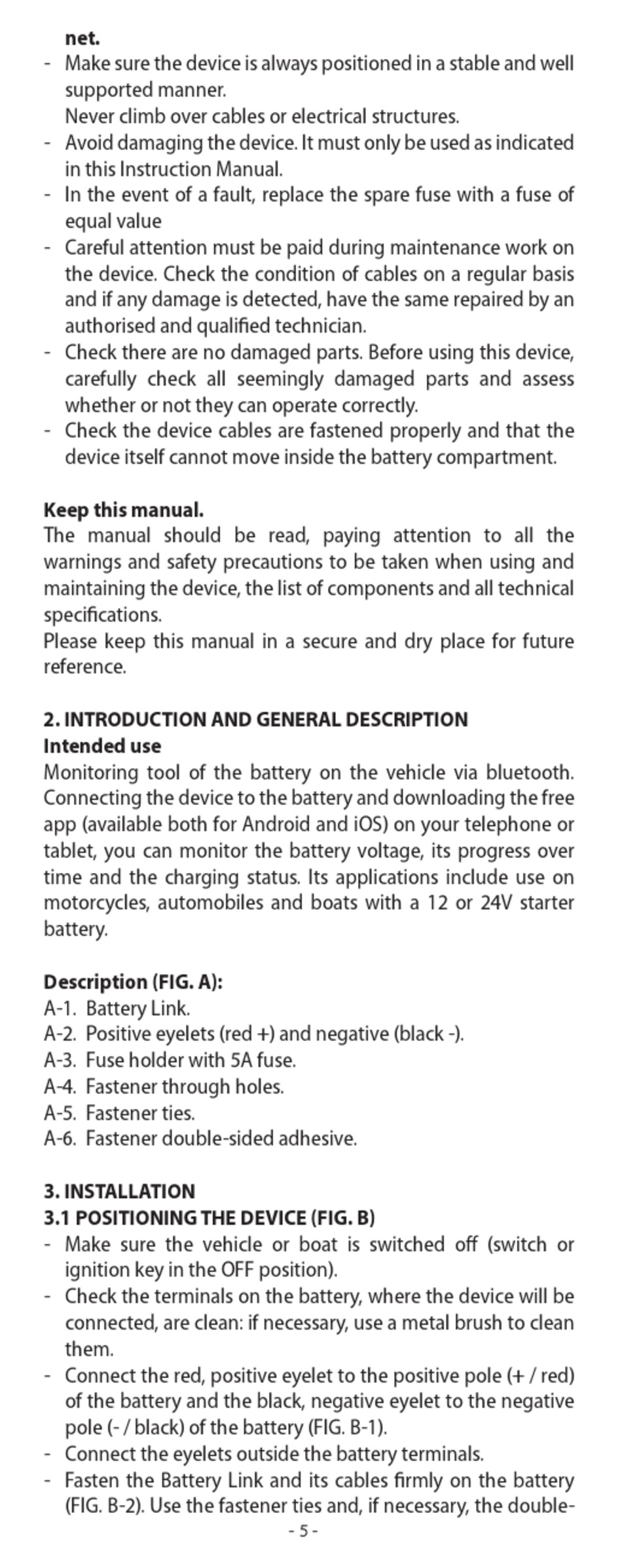

net.
- Make sure the device is always positioned in a stable and well
supported manner.
Never climb over cables or electrical structures.
- Avoid damaging the device. It must only be used as indicated
in this Instruction Manual.
- In the event of a fault, replace the spare fuse with a fuse of
equal value
- Careful attention must be paid during maintenance work on
the device. Check the condition of cables on a regular basis
and if any damage is detected, have the same repaired by an
authorised and quali ed technician.
- Check there are no damaged parts. Before using this device,
carefully check all seemingly damaged parts and assess
whether or not they can operate correctly.
- Check the device cables are fastened properly and that the
device itself cannot move inside the battery compartment.
Keep this manual.
The manual should be read, paying attention to all the
warnings and safety precautions to be taken when using and
maintaining the device, the list of components and all technical
speci cations.
Please keep this manual in a secure and dry place for future
reference.

2. INTRODUCTION AND GENERAL DESCRIPTION

Intended use
Monitoring tool of the battery on the vehicle via bluetooth.
Connecting the device to the battery and downloading the free
app (available both for Android and iOS) on your telephone or
tablet, you can monitor the battery voltage, its progress over
time and the charging status. Its applications include use on
motorcycles, automobiles and boats with a 12 or 24V starter
battery.
Description (FIG. A):
A-1. Battery Link.
A-2. Positive eyelets (red +) and negative (black -).
A-3. Fuse holder with 5A fuse.
A-4. Fastener through holes.
A-5. Fastener ties.
A-6. Fastener double-sided adhesive.
3. INSTALLATION
3.1 POSITIONING THE DEVICE (FIG. B)
- Make sure the vehicle or boat is switched o (switch or
ignition key in the OFF position).
- Check the terminals on the battery, where the device will be
connected, are clean: if necessary, use a metal brush to clean
them.
- Connect the red, positive eyelet to the positive pole (+ / red)
of the battery and the black, negative eyelet to the negative
pole (- / black) of the battery (FIG. B-1).
- Connect the eyelets outside the battery terminals.
- Fasten the Battery Link and its cables rmly on the battery
(FIG. B-2). Use the fastener ties and, if necessary, the double-
- 5 -
