Procedure:
1) After switching it on, you can adjust the parameters for the axis using the corresponding buttons
(fi gure). When in setting mode, the LED will fl ash.
2) If the rotation/swivel/tilt axis moves from side to side, move the joystick up to select a higher value
for the parameters.
3) If the motor has registered that the handle is being held, move the joystick down to lower the value
for the parameters.
4) As soon as the tilt lever can no longer be seen, let go of the button and go to the interface to save
the parameters.

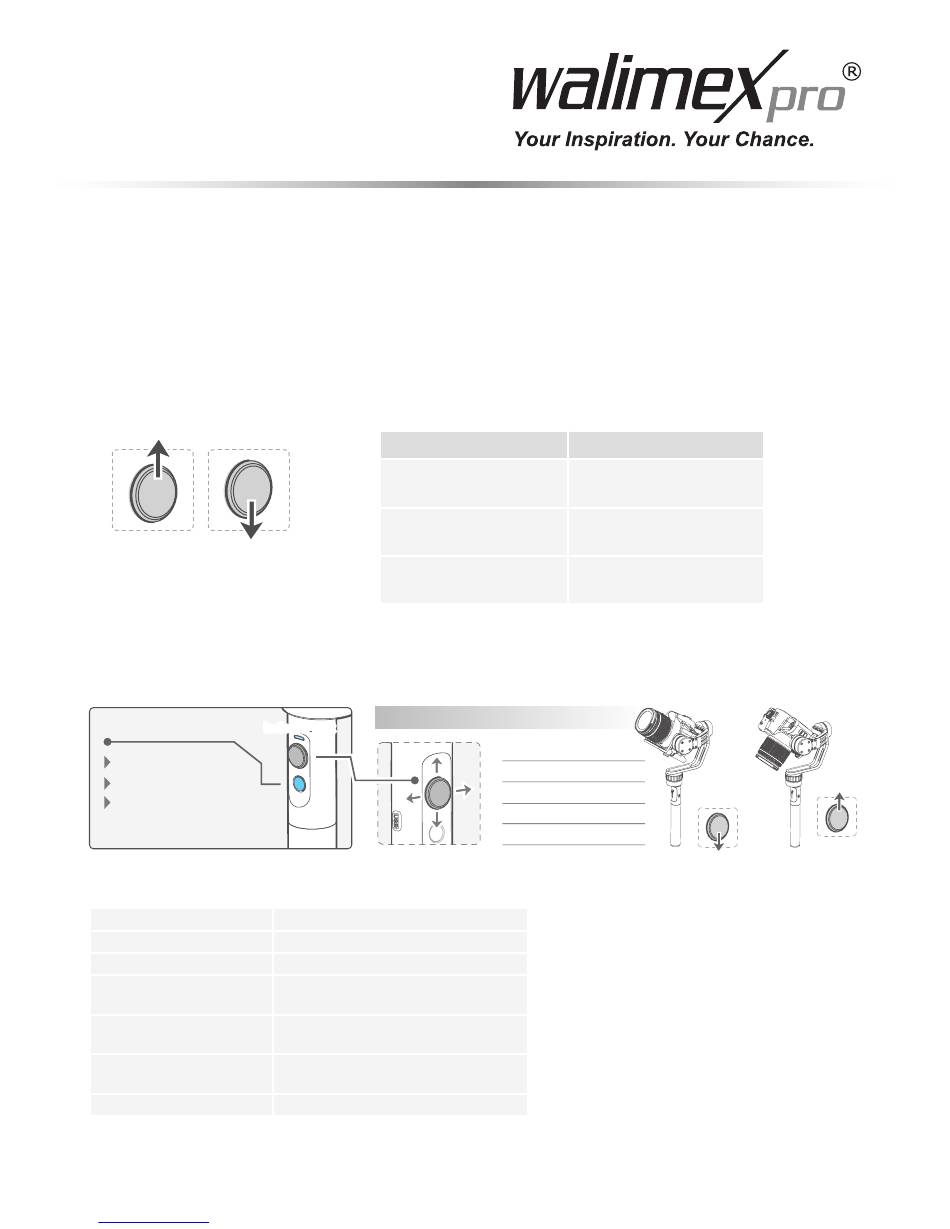

Moving the joystick:
down to lower the parameters
up to increase the parameters

7. Function

Function Button
Power on / off
Switch the working mode
Realize other functions
Identify the current mode of the
gimbal by the indicator lights

7.1 Indicator light

Blue LED fl ashes once
Blue LED fl ashes twice
Blue LED remains lit
Blue LED fl ashes
constantly
Blue LED fl ashes three
times
Red LED fl ashes three
times
Red LED lights up
Downloaded from www.Manualslib.com
Function button
Tap the button
fi ve times
Tap the button
six times
Tap the button
seven times
Explanation of joystick control
Indicator light Indicator light
The device is in swivel mode
The device is in swivel and tilt mode
Gimbal installation mode
Installation failed/malfunction
Standby mode
Low battery
Switch off
manuals search engine
Set axis
Adjust the rotation axis
Adjust the swivel axis
Adjust the tilt axis
JoystickD irection
Up Down
Down Up
Left Left
Ringt Ringt
Joystick
down
Joystick up
