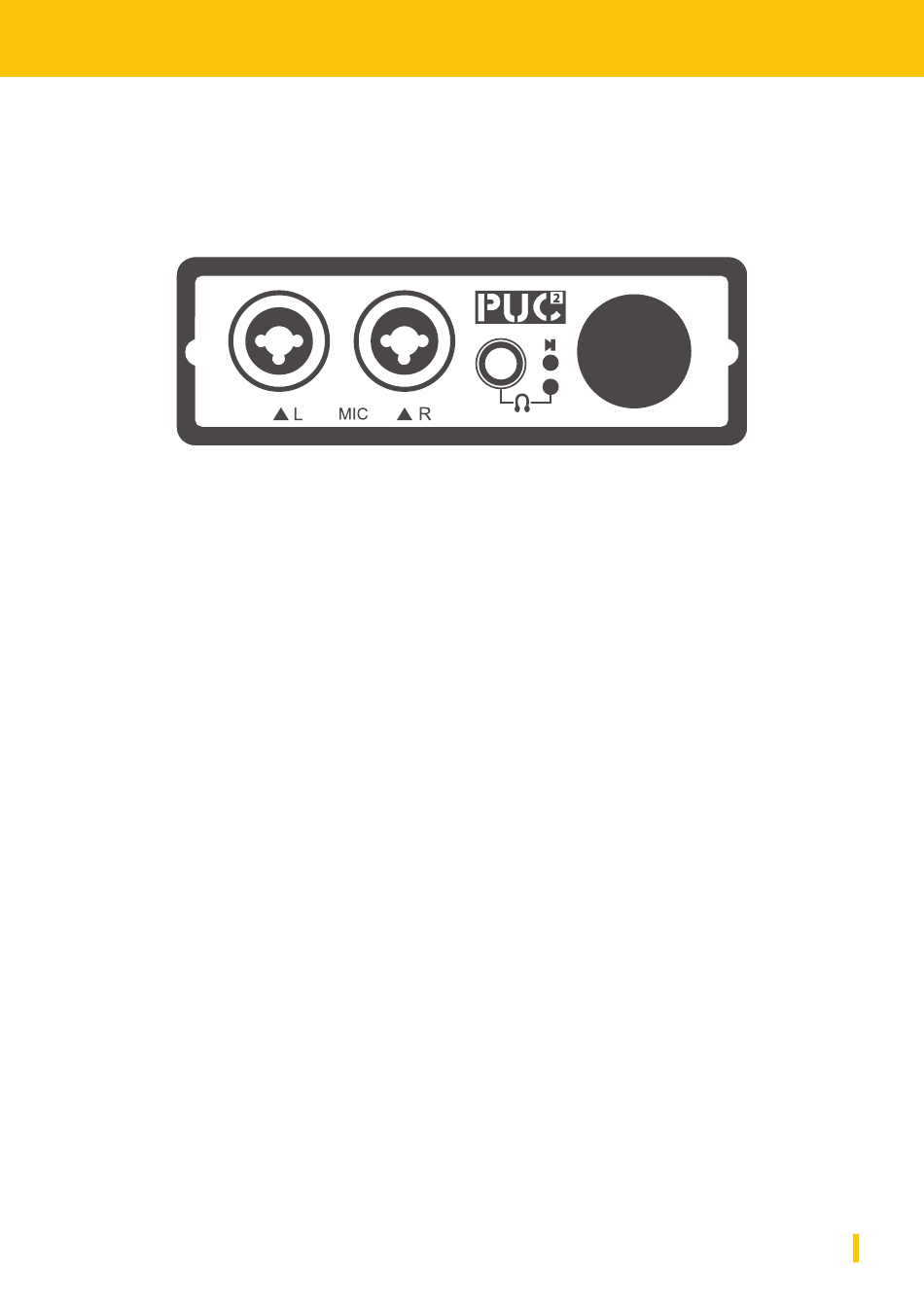

PUC2 MIC LEA Back Panel
The combined input connector for XLR and 6.3mm jack
features a microphone and line level input preserving
the optimum input impedance for each.
XLR Mic Input
The rear of PUC2
Mic LEA features
the analog
balanced
mic inputs. The
analog input will
be disregarded
whenever an
AES-3 input signal
is present and
locked.
Volume Control
The PUC2 features volume control for headphone and
monitor output. LEDs indicate which control is active.
Press the volume knob to switch between both options.
Line Level Input

PUC2 Mic LEA

also features a
line level input.
Achieve up to
+18dBu by
connecting
through
symmetrical
6.3mm jack input.
PUC2 Mic LEA
Headphone Out
The headphone
output contains
a high-class A/B
amplifier which is
capable of driving
high-impedant
headphones.
