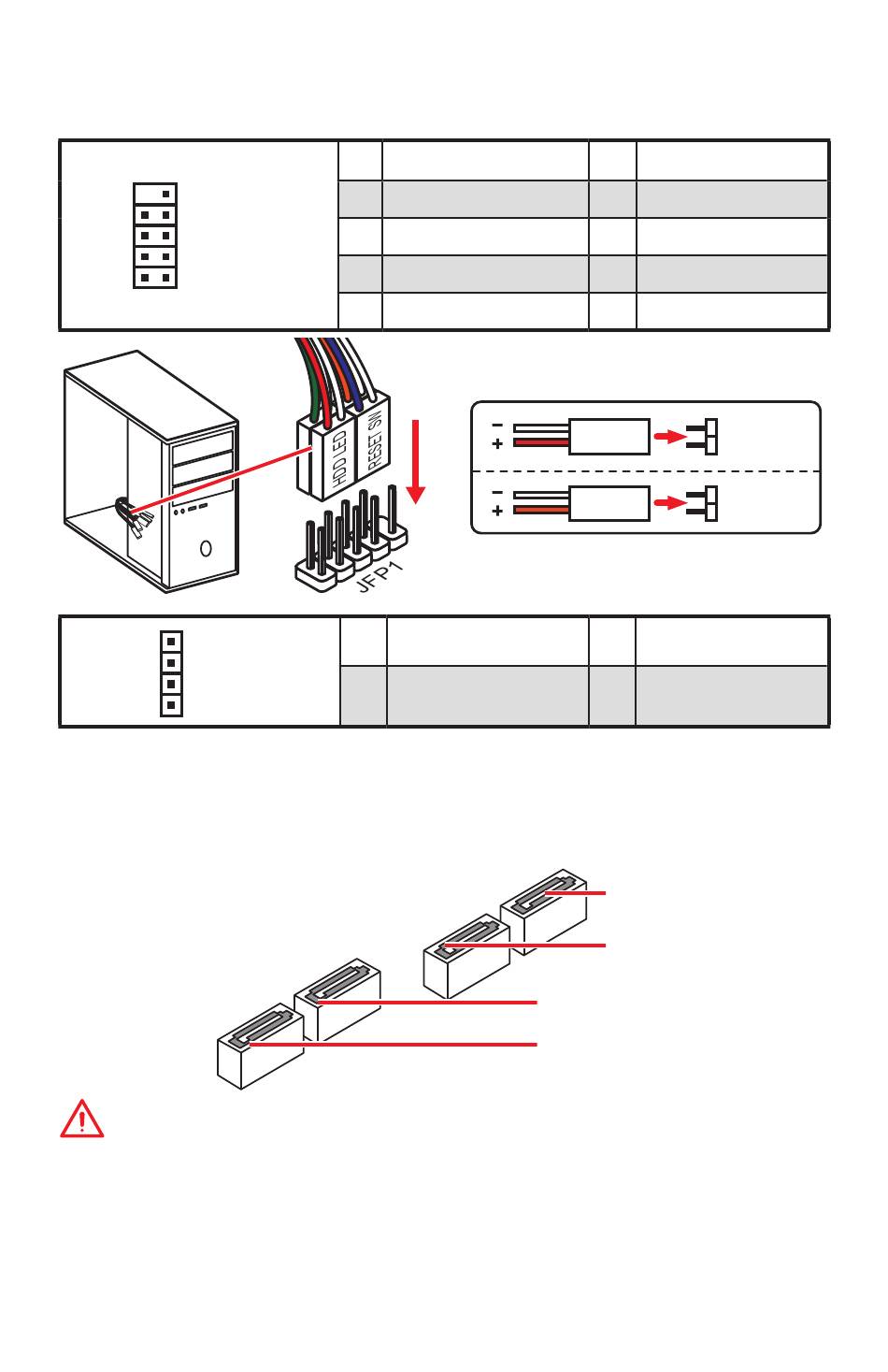

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.
9
10
JFP1
2
1
JFP2
1

SATA1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
y
transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
y
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA4 port will be unavailable when an M.2 SATA SSD module has been installed
y
in the M.2 slot.
1 HDD LED +
3 HDD LED -
5 Reset Switch
7 Reset Switch
9 Reserved
1 Speaker -
3 Buzzer -
2 Power LED +
4 Power LED -
6 Power Switch
8 Power Switch
10 No Pin
HDD LED
POWER LED
2 Buzzer +
4 Speaker +
SATA1
SATA2
SATA3
SATA4
Overview of Components
HDD LED -
HDD LED +
POWER LED -
POWER LED +
11
