E

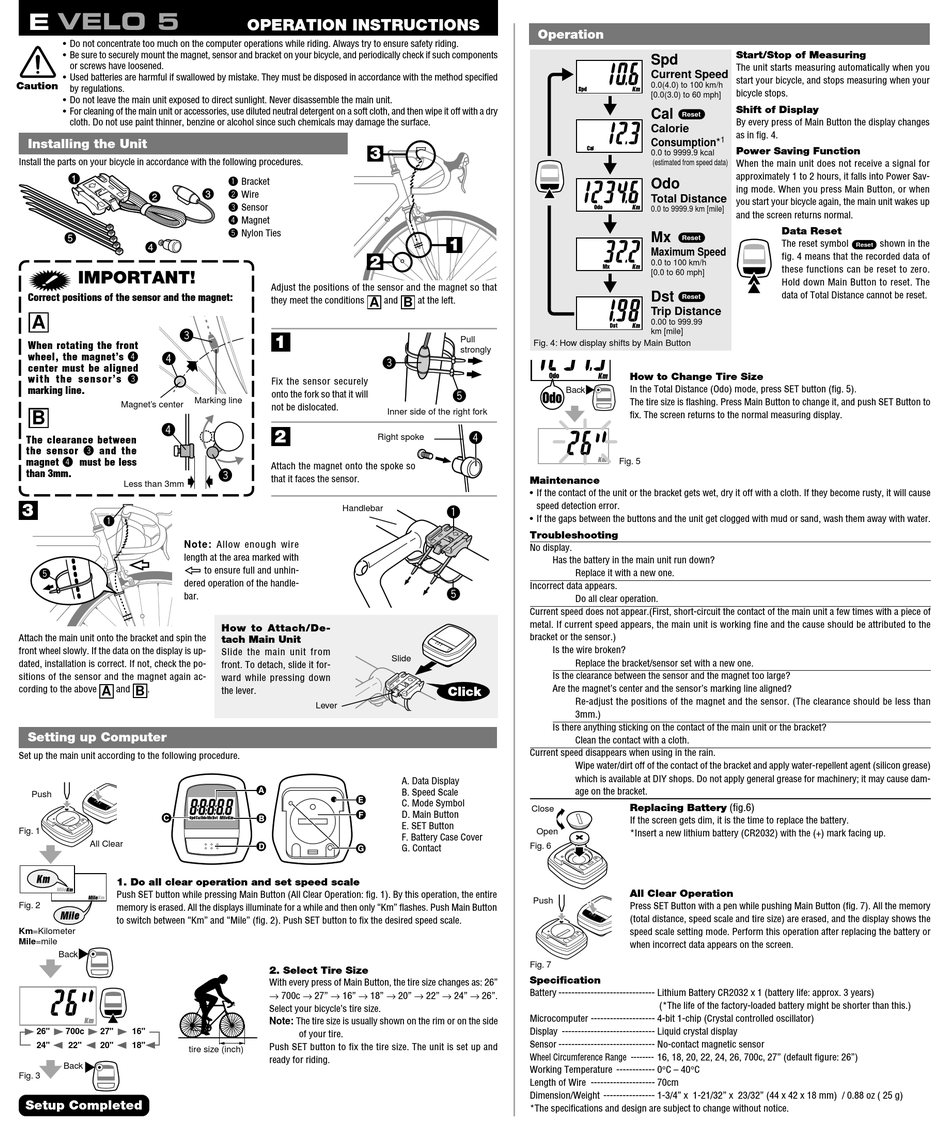

VELO 5
• Do not concentrate too much on the computer operations while riding. Always try to ensure safety riding.
• Be sure to securely mount the magnet, sensor and bracket on your bicycle, and periodically check if such components
or screws have loosened.
• Used batteries are harmful if swallowed by mistake. They must be disposed in accordance with the method specified
Caution
by regulations.
• Do not leave the main unit exposed to direct sunlight. Never disassemble the main unit.
• For cleaning of the main unit or accessories, use diluted neutral detergent on a soft cloth, and then wipe it off with a dry
cloth. Do not use paint thinner, benzine or alcohol since such chemicals may damage the surface.
Installing the Unit
Install the parts on your bicycle in accordance with the following procedures.
IMPORTANT!
Correct positions of the sensor and the magnet:
A
3
When rotating the front
wheel, the magnet's 4
4
center must be aligned
with the sensor's 3
marking line.
Marking line
Magnet's center
B
4
The clearance between
the sensor 3 and the
magnet 4 must be less
than 3mm.
Less than 3mm
3
1
Note: Allow enough wire
length at the area marked with
5
dered operation of the handle-
bar.
Attach the main unit onto the bracket and spin the
front wheel slowly. If the data on the display is up-
dated, installation is correct. If not, check the po-
sitions of the sensor and the magnet again ac-
cording to the above
and
B
.
A
Setting up Computer
Set up the main unit according to the following procedure.
Push
Fig. 1
All Clear
1. Do all clear operation and set speed scale
Push SET button while pressing Main Button (All Clear Operation: fig. 1). By this operation, the entire
Fig. 2
memory is erased. All the displays illuminate for a while and then only "Km" flashes. Push Main Button
to switch between "Km" and "Mile" (fig. 2). Push SET button to fix the desired speed scale.
Km=Kilometer
Mile=mile
Back
26"
700c
27"
16"
24"
22"
20"
18"
tire size (inch)
Back
Fig. 3
Setup Completed
OPERATION INSTRUCTIONS
3
1
Bracket
2
Wire
3
Sensor
4
Magnet
5
Nylon Ties
2
Adjust the positions of the sensor and the magnet so that
they meet the conditions
and
A
1
3
Fix the sensor securely
onto the fork so that it will
not be dislocated.
2
Right spoke
Attach the magnet onto the spoke so
3
that it faces the sensor.
Handlebar
to ensure full and unhin-
How to Attach/De-
tach Main Unit
Slide the main unit from
front. To detach, slide it for-
ward while pressing down
the lever.
Lever
2. Select Tire Size
With every press of Main Button, the tire size changes as: 26"
→ 700c → 27" → 16" → 18" → 20" → 22" → 24" → 26".
Select your bicycle's tire size.
Note: The tire size is usually shown on the rim or on the side
of your tire.
Push SET button to fix the tire size. The unit is set up and
ready for riding.
Operation
1
at the left.
B
Pull
Fig. 4: How display shifts by Main Button
strongly
Back
5
Inner side of the right fork
4
Maintenance
• If the contact of the unit or the bracket gets wet, dry it off with a cloth. If they become rusty, it will cause
speed detection error.
1
• If the gaps between the buttons and the unit get clogged with mud or sand, wash them away with water.
Troubleshooting
No display.
Has the battery in the main unit run down?
Incorrect data appears.
5
Current speed does not appear.(First, short-circuit the contact of the main unit a few times with a piece of
metal. If current speed appears, the main unit is working fine and the cause should be attributed to the
bracket or the sensor.)
Is the wire broken?
Slide
Is the clearance between the sensor and the magnet too large?
Are the magnet's center and the sensor's marking line aligned?
Click
Is there anything sticking on the contact of the main unit or the bracket?
Current speed disappears when using in the rain.
A. Data Display
B. Speed Scale
C. Mode Symbol
Close
D. Main Button
E. SET Button
Open
F. Battery Case Cover
Fig. 6
G. Contact
Push
Fig. 7
Specification
Battery ------------------------------ Lithium Battery CR2032 x 1 (battery life: approx. 3 years)
Microcomputer -------------------- 4-bit 1-chip (Crystal controlled oscillator)
Display ----------------------------- Liquid crystal display
Sensor ------------------------------ No-contact magnetic sensor
Wheel Circumference Range -------- 16, 18, 20, 22, 24, 26, 700c, 27" (default figure: 26")
Working Temperature ------------ 0°C – 40°C
Length of Wire -------------------- 70cm
Dimension/Weight ---------------- 1-3/4" x 1-21/32" x 23/32" (44 x 42 x 18 mm) / 0.88 oz ( 25 g)
*The specifications and design are subject to change without notice.
Start/Stop of Measuring
Spd
The unit starts measuring automatically when you
Current Speed
start your bicycle, and stops measuring when your
0.0(4.0) to 100 km/h
bicycle stops.
[0.0(3.0) to 60 mph]
Shift of Display
Cal
Reset
By every press of Main Button the display changes
Calorie
as in fig. 4.
1
Consumption*
Power Saving Function
0.0 to 9999.9 kcal
(estimated from speed data)
When the main unit does not receive a signal for
approximately 1 to 2 hours, it falls into Power Sav-
Odo
ing mode. When you press Main Button, or when
Total Distance
you start your bicycle again, the main unit wakes up
0.0 to 9999.9 km [mile]
and the screen returns normal.
Mx
Reset
Maximum Speed
0.0 to 100 km/h
[0.0 to 60 mph]
Dst
Reset
Trip Distance
0.00 to 999.99
km [mile]
How to Change Tire Size
In the Total Distance (Odo) mode, press SET button (fig. 5).
The tire size is flashing. Press Main Button to change it, and push SET Button to
fix. The screen returns to the normal measuring display.
Fig. 5
Replace it with a new one.
Do all clear operation.
Replace the bracket/sensor set with a new one.
Re-adjust the positions of the magnet and the sensor. (The clearance should be less than
3mm.)
Clean the contact with a cloth.
Wipe water/dirt off of the contact of the bracket and apply water-repellent agent (silicon grease)
which is available at DIY shops. Do not apply general grease for machinery; it may cause dam-
age on the bracket.
Replacing Battery (fig.6)
If the screen gets dim, it is the time to replace the battery.
*Insert a new lithium battery (CR2032) with the (+) mark facing up.
All Clear Operation
Press SET Button with a pen while pushing Main Button (fig. 7). All the memory
(total distance, speed scale and tire size) are erased, and the display shows the
speed scale setting mode. Perform this operation after replacing the battery or
when incorrect data appears on the screen.
(*The life of the factory-loaded battery might be shorter than this.)
Data Reset
The reset symbol
shown in the
Reset
fig. 4 means that the recorded data of
these functions can be reset to zero.
Hold down Main Button to reset. The
data of Total Distance cannot be reset.
