Technical data:
Helix 70
frequency
430-440
gain (rhcp)
turns
SWR
power rating
connector
N-jack
mastdiameter max.
Length
reflector diameter
weight
Windload
Material
AlMgSi 0,5,
Order-No.
18020
Assembly
•

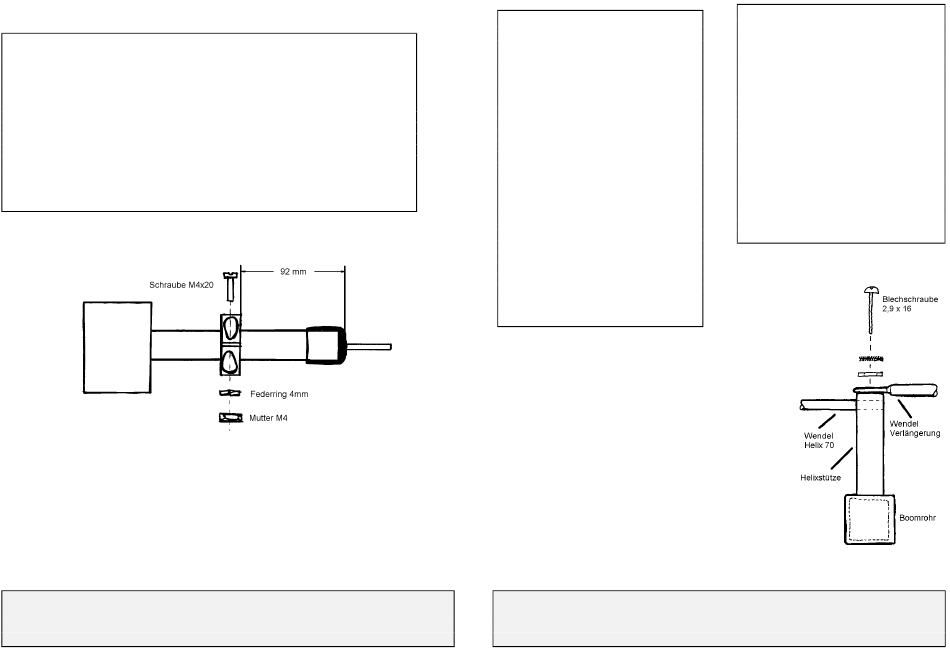

Preassembly of matching unit: add ring with screw M4x20, lock washer and nut M4. Distance to front
end of plastic cap is 92mm, see picture above.
•
Mount the matching unit into reflector plate using screws M4x20, nuts and lock washers. Put a nut
M3 on the bolt coming out of the matching unit.
•
Put 2 small fastening angles on the backside of the reflector plate using screws M4x10, nuts and
lockwashers. Do not tighten the screws yet.
•
Feed the reflector plate on the boom. While feeding the bolt of the matching unit through the end of
the coil, the reflector plate is mounted with a screw M4x35 and 2 screws M4x10.
•
Use a lockwasher and a nut M3 to fix the end of the coil.
•
Put mast plate with bolts and blocks and m6 screws between reflector plate and struts of reflector
plate.
WiMo Antennen und Elektronik GmbH
Am Gäxwald 14, D-76863 Herxheim Tel. (07276) 9668-0 FAX: 9668-11
e-mail: info@wimo.com
Helix 70-2
430-440
MHz
9,5
12,5
dBD
7
14
1,5
1,5
1000
1000
Watt
N-jack
50
50
mm
1,5
2,7
m
45
45
cm
2,5
4,5
Kg
125
225
N
Schrauben V2A
18021
http://www.wimo.com
Partlist Helix 70:
Boom with coil
1 pc
Reflectorplate
1 pc
matching unit with ring
1 pc
struts for Reflectorplate
2 pcs
Mastplate
1 pc
Bag of screws:
fastening angle Alu 20x20
2 pcs
Screw M4x30
1 pc
Screw M6x12
2 pcs
Screw M4x35 DIN 84
1 pc
Screw M4x20
3 pcs
Screw M4x10
4 pcs
Nut M4
9 pcs
Nut M3
2 pcs
washer DIN 9021 6mm
2 pcs
lock washer 4mm
9 pcs
lock washer 3mm
1 pc
U-bolt 50mm
2 pcs
block 50mm
2 pcs
lock nut M8
4 pcs
washer M8 small
4 pcs
screw M6*35
2pcs
lock nut M6
2 pcs
washer 6mm small
2 pcs
Assembly of extension
•
Screw the 2 boom together with a boom joint.
To get the boom joint mounted on the antenna side,
the coil has to be taken out of the stand-off. Loosen the
screw and pull the coil carefully out. Then feed the
boom joint to the boom, use screws M4x35 to fix.
•
Push the coil back into the stand-off.
•
The beginning of the second coil is centered on the
stand off and fixed with the self tapping screw 2,9x16
and a lock washer. Take care not to overtigten, some
oil can be helpful.
WiMo Antennen und Elektronik GmbH
Am Gäxwald 14, D-76863 Herxheim Tel. (07276) 9668-0 FAX: 9668-11
e-mail: info@wimo.com
Add. Parts for Helix 70-2 (extension)
Boom with coill
1 pc
support tube 20x20x1500mm
1 pc
support PVC
2 pcs
T-Clamps
4 pair
Boom joint
1 pair
Bag of screws:
screw M4x35
2 pcs
screw M5x35
4 pcs
washer 4mm DIN 9021
4 pcs
self tapping screw 2,9x16
1 pc
lock washer 4mm
2 pcs
lock washer 3mm
1 pc
nut M4
2 pcs
washer 3mm
1 pc
washer 5mm DIN 125
4 pcs
