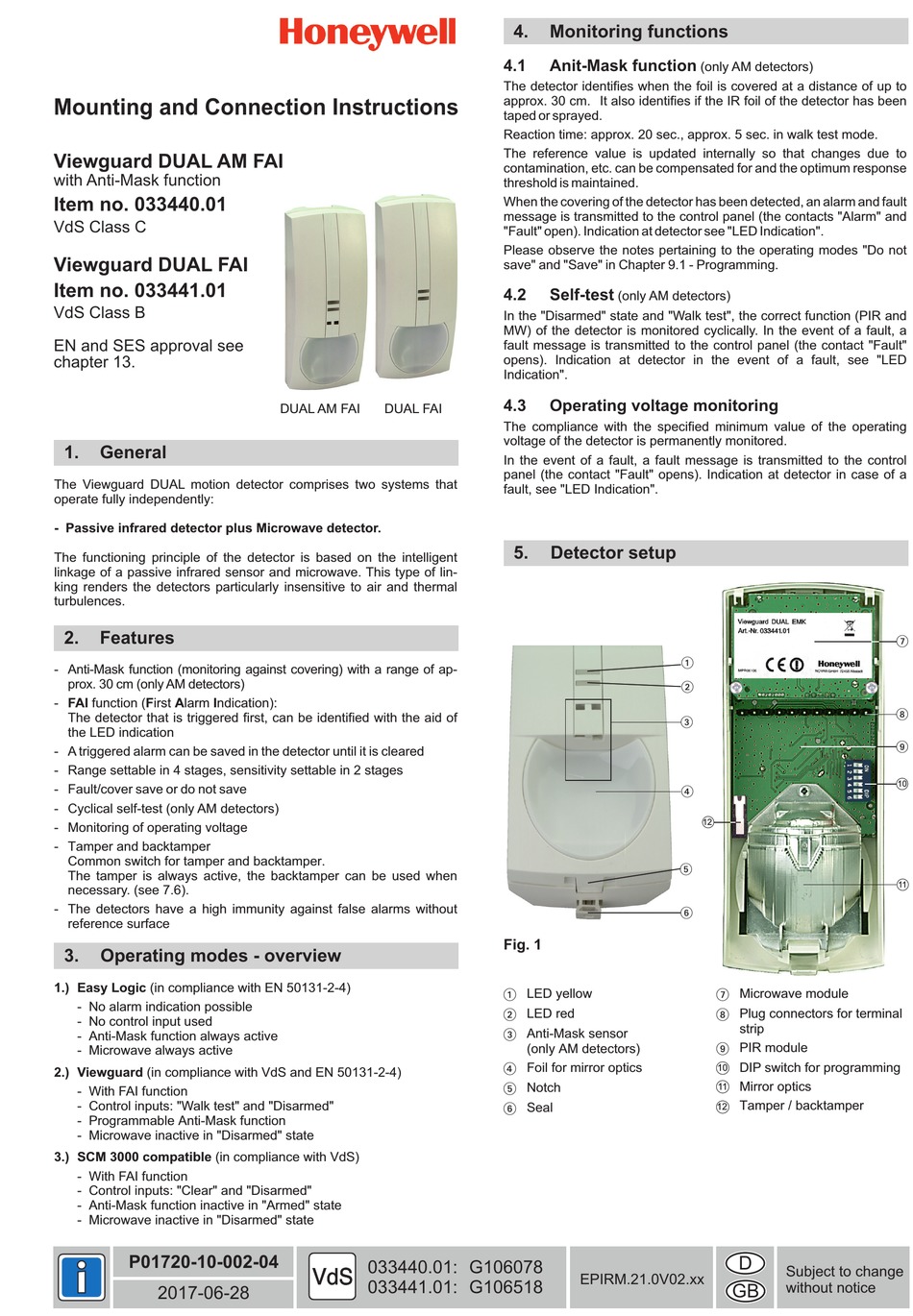

Mounting and Connection Instructions
Viewguard DUAL AM FAI
with Anti-Mask function
Item no. 033440.01
VdS Class C
Viewguard DUAL FAI
Item no. 033441.01
VdS Class B
EN and SES approval see
chapter 13.
1. General
The Viewguard DUAL motion detector comprises two systems that
operate fully independently:
- Passive infrared detector plus Microwave detector.
The functioning principle of the detector is based on the intelligent
linkage of a passive infrared sensor and microwave. This type of lin-
king renders the detectors particularly insensitive to air and thermal
turbulences.
2. Features
- Anti-Mask function (monitoring against covering) with a range of ap-
prox. 30 cm (only AM detectors)
- FAI function ( irst larm ndication): F A I
The detector that is triggered first, can be identified with the aid of
the LED indication
- A triggered alarm can be saved in the detector until it is cleared
- Range settable in 4 stages, sensitivity settable in 2 stages
- Fault/cover save or do not save
- Cyclical self-test (only AM detectors)
- Monitoring of operating voltage
- Tamper and backtamper
Common switch for tamper and backtamper.
The tamper is always active, the backtamper can be used when
necessary. (see 7.6).
- The detectors have a high immunity against false alarms without
reference surface
3. Operating modes - overview
1.) Easy Logic (in compliance with EN 50131-2-4)
- No alarm indication possible
- No control input used
- Anti-Mask function always active
- Microwave always active
2.) Viewguard (in compliance with VdS and EN 50131-2-4)
- With FAI function
- Control inputs: "Walk test" and "Disarmed"
- Programmable Anti-Mask function
- Microwave inactive in "Disarmed" state
3.) SCM 3000 compatible (in compliance with VdS)
- With FAI function
- Control inputs: "Clear" and "Disarmed"
- Anti-Mask function inactive in "Armed" state
- Microwave inactive in "Disarmed" state
P01720-10-002-04
2017-06-28
DUAL AM FAI DUAL FAI
033440.01: G106078
033441.01: G106518
4. Monitoring functions
4.1 Anit-Mask function
The detector identifies when the foil is covered at a distance of up to
approx. 30 cm. It also identifies if the IR foil of the detector has been
taped or sprayed.
Reaction time: approx. 20 sec., approx. 5 sec. in walk test mode.
The reference value is updated internally so that changes due to
contamination, etc. can be compensated for and the optimum response
threshold is maintained.
When the covering of the detector has been detected, an alarm and fault
message is transmitted to the control panel (the contacts "Alarm" and
"Fault" open). Indication at detector see "LED Indication".
Please observe the notes pertaining to the operating modes "Do not
save" and "Save" in Chapter 9.1 - Programming.
4.2 Self-test
(only AM detectors)
In the "Disarmed" state and "Walk test", the correct function (PIR and
MW) of the detector is monitored cyclically. In the event of a fault, a
fault message is transmitted to the control panel (the contact "Fault"
opens). Indication at detector in the event of a fault, see "LED
Indication".
4.3 Operating voltage monitoring
The compliance with the specified minimum value of the operating
voltage of the detector is permanently monitored.
In the event of a fault, a fault message is transmitted to the control
panel (the contact "Fault" opens). Indication at detector in case of a
fault, see "LED Indication".
5. Detector setup
Fig. 1
1
LED yellow
2
LED red
3
Anti-Mask sensor
(only AM detectors)
4
Foil for mirror optics
5
Notch
6
Seal
EPIRM.21.0V02.xx
(only AM detectors)
.01
1
2
3
4
12
5
6
7
Microwave module
8
Plug connectors for terminal
strip
9
PIR module
DIP switch for programming
10
Mirror optics
11
T amper backtamper /
12
D
Subject to change
without notice
GB
7
8
9
10
11
