Omnimount CI100FM Bedienungsanleitung Seite 5

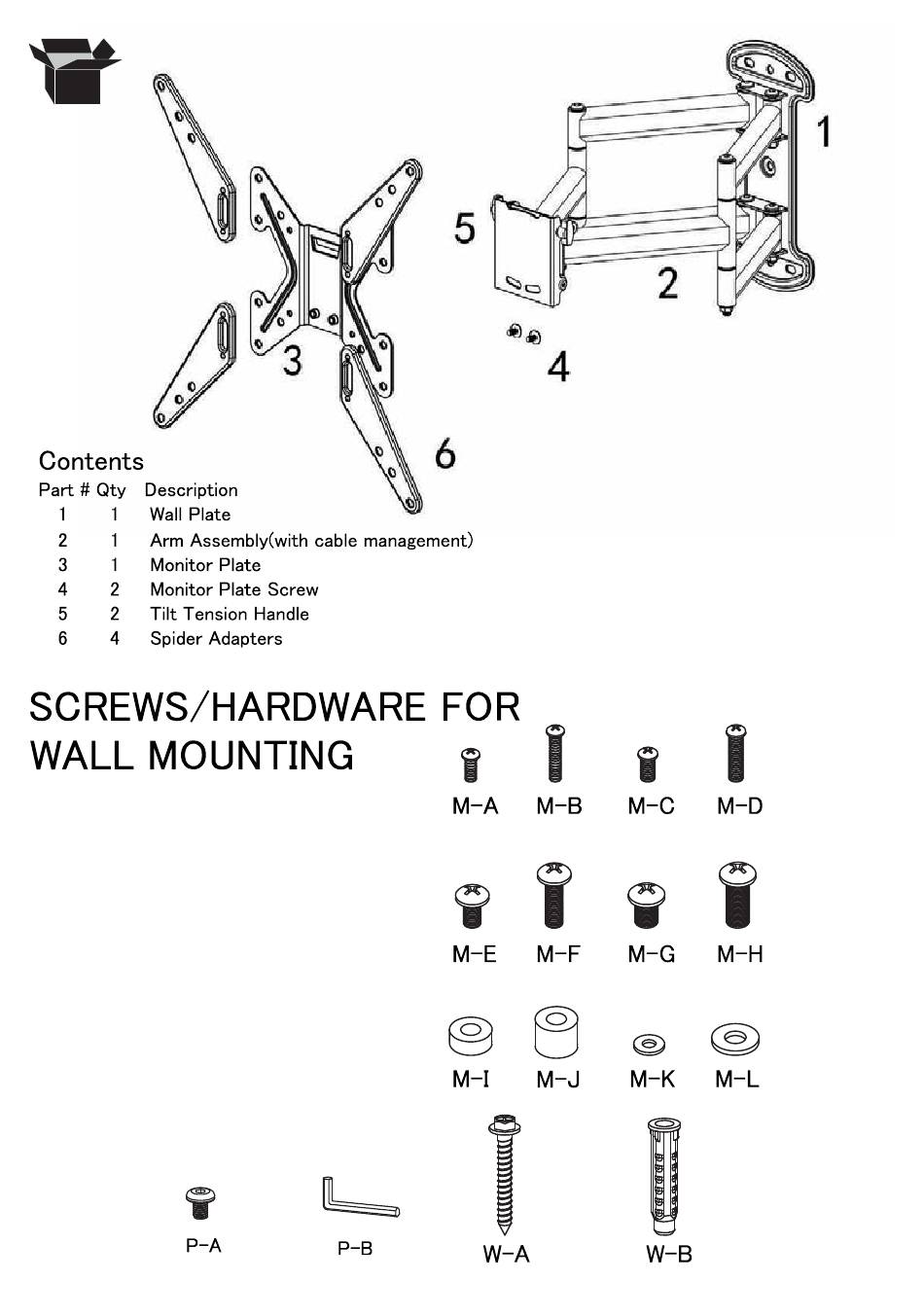

4x 4x 4x 4x
M4x15mm M4x30mm M5x15mm M5x30mm
4x 4x 4x 4x
M6x15mm M6x30mm M8x15mm M8x30mm
4x 4x
4x 4x
M6-M8x5mm M6-M8x10mm M4-M5 Washer M6-M8 Washer
8x 1x
3x 3x
Carraige Bolt Alley Key Lag Bolt Wall Anchor
888-61-172-W-00 rev. A • 04/15 5 of 15
