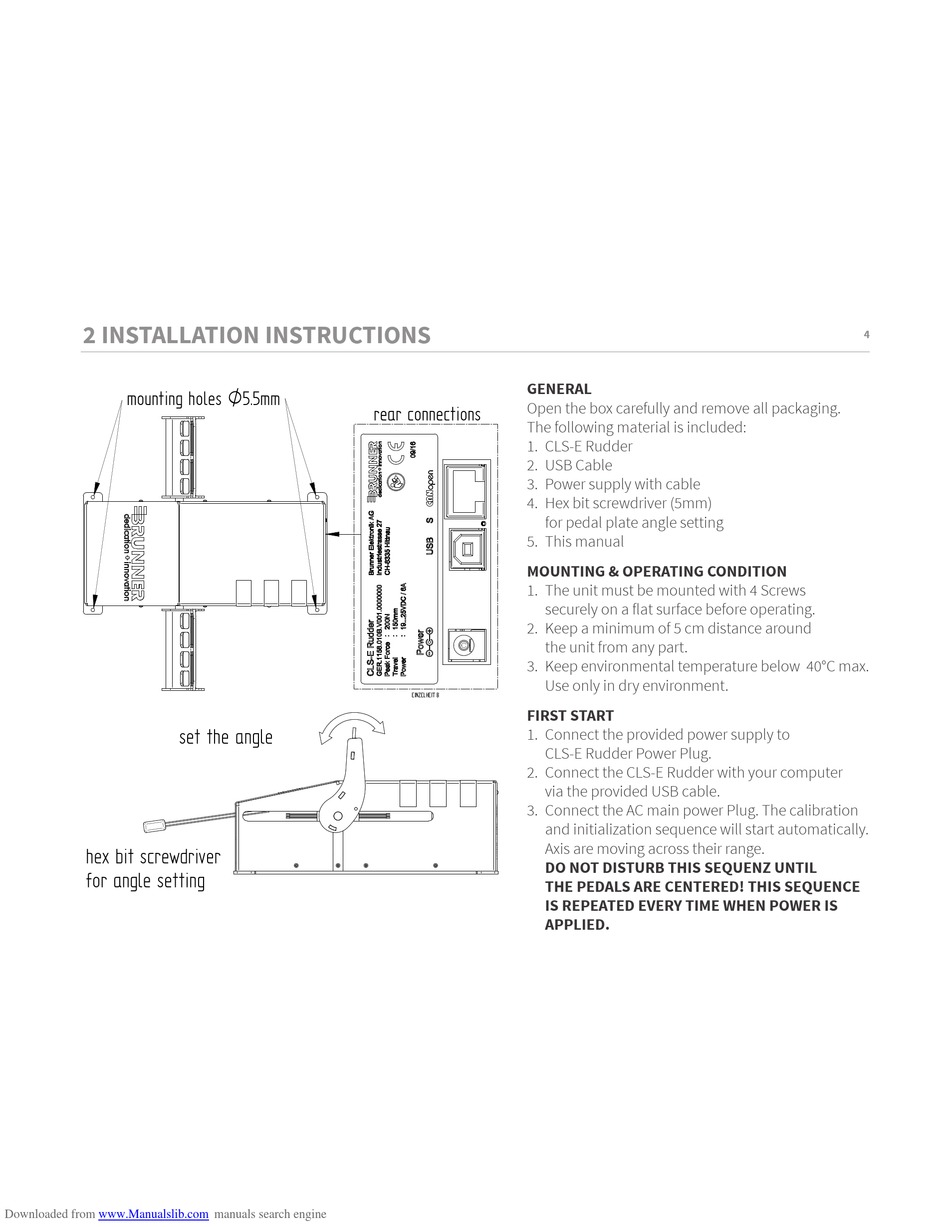

2 INSTALLATION INSTRUCTIONS

mounting holes O 5.5mm
set the angle
hex bit screwdriver
for angle setting
Downloaded from www.Manualslib.com
rear connections
manuals search engine
GENERAL
Open the box carefully and remove all packaging.
The following material is included:
1. CLS-E Rudder
2. USB Cable
3. Power supply with cable
4. Hex bit screwdriver (5mm)
for pedal plate angle setting
5. This manual
MOUNTING & OPERATING CONDITION
1. The unit must be mounted with 4 Screws
securely on a flat surface before operating.
2. Keep a minimum of 5 cm distance around
the unit from any part.
3. Keep environmental temperature below 40°C max.
Use only in dry environment.
EINZELHEIT B
FIRST START
1. Connect the provided power supply to
CLS-E Rudder Power Plug.
2. Connect the CLS-E Rudder with your computer
via the provided USB cable.
3. Connect the AC main power Plug. The calibration
and initialization sequence will start automatically.
Axis are moving across their range.
DO NOT DISTURB THIS SEQUENZ UNTIL
THE PEDALS ARE CENTERED! THIS SEQUENCE
IS REPEATED EVERY TIME WHEN POWER IS
APPLIED.
