7. Tension Adjustment

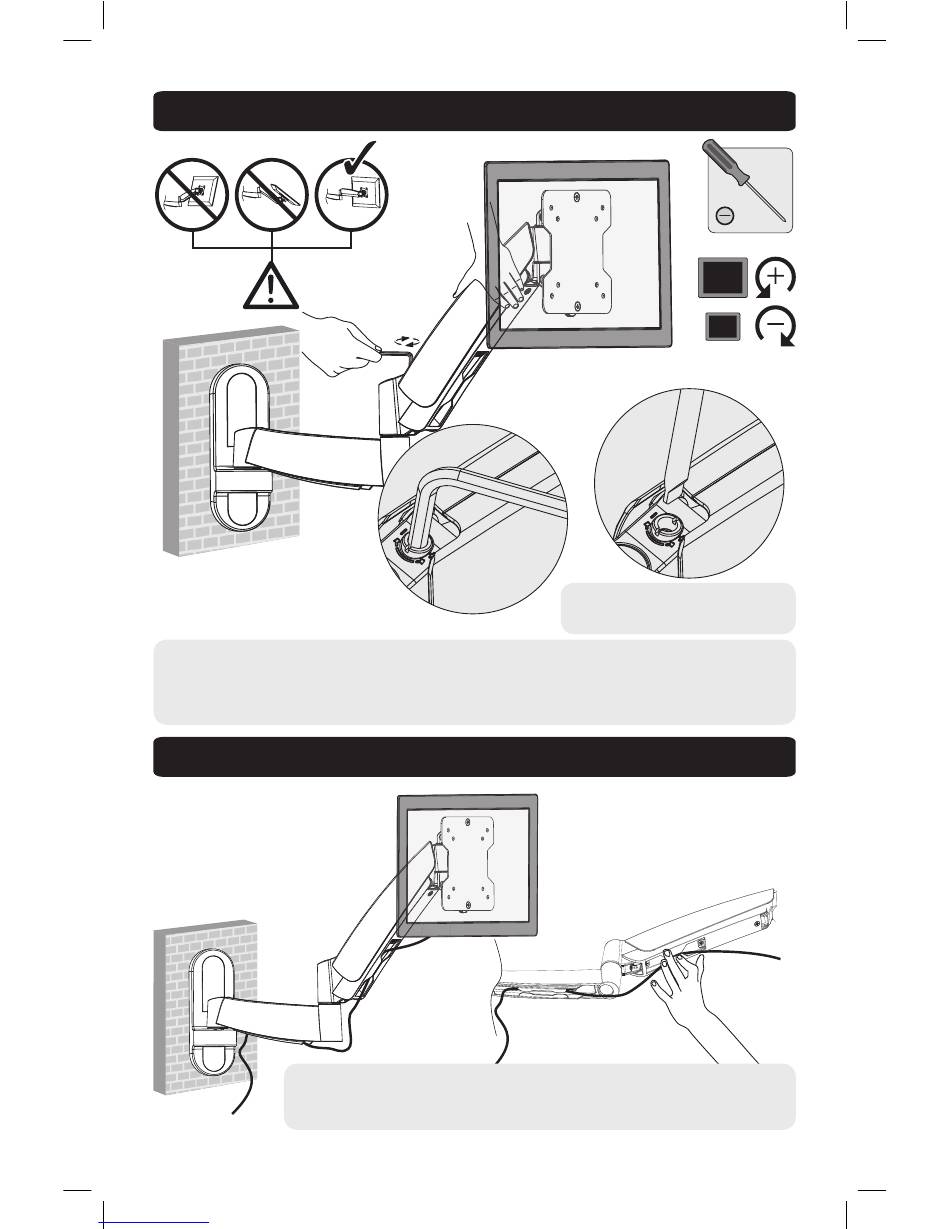

Please keep the arm level during tension adjustment. Use a proper Allen key to slightly loosen or tighten the
adjustment screw according to the display weight.
If display settles on its own, rotate adjustment screw towards the "+" symbol.
If display rises on its own, rotate adjustment screw towards the "-" symbol.

8. Cable Management

13-08-142-933298.indb 10
Downloaded from www.Manualslib.com
Connect the cables to the display, and press cable cover inward to route the cables
through the space.
Note: Leave slack in cable for cantilever arm movement.
manuals search engine
6mm
Allen Key
Please tighten socket set screw if the
joints make popping sounds in use.
