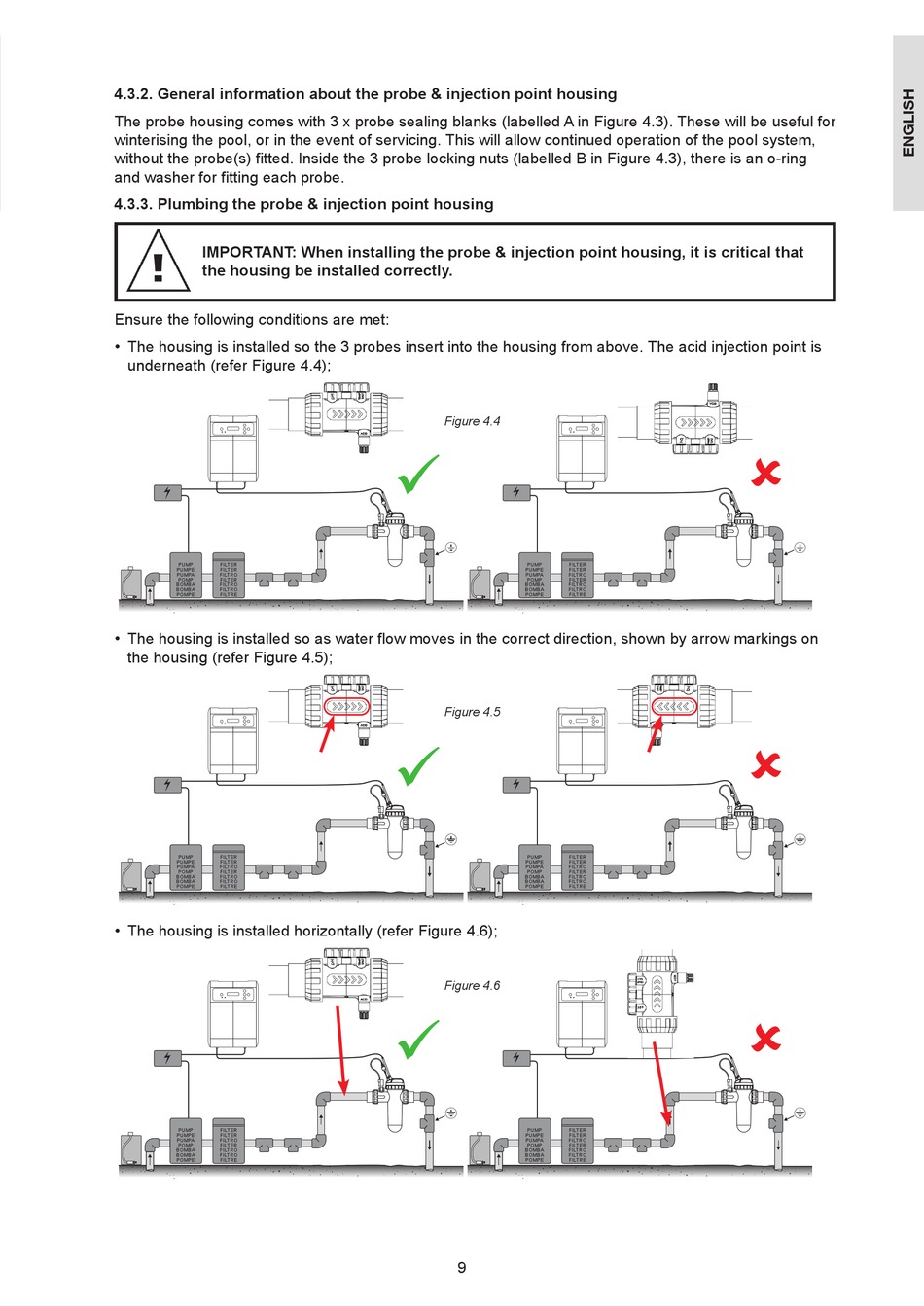

4.3.2. General information about the probe & injection point housing
The probe housing comes with 3 x probe sealing blanks (labelled A in Figure 4.3). These will be useful for
winterising the pool, or in the event of servicing. This will allow continued operation of the pool system,
without the probe(s) fitted. Inside the 3 probe locking nuts (labelled B in Figure 4.3), there is an o-ring
and washer for fitting each probe.
4.3.3. Plumbing the probe & injection point housing
IMPORTANT: When installing the probe & injection point housing, it is critical that
the housing be installed correctly.
Ensure the following conditions are met:
• The housing is installed so the 3 probes insert into the housing from above. The acid injection point is
underneath (refer Figure 4.4);
