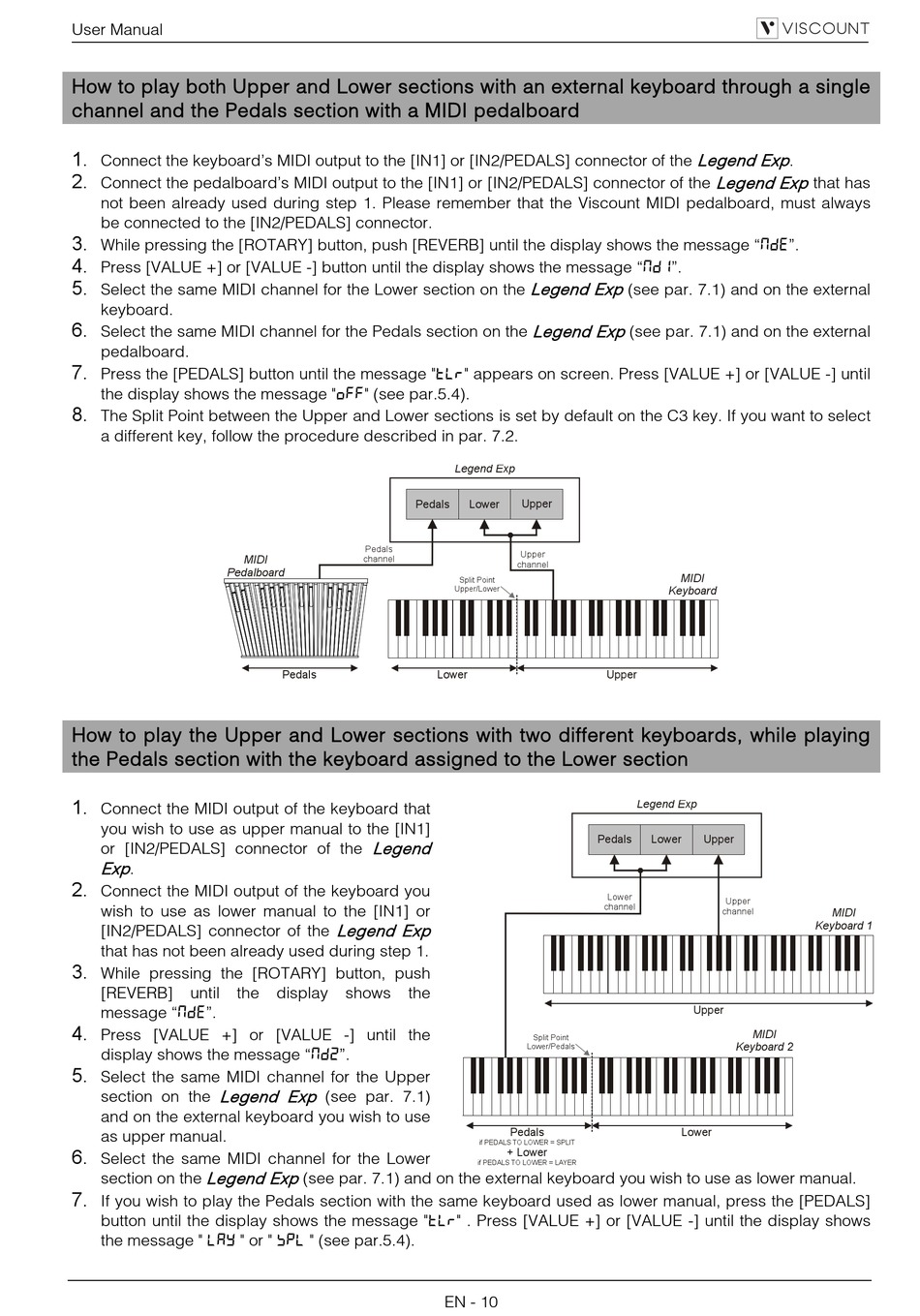

How to play both Upper and Lower sections with an external keyboard through a single
channel and the Pedals section with a MIDI pedalboard
1.
Connect the keyboard's MIDI output to the [IN1] or [IN2/PEDALS] connector of the
2.
Connect the pedalboard's MIDI output to the [IN1] or [IN2/PEDALS] connector of the
not been already used during step 1. Please remember that the Viscount MIDI pedalboard, must always
be connected to the [IN2/PEDALS] connector.
3.
While pressing the [ROTARY] button, push [REVERB] until the display shows the message "MdE".
4.
Press [VALUE +] or [VALUE -] button until the display shows the message "Md1".
5.
Select the same MIDI channel for the Lower section on the
keyboard.
6.
Select the same MIDI channel for the Pedals section on the
pedalboard.
7.
Press the [PEDALS] button until the message "tLr" appears on screen. Press [VALUE +] or [VALUE -] until
the display shows the message "off" (see par.5.4).
8.
The Split Point between the Upper and Lower sections is set by default on the C3 key. If you want to select
a different key, follow the procedure described in par. 7.2.
