The applications Legend Editor and Viscount Legend Update can be downloaded from www.viscountinstruments.com.
5. [MIDI] connectors.
-
[ IN1]: input port, to be connected to an external MIDI unit used to play
1 1 1 B
to the MIDI OUT port of a transmitting device (e.g. a sequencer).
1 1 2 B
NB
Always use the [IN2/PEDALS] connector with the optional Viscount pedalboard.
-
[ OUT/THRU]: these MIDI data connectors transmit the MIDI data generated by the
1 1 3 B
Soft Thru function is active (see par.7.4), this connector transmits the data received from the [IN1],
[IN2/PEDALS] and [USB TO HOST] ports. This function can be used to connect multiple MIDI devices
(e.g. to connect a MIDI keyboard to the
Connect this port to the MIDI input of the receiving device.
-
[ IN2/PEDALS]: input port, to be connected to an external MIDI unit used to play
1 1 4 B
connect the optional Viscount pedalboard or any other MIDI pedalboard.
For more information about the
6. [AUDIO] jack connectors.
-
[ PEDALS]: this line output only transmits the signal from the Pedals section. To enable this output
1 1 7 B
activate the PEDALS DIRECT function as described in par. 5.4. When the function is deactivated, the
signal form the Pedals section is transmitted through the other outputs instead, and the [PEDALS] output
is disabled.
-
[ PHONES]: stereo output for connecting a set of headphones. The port sends out the instrument's
1 1 8 B
general signal.
-
[ LEFT] e [RIGHT]: line outputs; use to connect the instrument to external audio devices (amplified
1 1 9 B
speakers, mixers, amplifiers); they transmit the instrument's general signal.
When used with stereo systems, connect the [LEFT] output to the left channel and the [RIGHT] output to
the right channel. When using a monophonic system, any of the two outputs ([LEFT] or [RIGHT]) can be
connected indistinctly; however, doing so will make it impossible to hear the stereophonic effect
generated by the Rotary simulation: it is only possible to hear the connected audio channel. Therefore
this is not recommended.
WARNINGS ON THE USE OF SPEAKERS
-
Always perform the connection while both instrument and speakers are switched off. Then first switch on the
instrument and later the speakers.
-

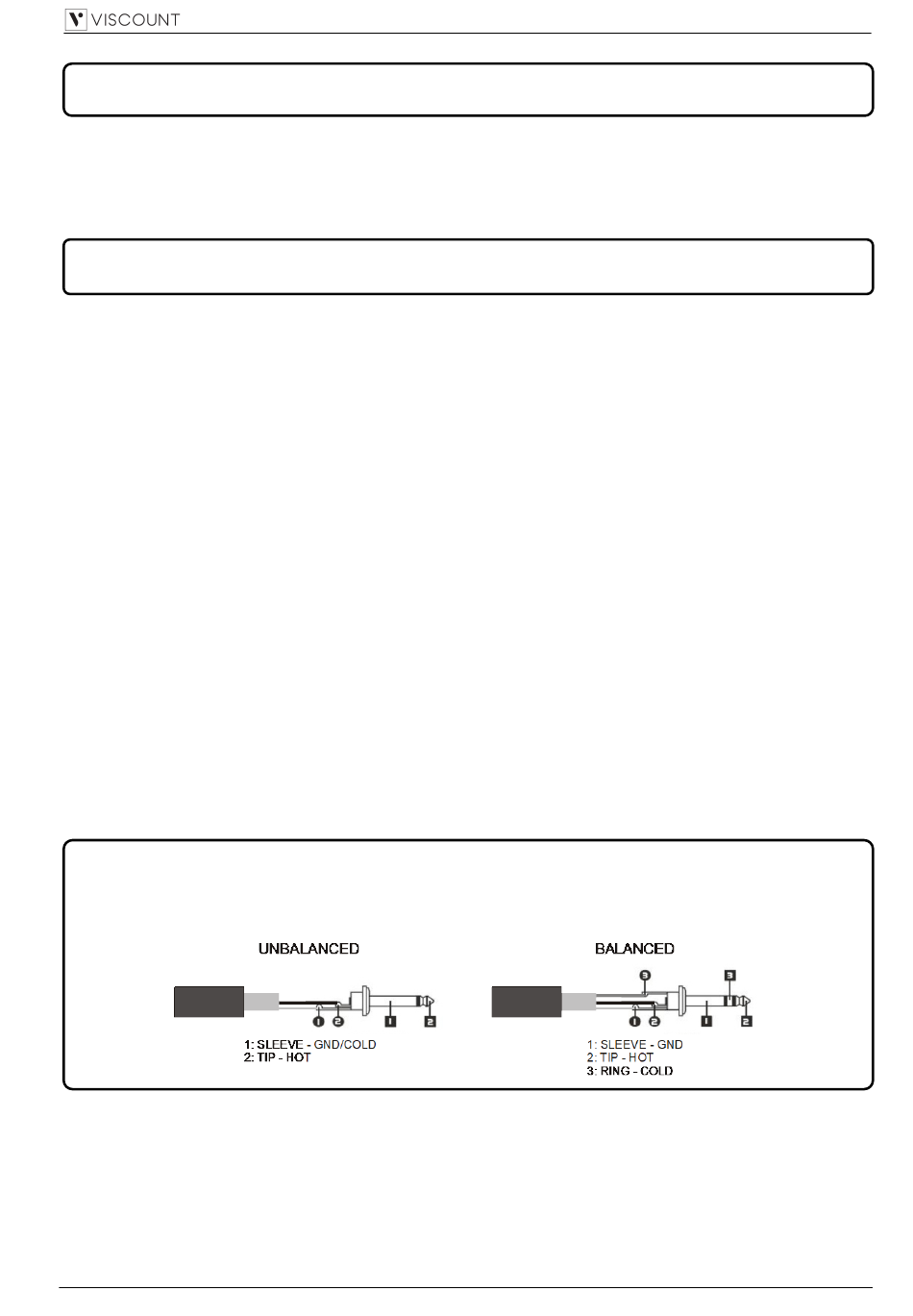

The use of balanced cables is recommended for connecting the [LEFT], [RIGHT] and [PEDALS]
Legend Exp
Legend Exp
MIDI interface, refer to par. 6.2 and MIDI Informations.
1 2 1 B
EN - 7
Legend Exp
and send the signal to an external expander).
User Manual
. Connect this port
Legend Exp
. If the
Legend Exp
and to
