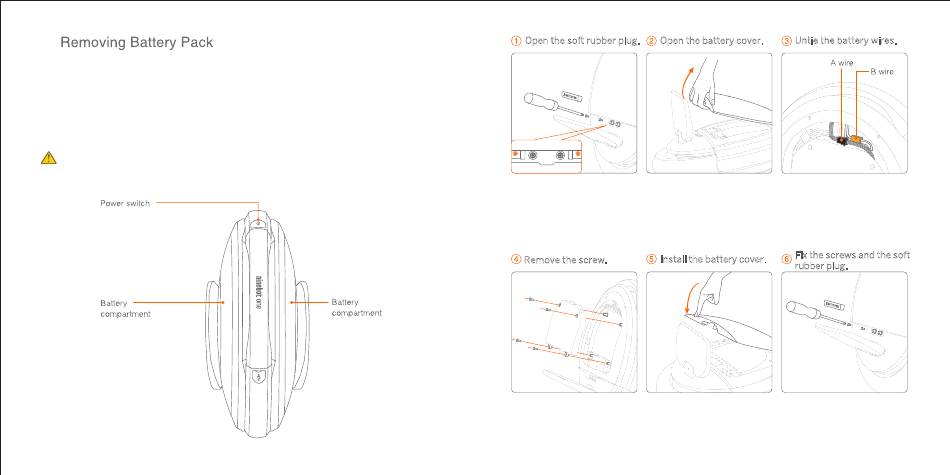

The standard Ninebot One S2(with a capacity of 310 Wh) has two battery packs, one on either side. You
can remove one battery pack to limit speed and mileage, and reduce the weight of the Ninebot One S2.
Removing one pack limits the speed to 18km/h, the mileage to around 15km, and the weight of the
vehicle to about 11.5kg.
(Mileage will vary with the user' s weight, temperature, road conditions, and so on. )
Removing a battery pack can be dangerous. Turn to our after-sales service or your distributor and do
not attempt to remove the battery back by yourself.
14
Open the soft rubber plug. Open the battery cover.
After powering off the vehicle, As shown in the figure, use your
open the soft rubber plug on the finger to open the battery cover
from the bottom up using the gap
left side of the vehicle (as shown
in the figure, above the pedal), in the middle. Use a screwdriver
and unscrew the Philip's screw if necessary.
on both sides.
Install the battery cover.
Remove the screw.
When unscrewing the four screws As shown in the figure, push the
in the four corners of the battery, top snap into place first, and then
do not press too hard because press the housing.
you may damage the battery.
Untie the battery wires.
Release the black Awire first, and
then release the yellow B wire. To
do so, pull the plug firmly, but
don`t pull on the wire directly or
you may damage it.
Fix the screws and the soft
rubber plug.
Tighten the screws, and install
the soft rubber plug.
