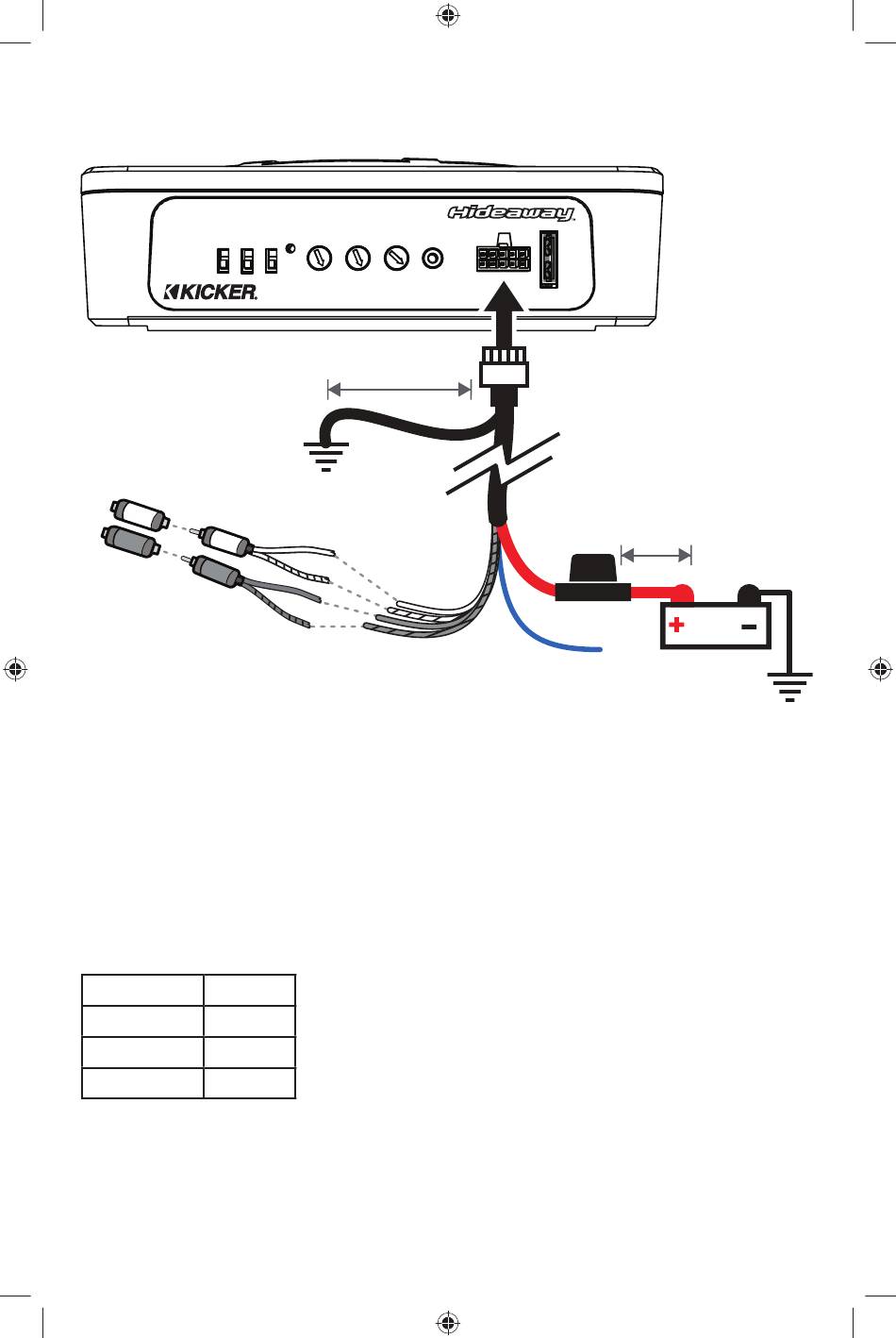

Wiring:
AUTO
TURN
ON
+12V
DC
KICKER KISL
(sold separately)
Observe the polarity of input connections to avoid signal loss.
Use the KICKER KISL for source units with RCA outputs or splice the quick-connect
harness leads directly to your source unit's speaker-level outputs.
Do not use a Line Output Converter with the HS10.
quick-connect wiring
harness audio inputs:
White Left +
White/Black Left –
Grey Right +
Grey/Black Right –
4
2019 Hideaway Rev E.indd 4 2019 Hideaway Rev E.indd 4
BASS X-OVER
PWR/
INPUT
BOOST FREQ GAIN
PRT
LEVEL PHASE
HI 0°
LO 180°
0 6 50 120 0 11
≤ 24" [60cm]
bare metal
chassis ground
Hideaway™
46HS10 15A
REMOTE
BASS
+
-
L R GND REM +12V
quick-connect
wiring harness
15A fuse
≤18" [45cm] from positive
battery terminal
remote turn-on
see next page
12V
battery
bare metal
chassis ground
