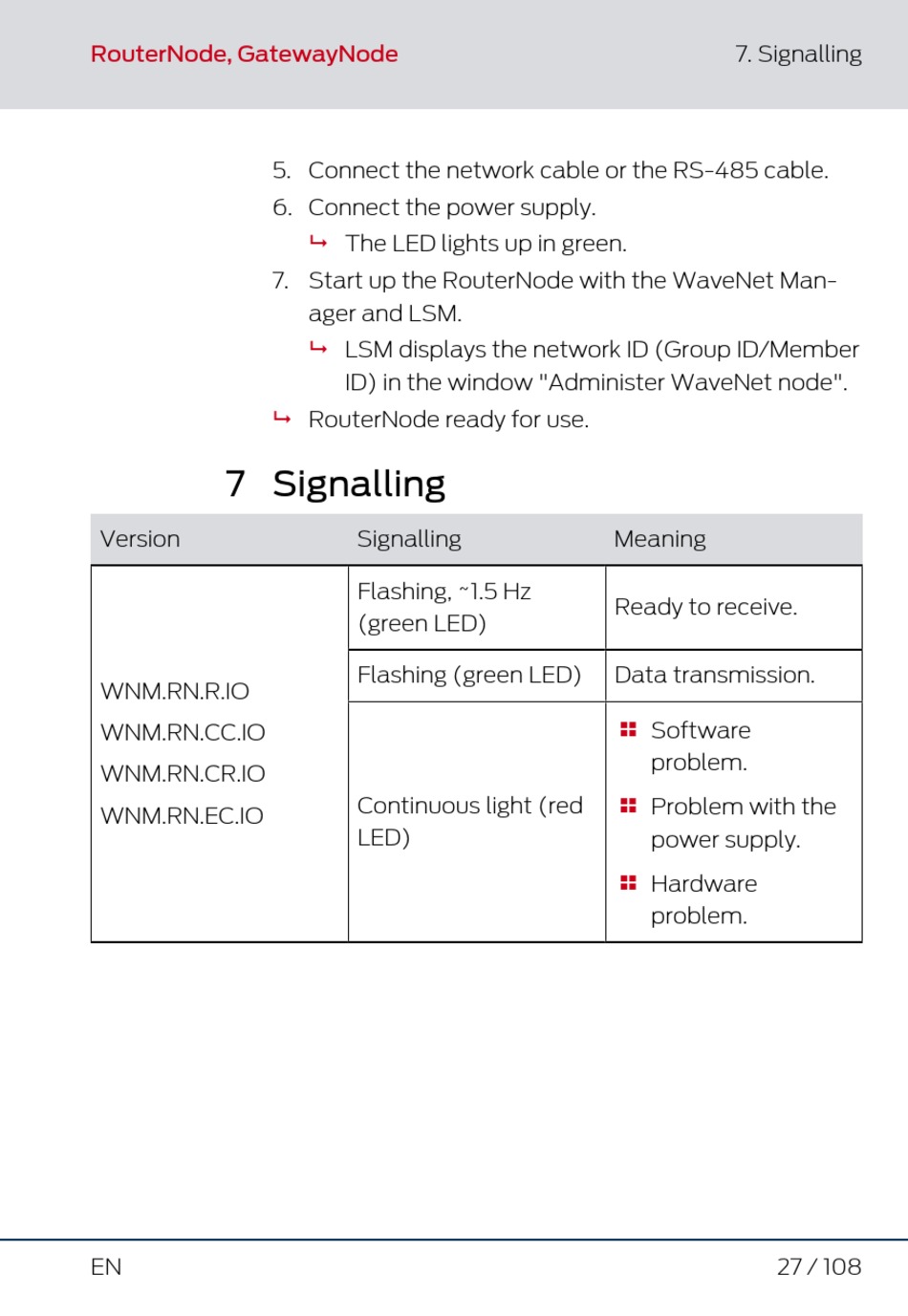

Signalling - Simons Voss Technologies RouterNode Kurzanleitung

RouterNode, GatewayNode

7 Signalling

Version
WNM.RN.R.IO
WNM.RN.CC.IO
WNM.RN.CR.IO
WNM.RN.EC.IO
EN
5. Connect the network cable or the RS-485 cable.
6. Connect the power supply.
9 The LED lights up in green.
7. Start up the RouterNode with the WaveNet Man-
ager and LSM.
LSM displays the network ID (Group ID/Member
9
ID) in the window "Administer WaveNet node".
9 RouterNode ready for use.
Signalling
Flashing, ~1.5 Hz
(green LED)
Flashing (green LED)
Continuous light (red
LED)
7. Signalling
Meaning
Ready to receive.
Data transmission.
Software

problem.
Problem with the

power supply.
Hardware

problem.
27 / 108
