5. Connections

5 Connections

6 Initial operation

26 / 108

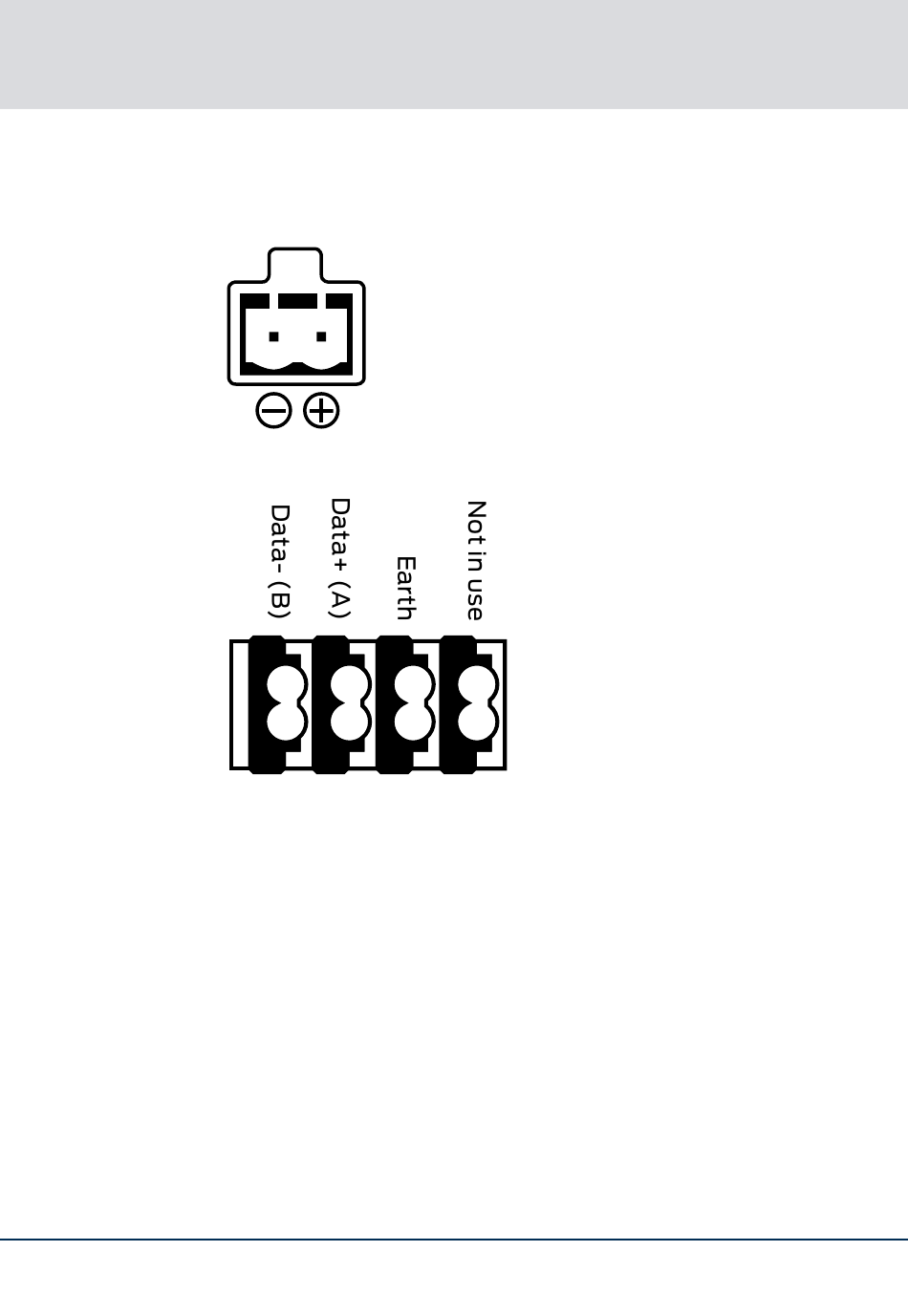

Power supply:
RS-485:
Versions with RS-485 connection have an internal DIP
switch. Both DIP switches are in the ON position in the
factory version.
1. Unpack the RouterNode.
2. Check the RouterNode for damage.
3. Screw the antenna onto the FME socket (wireless
versions only).
4. Make sure that the power supply complies with the
technical data (see
[ 28]
).
}
RouterNode, GatewayNode
Incoming line
Outgoing line
Technical specifications
EN
