7-CHANNEL 2 X 150W MIXING AMPLIFIER

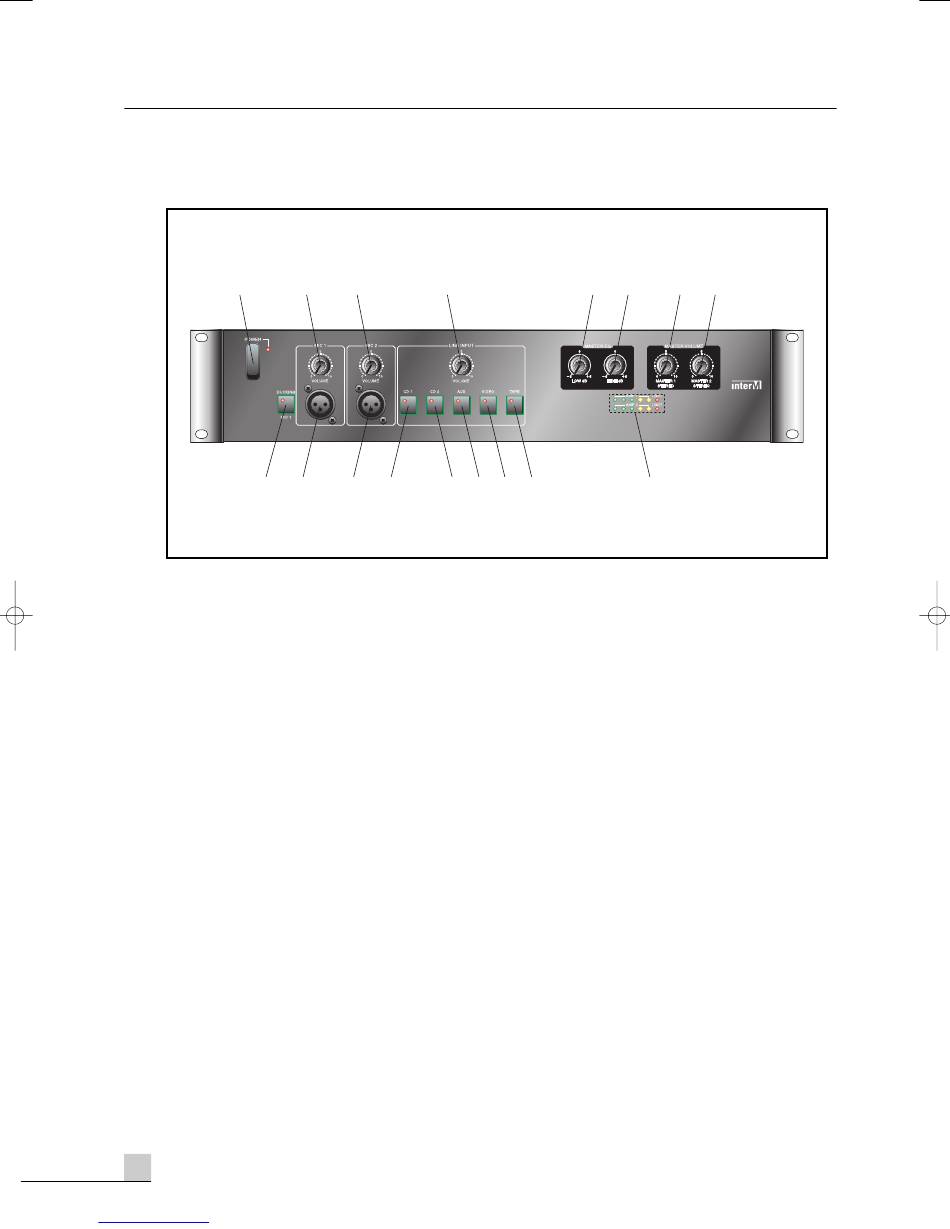

Front Panel

Front Panel
1. MAIN POWER SWITCH
2. VOLUME CONTROL FOR MICROPHONE 1
3. VOLUME CONTROL FOR MICROPHONE 2
4. VOLUME CONTROL FOR LINE SIGNAL
5. BASS EQ CONTROL
6. TREBLE EQ CONTROL
7. MASTER 1 VOLUME CONTROL
8. MASTER 2 VOLUME CONTROL
9. DUCKING SWITCH BUTTON
4
EMI-300
Downloaded from www.Manualslib.com
1 2 3
9 10 11
Controls the volume of the selected line input
Affects all signals
Affects all signals
Use this control to adjust the overall output level of the internal power amplifiers in stereo mode(see page
8). In mono mode (see page 8), it controls the volume of the speakers connected to the AMP 1 terminals.
In addition to that, it permanently controls the volume of the MONO SUB OUT output.
Use this control to adjust the volume of the MASTER 2 OUT output. In mono mode (see page 8), it con-
trols the volume of the speakers connected to the AMP 2 terminals.
When the DUCKING function is active, applying a signal to the Microphone 1 input automatically atten-
uates the Line signal to background level.
