7-CHANNEL 2 X 150W MIXING AMPLIFIER

Insert Jacks

Insert Jacks
The two insert jacks (24) are electronically located before the power amplifier inputs. Inserting a 1/4" TRS
The two insert jacks (25) are electronically located before the power amplifier inputs. Inserting a 1/4" TRS
plug makes the signal available at the plug contacts and allows serial connection of external sound processor
plug makes the signal available at the plug contacts and allows serial connection of external sound processor
devices (see illustration below).
devices (see illustration below).
The XLR outputs (20) and (21) are not affected by the insert jacks. The table on the right shows how the two
The XLR outputs (21) and (22) are not affected by the insert jacks. The table on the right shows how the two
insert jacks work in the different operational modes:
insert jacks work in the different operational modes:

Master 2 Out

Master 2 Out
This output has two balanced XLR connectors and always carries the stereo master signal, no matter what
This output has two balanced XLR connectors and always carries the stereo master signal, no matter what
operational mode you have selected. The level of this output depends on the setting of the MASTER 2 control.
operational mode you have selected. The level of this output depends on the setting of the MASTER 2 con-
If you are operating your EMI-300 in stereo mode, you can use the MASTER 2 output to connect another
trol.If you are operating your EMI-300 in stereo mode, you can use the MASTER 2 output to connect another
power amplifier for increasing your available system power.
power amplifier for increasing your available system power.

Mono Sub Out

Mono Sub Out
This output has one single, balanced XLR connector and always carries a monaural lowpass version of the
This output has one single, balanced XLR connector and always carries a monaural lowpass version of the
master signal, no matter what operational mode you have selected. The level of this output depends on the
master signal, no matter what operational mode you have selected. The level of this output depends on the
setting of the MASTER 1 control. This output can be used to connect an active subwoofer or power amplifier
setting of the MASTER 1 control.This output can be used to connect an active subwoofer or power amplifier
for an enhanced bass reproduction of your sound system.
for an enhanced bass reproduction of your sound system.

REC Out

REC Out
This output has two RCA-type phono connectors and can be used for recording of all line and microphone
signals. This output is not affceted by the setting of the MASTER EQ and MASTER VOLUME controls and
works in every operational mode.
12
EMI-300
Downloaded from www.Manualslib.com

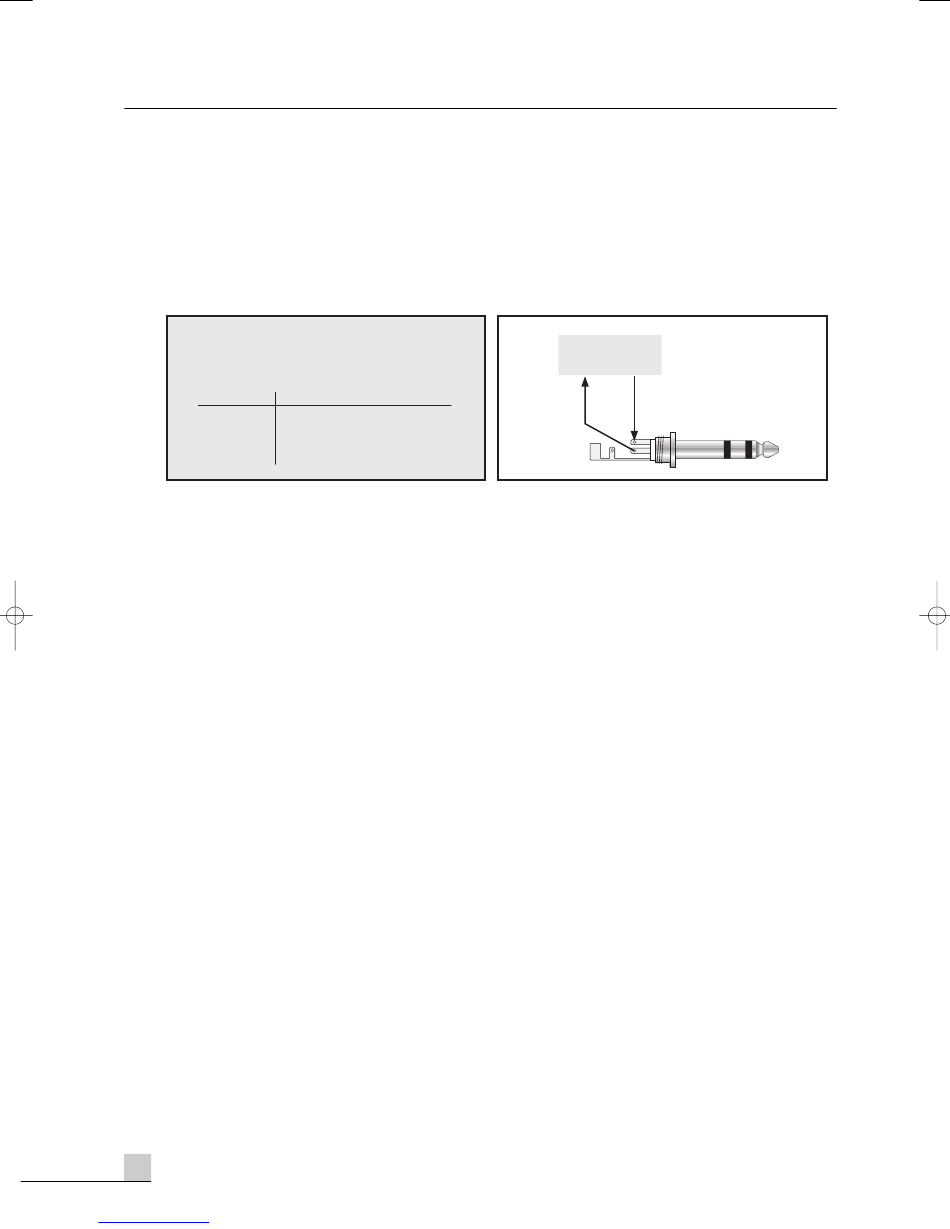

Assignment of insert jacks
Insert jack
Mode upper
Stereo Left
Mono Master 1 Master 2
Bridge no function no function
manuals search engine
External device
Input
lower
Right
Output
Tip Ring
(Send) (Return)
TRS plug
Sleeve Ring Tip
