CONNECTIONS

For installation and connection, be sure to ask the store where you purchased the product.
Before making any connection, switch off all the components of the system.
Carefully read the manuals for the individual devices connected to the Live Switcher.
Use coaxial cable to connect video and genlock signals.

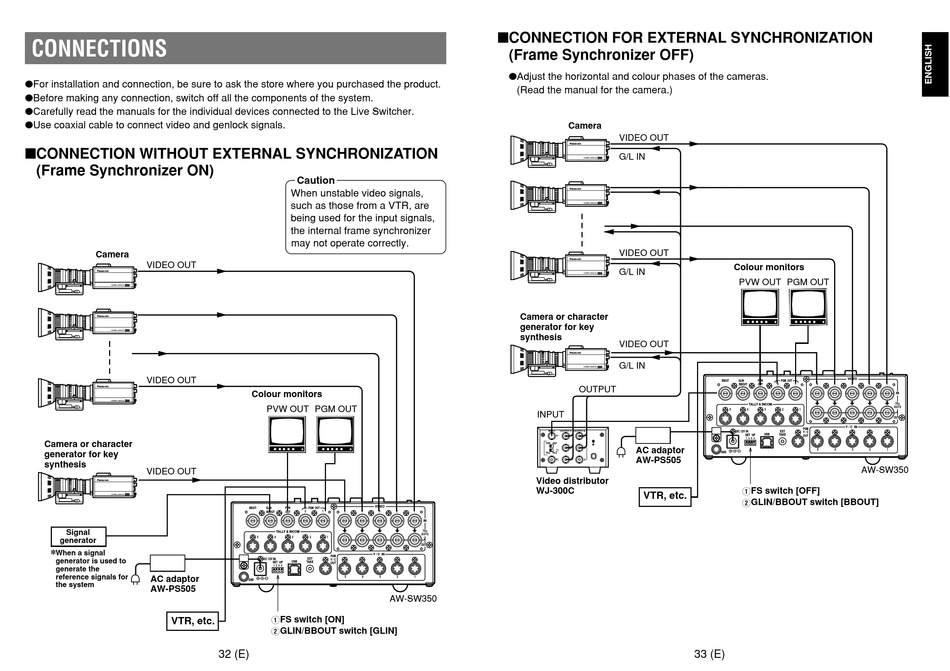

CONNECTION WITHOUT EXTERNAL SYNCHRONIZATION

(Frame Synchronizer ON)
Camera
VIDEO OUT
E600
Convertible Camera AW —
E600
Convertible Camera AW —
VIDEO OUT
E600
Convertible Camera AW —
Camera or character
generator for key
synthesis
VIDEO OUT
E600
Convertible Camera AW —
Signal
generator
When a signal
generator is used to
generate the
reference signals for
AC adaptor
the system
AW-PS505
VTR, etc.
Caution
When unstable video signals,
such as those from a VTR, are
being used for the input signals,
the internal frame synchronizer
may not operate correctly.
Colour monitors
PVW OUT PGM OUT
VIDEO
BBOUT GLIN PVW PGM OUT
/BBOUT OUT 2 1 5 4 3 2
TALLY & INCOM
5 4 3 2 1
Y / C IN
PGM
DC 12V IN EXT
Y / C
USB TAKE
SET UP OUT
1 2 3 4
5 4 3 2
GND
AW-SW350
QFS switch [ON]
WGLIN/BBOUT switch [GLIN]
32 (E)

CONNECTION FOR EXTERNAL SYNCHRONIZATION

(Frame Synchronizer OFF)
Adjust the horizontal and colour phases of the cameras.
(Read the manual for the camera.)
Camera
Convertible Camera AW —
Convertible Camera AW —
Convertible Camera AW —
Camera or character
generator for key
synthesis
Convertible Camera AW —
OUTPUT
INPUT
INPUT OUTPUT A OUTPUT B
A 1 1
THR SEP
2 2
75Ω HI-Z
B 3 3
Video distributor
WJ-300C
1
IN
75Ω
AUTO
OUT
1
VIDEO OUT
G/L IN
E600
E600
VIDEO OUT
Colour monitors
G/L IN
E600
PVW OUT PGM OUT
VIDEO OUT
G/L IN
E600
BBOUT GLIN PVW
2
/BBOUT OUT
TALLY & INCOM
5 4 3
DC 12V IN
USB
SET UP
1 2 3 4
AC adaptor
GND
AW-PS505
QFS switch [OFF]
VTR, etc.
WGLIN/BBOUT switch [BBOUT]
33 (E)
VIDEO
PGM OUT
1 5 4 3 2 1
IN
75Ω
AUTO
2 1
OUT
Y / C IN
PGM
EXT
Y / C
TAKE
OUT
5 4 3 2 1
AW-SW350
