Avocent DSR-Serie Schnellinstallationsanleitung

The following instructions will help you
connect your DSR switch.
Should you require further assistance, please
consult your installer/user guide.
1
Connecting power to the DSR switch
Power down all servers that will be part of
your DSR switching system. Locate the power
cord that came with the DSR switch. Plug one
end into the power socket on the rear panel
of the DSR switch. Plug the other end into an
appropriate AC wall outlet.
2
Connecting the local port
Plug your VGA monitor, PS/2 or USB keyboard
and mouse cables into the corresponding DSR
local connection ports.
3
Connecting a DSRIQ module to the
DSR switch
Choose an available server port on the rear
panel of your DSR switch. Plug one end of a
CAT 5 cable (4-pair, up to 10 meters) into a
numbered port and plug the other end into the
RJ-45 connector of a DSRIQ module.
4
Connecting a server to the
DSRIQ module
Plug the DSRIQ module into the appropriate
ports on the back of the server. Repeat
this procedure for all servers that are to be
connected to the DSR switch.
Check our web site at www.avocent.com/support to search the knowledge base or use the online request.
Avocent, the Avocent logo, The Power of Being There and DSR are registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2005 Avocent Corporation. All rights reserved.
Downloaded from www.Manualslib.com
Quick Installation Guide
DSR
DSR2035 | DSR8035 Switches

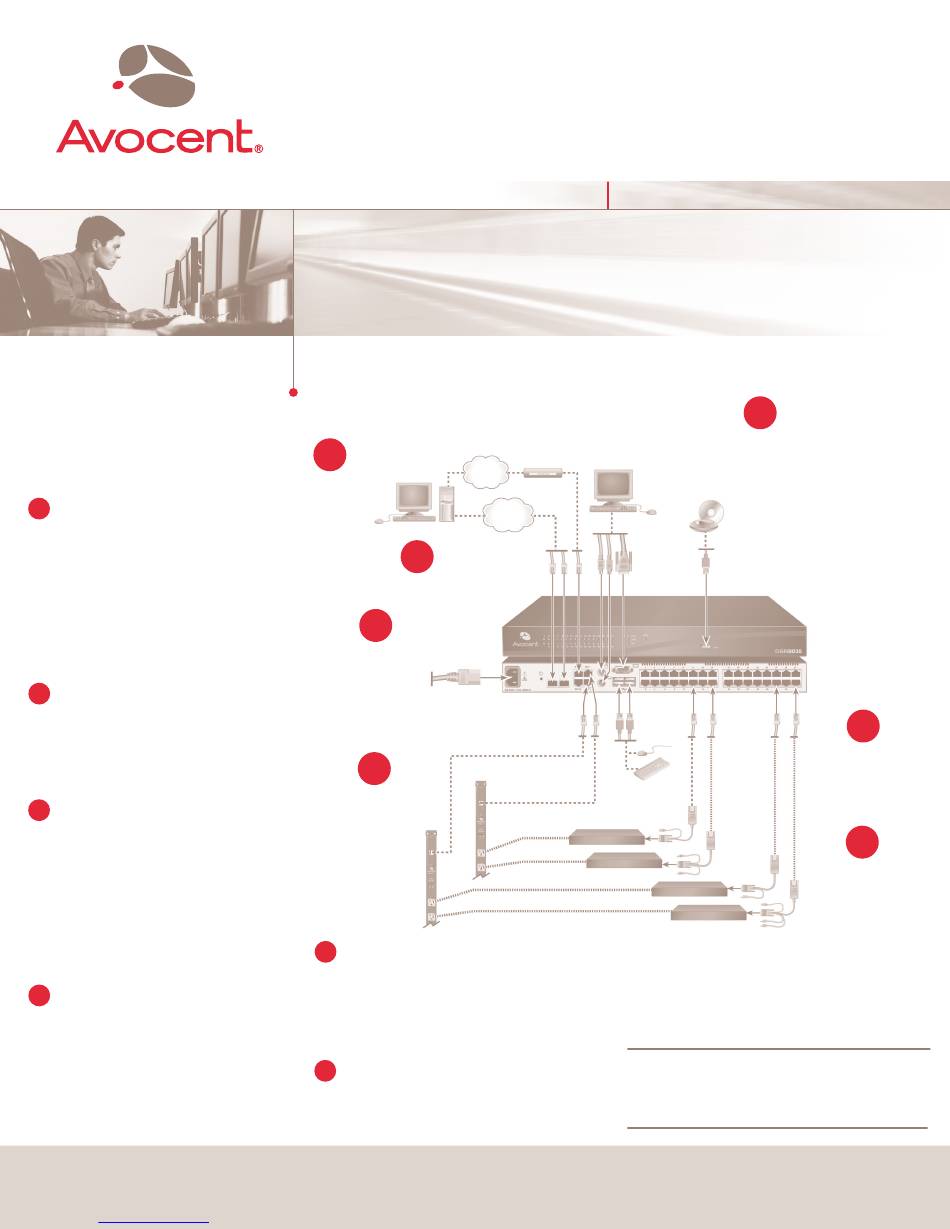

To connect a DSR switch
