operational and leak tests on the A/C system.
THE MACHINE

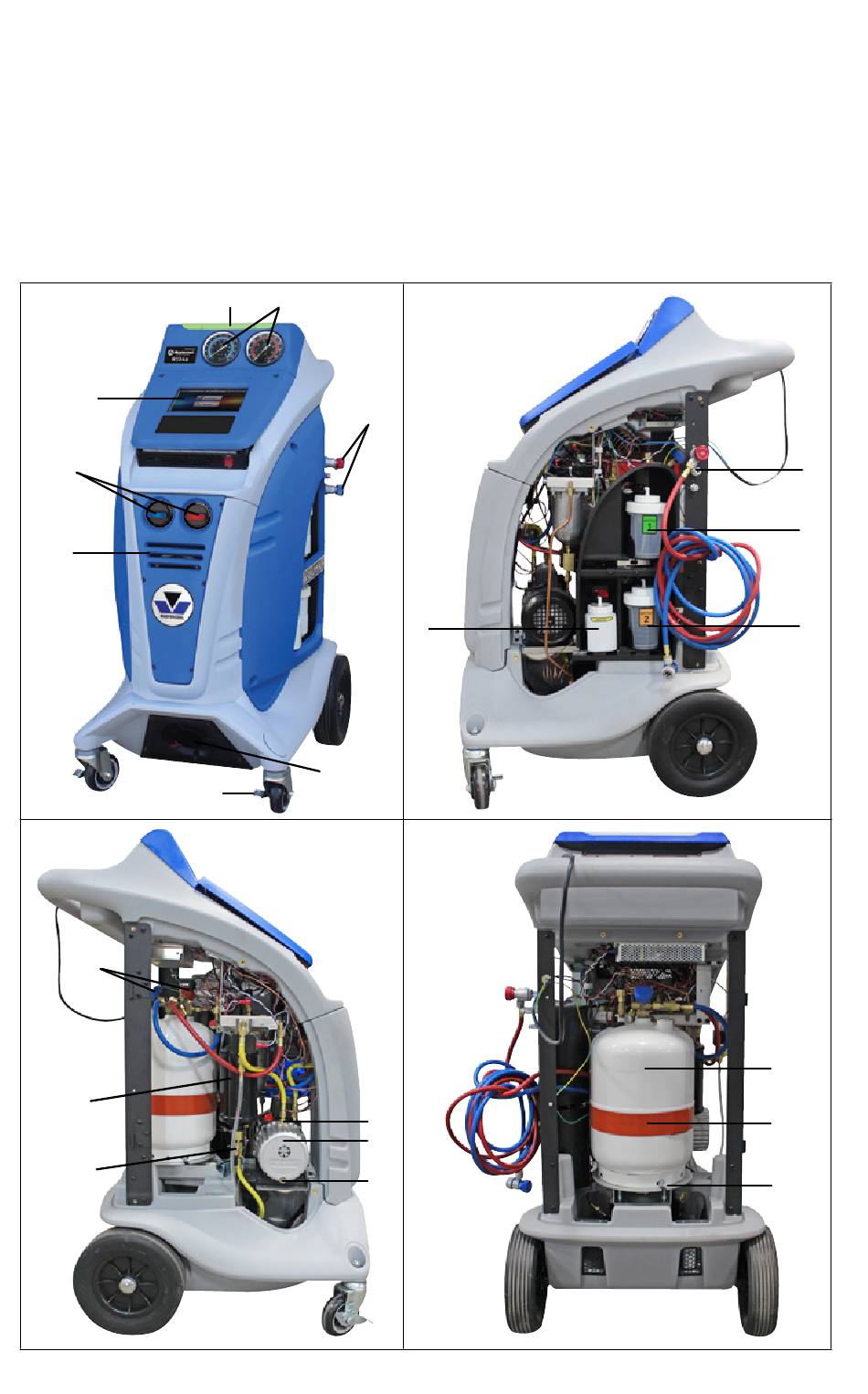

BASIC COMPONENTS (Refer to Figures 2, 3, 4 and 5.)
A. Visual Indicator Light
B. Low and High Side Analog Gauges
C. Coupler Storage (Hose Flush Manifold
(Commander3000 (-E))
D. Tank Filling Adapter
E. Fresh Oil Bottles
(COMMANDER2000/3000-E only)
F. Waste Oil Bottle
FIG. 2
K
J
I
FIG. 4
L
T
S
8
G. Cabinet Fan
H. Wheel Locks
I. Speaker
J. Low and High Side Machine Valves
K. Computer Command Center
L. Low and High Side DOT Tank Valves
M. 30 lb DOT Tank
B
A
C
G
H
www.mastercool.com
FIG. 3
F
FIG. 5
Q
P
R
N. Heater Blanket
O. Load Cell Scale
P. Vacuum Pump
Q. Vacuum Pump Vent/Oil Fill
R. Vacuum Pump Oil Drain
S. Filter Ball Valve
T. Filter
M
N
O
D
E
E
