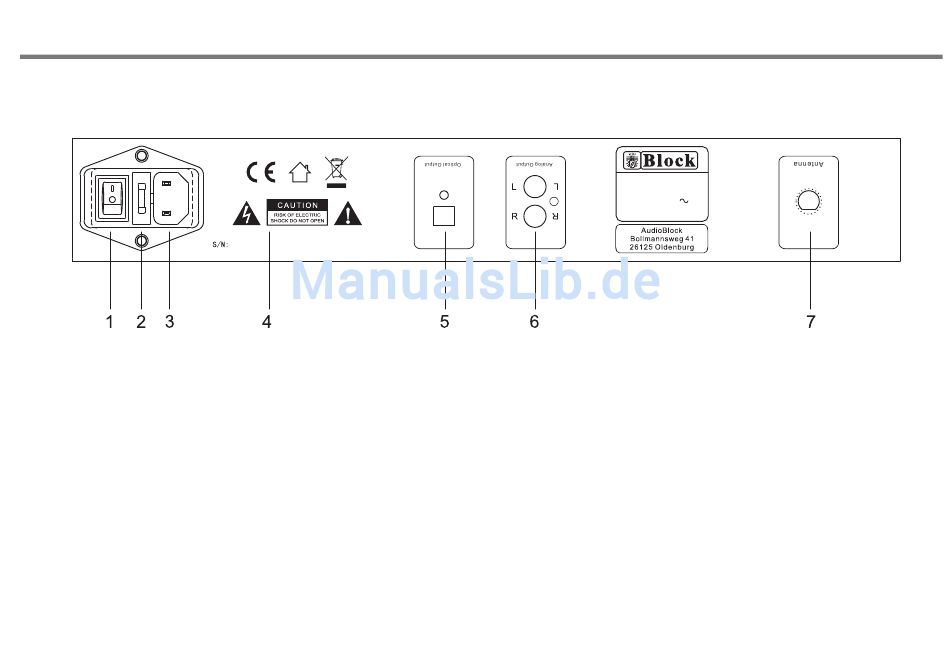

REAR PANEL CONNECTIONS

POWER
F U S E : T 1 A 2 5 0 V
1. POWER SWITCH: Switches mains power on/off to internal
components, however please note that mains power is still
applied to this unit even though this switch may be off.
2. FUSE HOLDER: fitted with 20mm T 1A fuse inside.
" IMPORTANT:"
Remove the mains plug from the mains socket before attempting
to check/ replace the fuse located on this fuse holder.
3. MAINS CABLE INLET JACK: Please ensure that the input cable strain relief
bush is intact and has not been damaged.
Optical Output Analog Output
4. WARNING ICONS: Please be aware that this unit contains high voltages,
and should not be opened.
5. Digital signal: Optical output
6. Analog signal output.
7. Radio antenna connector jack.
P15
Model: R 100+
DAB+/FM-RDS Radio
Power Rating: AC 230V 50Hz
Max Power Consumption: 20W
Antenna
