Connections On The Back Of The Unit; Remote Control - Quadral MAGIQUE Bedienungsanleitung

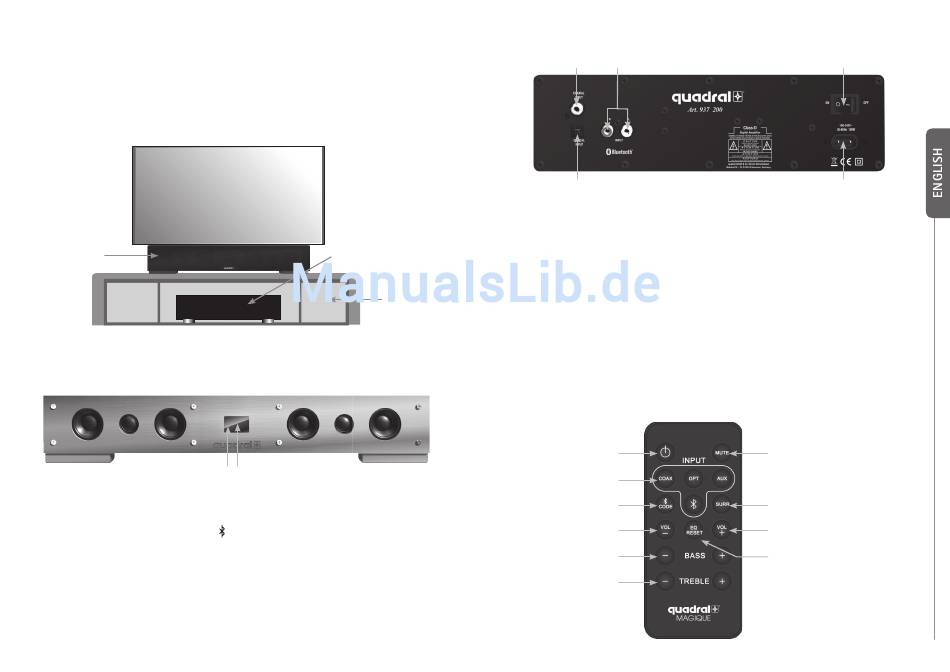

Your MAGIQUE TV speaker is suitable for positioning directly underneath your flatscreen
TV, which, ideally, should be aligned to match your seating arrangements. Your MAGIQUE
TV speaker should be free-standing without any obstructions being in the way so that
optimum sound radiation can be realised and the low frequencies are guaranteed as the
bass reproduction speaker is fitted at the bottom of the unit and it radiates downwards.
MAGIQUE
Front of the unit
1 The display LEDs indicate the following operating modes:
Red
Blue
Blue flashes twice and then stops
Blue flashes rapidly
Blue flashes once briefly
Blue flashes slowly
2 Infrared receiver: This sensor receives the infrared signal transmitted by your remote
control. Always point the remote control in this direction and ensure that the sensor is
never concealed.
14
Positioning
TV
DVD Player
1 2
Standby (OFF mode)
The unit is ready for use (ON mode)
Input is being selected
Bluetooth pairing function
Instruction acknowledgement (occurs every time
a button is pressed)
Muting activated
1 OPTICAL INPUT – Digital optical input
2 COAXIAL INPUT – Digital coax input
3 RCA INPUT – Analog stereo inputs
4 Mains switch: Disconnects the unit from the mains power supply.
Lowboard
5 Mains power supply socket
The remote control makes it easy to operate your MAGIQUE.

Connections on the back of the unit

2 3
1

Remote control

1
2
3
4
5
6
4
5
7
8
4
9
