100V/70V Constant Voltage system Usage
The SoundWare XL is equipped with a 60 watt transformer for use in 100V/70V Constant Voltage
applications.
Adjust the tap switch on the rear of the speaker to the desired setting so it will be matched to the
speaker wiring coming from the power amplifier. In conventional audio systems, set the tap switch to
the Dir X position. This bypasses the transformer, sending the signal directly to the speaker crossover.
In 100V/70V Constant Voltage systems where multiple speakers are used, the speakers must be
connected in parallel. Never use series connections in multi-speaker 100V/70V Constant Voltage
systems.
Note: 100V/70V Constant Voltage systems may be considered high voltage wiring by local building
codes. It is the responsibility of the installer to insure that the proper wiring is used when doing the
installation. Reference: National Electrical Code (NEC) Section 640.9.
142-003539-0_SoundWare_XL_Manual.indd 5
Downloaded from www.Manualslib.com
70 Volt
64W 32W
100 Volt
– 16W
70V
25V
4 OHMS
COM
70V amplifier
manuals search engine
16W 8W 4W Direct 8 ohms
8W 4W 2W Direct 8 ohms

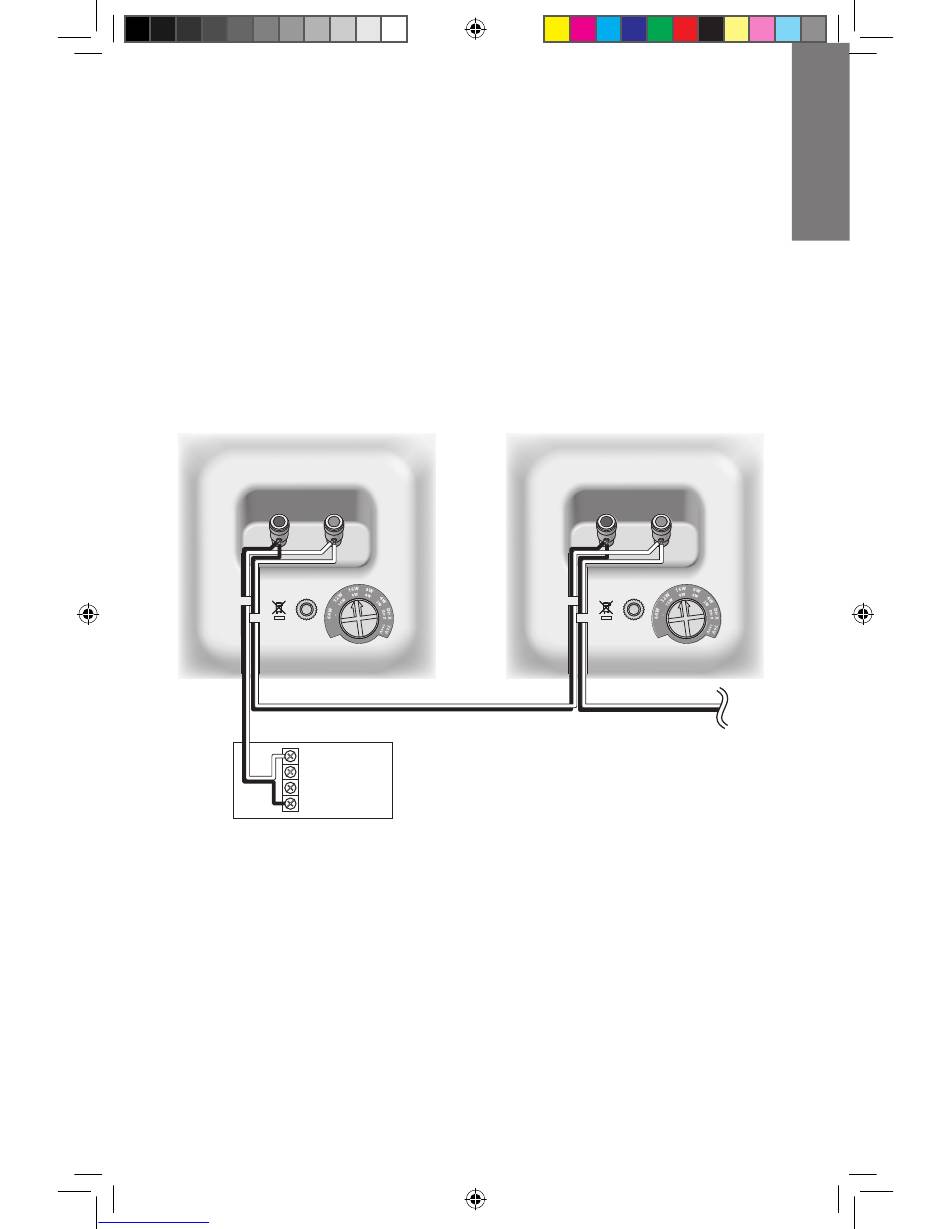

This shows the "chain" type parallel speaker connection method. It is
the simplest method and uses the least amount of wire. The "home
run" method, where every speaker wire goes from a speaker directly to
the amplifier, may also be used. However that method uses more wire
and can be difficult to connect to the amplfier terminals if more than
two pairs of speaker are being connected.
