12227 Tray
INTENDED USE
- The tray is designed to hold smaller electronic equipments such as mixers, controllers
- or tablets as well as accessories for percussion and music
- It is suitable for mounting on stands with a tube diameter of 25-42 mm
FEATURES & PROPERTIES
- Suited for touring, home and studio
- A foam insert (3 mm) dampens vibrations, prevents ambient noise
- and is gentle on the equipment.
- There is a recess for wiring in the surface
- It has an integrated can/cup holder (ø 70 x 47 mm)
- Distance and direction of the tray can be individually adjusted
- Dimensions: plate 253 x 331 x 20 mm, clamp for ø 25-42 mm, weight 2 kg
- Load capacity: max. 5 kg subject to stand suitability see: Safety instructions
Thank you for choosing this product. Please read and follow instructions carefully before installing and operating this product. They
inform you about all important steps so as to ensure safe handling. Please keep instructions for further reference.
SAFETY INSTRUCTIONS
A. LOAD CAPACITY OF THE TRAY:
A. - The maximum permissible load depends on:
A. - a. the load capacity of the support tray as such: the solid steel structure
A. - a. carries centric loads up to 5 kg
A. - b. the stability of the stand:
A. - b. see the following point B as well as chapter 11.) – if necessary, reduce load
B. STAND AND BASE (see also chapter 11):
B. - Check suitability of the stand (e.g.: do the tube diameters fit? Load capacity given?)
B. - Observe the safety instructions of the stands
B. - Check stability. This is only given if the weight of the loaded support tray
B. - does not bend the stand tubes to the side and on no account brings it to tilt.
B. - If necessary, carry out a test.
B. - Only place on level and stable flooring.
INSTALLATION INSTRUCTIONS

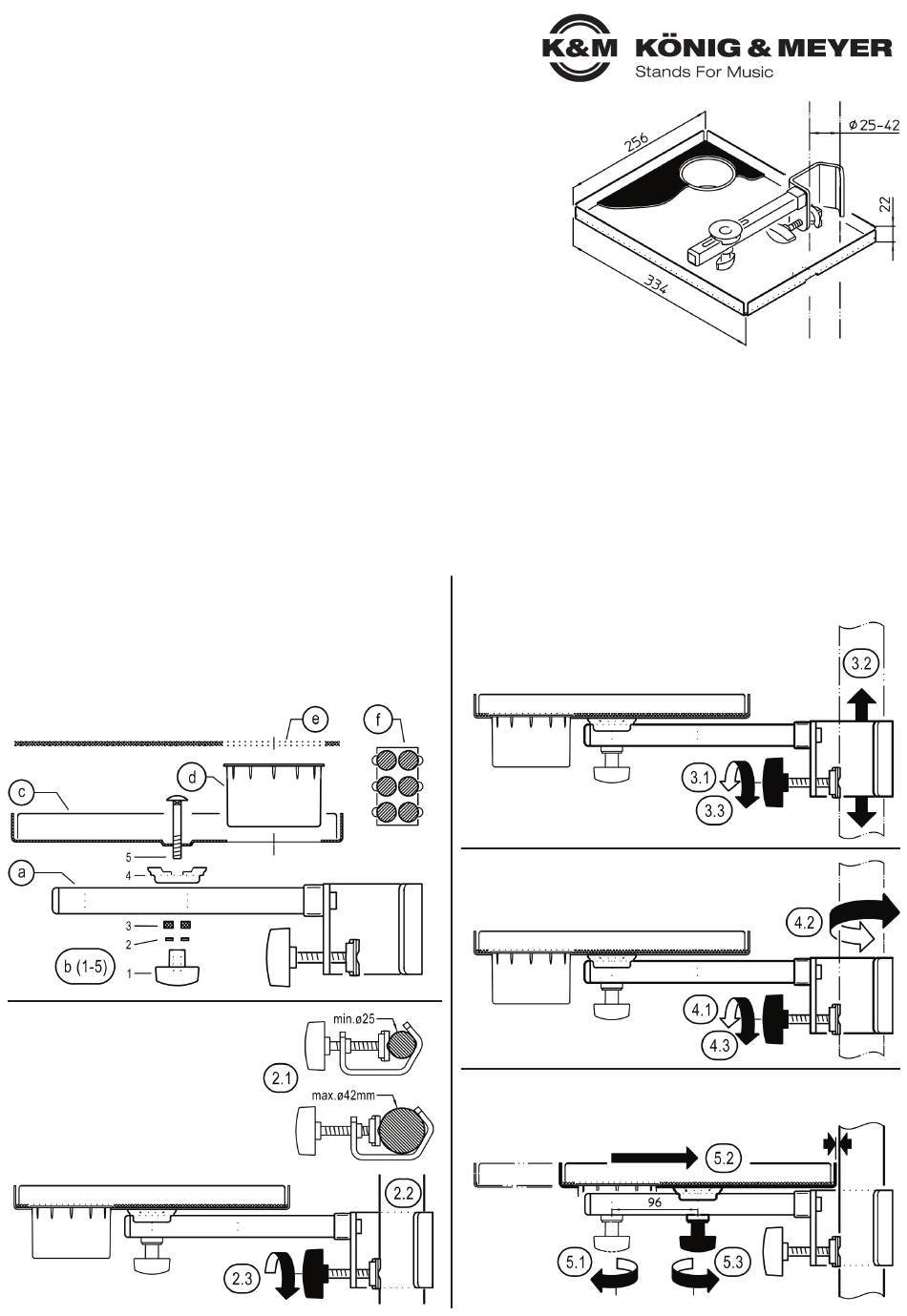

1. COMPONENTS
Please carry out a visual inspection to ensure that all components are present and as far
as perceptible in order. The sheet music tray is already pre-assembled and consists of:
a Clamp with support arm
b Connecting elements (b.1-5)
AUFSTELLANLEITUNG c Tray
d Can/cup holder
e Foam insert (329 x 251 x 3 mm)
Halterung zusammenbauen
f Double sided adhesive dots (ø 15 mm) 6x
Die Halterung besteht aus drei Baugruppen,
welche miteinander verschraubt werden:
2. MOUNTING ON THE STAND
2.1 The clamp is for tubes of ø 25-42 mm
2.2 Place the clamp around the stand tube
2.3 Tighten the clamping screw
C. LOAD:
C.
C.
D. HANDLING:
D.
D.
D. -
D. -
D.
D. -
3. / 4. / 5. / 6. ADJUSTMENTS
The tray can be variably adjusted. Note: always remove the loads first.
3. HEIGHT
3.1 Loosen the clamp of the clamping screw,
3.2 move the clamp along the stand tube
3.2 and place it in the desired position...
3.3 ...tighten the clamping screw again.
A Platte mit verstellbarem
A Haltewinkel
B Klammer mit Ausleger
C Verschraubungssatz
4. DIRECTION - TURNING SUPPORTING ARM
4.1 Loosen clamping screw of the clamp,
4.2 rotate the support arm,
4.3 Retighten clamping screw
5. DISTANCE FROM STAND TUBE
5.1 Loosen wing nut,
5.2 position support tray (0-80 mm),
5.3 retighten wing nut.
- Place the support tray as close as possible to the stand
- Preferably position the load in the centre of the tray
- Tighten the screws firmly, but do not overtighten
- The facility to move some components of the products may conceal trapping
hazards; careful handling during assembly, operation and dismantling is
therefore indispensable
- If the settings are changed (section: 3.-6.), remove before any parts placed
on the support tray
