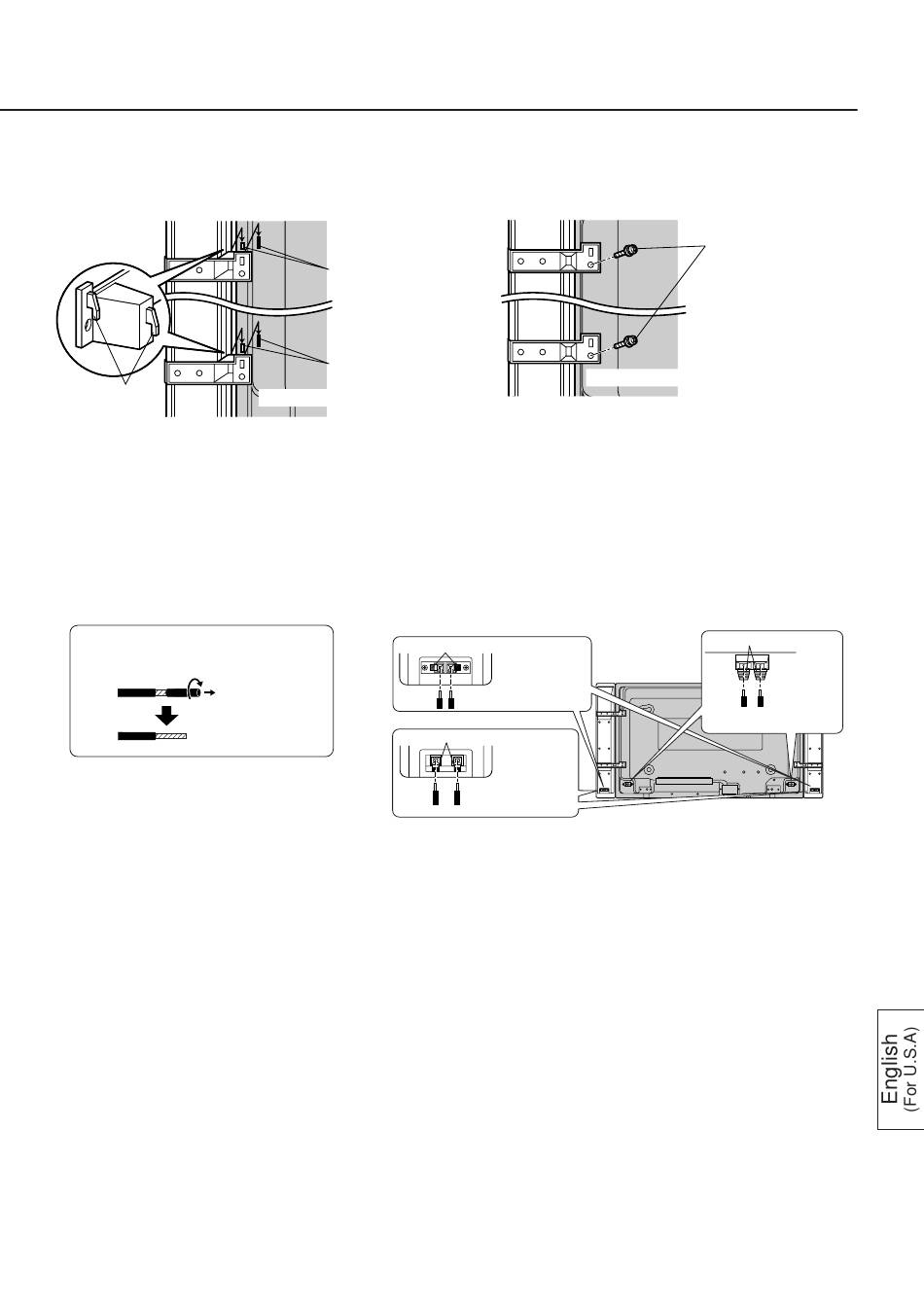

3. Attach the speakers to the
Wide Plasma Display.
Hook
• Set the hooks on the top and bottom mounting
brackets simultaneously into the hooking holes at
the rear of the Wide Plasma Display, and then
lower the speaker into place.
• Attach the left speaker in the same way.
5. Connect the speaker cables.
Preparing the ends of the
speaker cables
• After preparing the ends of the speaker cables, connect tnem as shown.
• Connect the speaker cable for the left speaker in the same way.
• The red cable is for the (+) side and the black cable is for the (-) side. Do not connect the cables to the wrong sides.
Notes on use
1. If high volumes which exceed the rated input for the
speakers are to be applied, lower the volume of the
amplifier to protect the speakers from damage. If any
problems occur with speaker operation, disconnect the
power cord of the amplifier and consult a qualified service
technician.
2. Do not place the speakers in the following places:
• Places which are exposed to direct sunlight
• Near heaters or other heat sources
• Places with high humidity
Hooking hole
Hooking hole
Rear of Wide Plasma Display
For 37", 42" Display
While twisting
For 50" Display
4. Secure the speakers in
place.
• Adjust so that there is a uniform clearance
between the Wide Plasma Display and the
speakers, and then securely tighten the bracket
mounting screws.
• Secure the top and bottom mounting brackets by
tightening the bracket mounting screws.
• Secure the left speaker in the same way.
1. Press down on the lever.
2. Insert
the cable.
3. Release the lever.
1. Push down the lever.
2. Insert
the cable.
3. Return the lever to
its normal position.
3. This set is equipped with magnetic resistant speakers but
be careful not to place them near the CRT TV as it may
cause color patches.
4. To clean the speakers, wipe them with a soft cloth. If they
are extremely dirty, wipe them with a cloth which has been
soaked in a small amount of household detergent, and then
wipe the dry with a separate cloth.
• Do not use solvents such as alcohol or thinner.
• If using chemically-treated cloths, follow the instructions
on the cloth packaging.
Bracket mounting
screw
Rear of Wide Plasma Display
1. Push down the lever.
3. Return the lever to its
normal position.
2. Insert
the cable.
