TX705

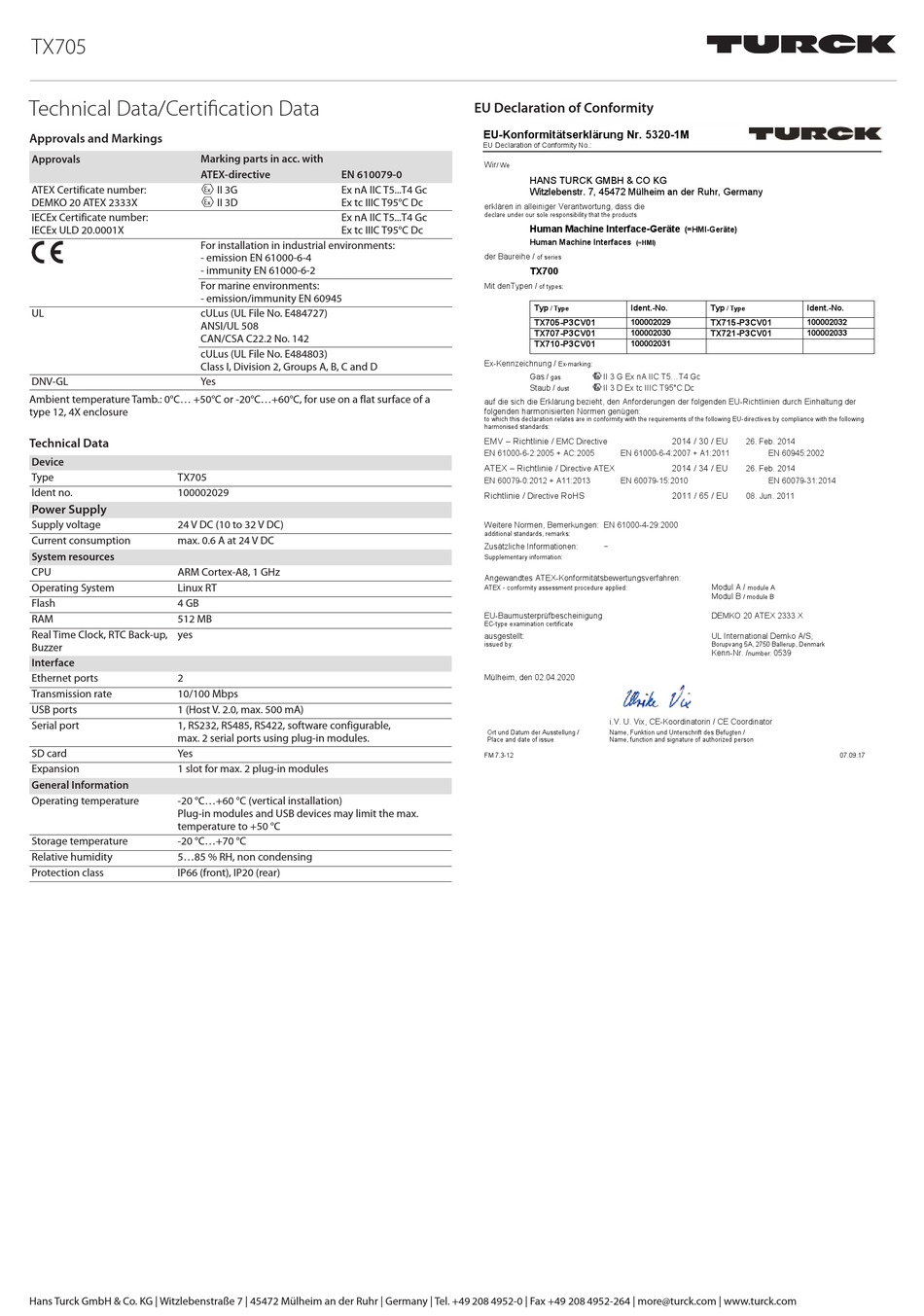

Technical Data/Certification Data
Approvals and Markings
Marking parts in acc. with
Approvals
ATEX-directive
É II 3G
ATEX Certificate number:
É II 3D
DEMKO 20 ATEX 2333X
IECEx Certificate number:
IECEx ULD 20.0001X
For installation in industrial environments:
- emission EN 61000-6-4
- immunity EN 61000-6-2
For marine environments:
- emission/immunity EN 60945
UL cULus (UL File No. E484727)
ANSI/UL 508
CAN/CSA C22.2 No. 142
cULus (UL File No. E484803)
Class I, Division 2, Groups A, B, C and D
DNV-GL Yes
Ambient temperature Tamb.: 0°C... +50°C or -20°C...+60°C, for use on a flat surface of a
type 12, 4X enclosure
Technical Data
Device
Type TX705
Ident no. 100002029
Power Supply
Supply voltage 24 V DC (10 to 32 V DC)
Current consumption max. 0.6 A at 24 V DC
System resources
CPU ARM Cortex-A8, 1 GHz
Operating System Linux RT
Flash 4 GB
RAM 512 MB
Real Time Clock, RTC Back-up, yes
Buzzer
Interface
Ethernet ports 2
Transmission rate 10/100 Mbps
USB ports 1 (Host V. 2.0, max. 500 mA)
Serial port 1, RS232, RS485, RS422, software configurable,
max. 2 serial ports using plug-in modules.
SD card Yes
Expansion 1 slot for max. 2 plug-in modules
General Information
Operating temperature -20 °C...+60 °C (vertical installation)
Plug-in modules and USB devices may limit the max.
temperature to +50 °C
Storage temperature -20 °C...+70 °C
Relative humidity 5...85 % RH, non condensing
Protection class IP66 (front), IP20 (rear)
Hans Turck GmbH & Co. KG | Witzlebenstraße 7 | 45472 Mülheim an der Ruhr | Germany | Tel. +49 208 4952-0 | Fax +49 208 4952-264 | more@turck.com | www.turck.com

EU Declaration of Conformity

EU-Konformitätserklärung Nr. 5320-1M
EU Declaration of Conformity No.:
Wir
/ We
EN 610079-0
Ex nA IIC T5...T4 Gc
Ex tc IIIC T95°C Dc
erklären in alleiniger Verantwortung, dass die
Ex nA IIC T5...T4 Gc declare under our sole responsibility that the products
Ex tc IIIC T95°C Dc
der Baureihe /
Mit denTypen /
Ex-Kennzeichnung /
auf die sich die Erklärung bezieht, den Anforderungen der folgenden EU-Richtlinien durch Einhaltung der
folgenden harmonisierten Normen genügen:
to which this declaration relates are in conformity with the requirements of the following EU-directives by compliance with the following
harmonised standards:
EMV – Richtlinie /
EN 61000-6-2:2005 + AC:2005
ATEX – Richtlinie /
EN 60079-0:2012 + A11:2013
Richtlinie /
Weitere Normen, Bemerkungen: EN 61000-4-29:2000
additional standards, remarks:
Zusätzliche Informationen:
Supplementary information:
Angewandtes ATEX-Konformitätsbewertungsverfahren:
ATEX - conformity assessment procedure applied:
EU-Baumusterprüfbescheinigung
EC-type examination certificate
ausgestellt:
issued by:
Mülheim, den 02.04.2020
Ort und Datum der Ausstellung /
Place and date of issue
FM 7.3-12
HANS TURCK GMBH & CO KG
Witzlebenstr. 7, 45472 Mülheim an der Ruhr, Germany
Human Machine Interface-Geräte
(=HMI-Geräte)
Human Machine Interfaces
(=HMI)
of series
TX700
of types:
Typ Ident.-No.
/ Type
TX705-P3CV01 100002029
TX707-P3CV01 100002030
TX710-P3CV01
100002031
Ex-marking:
Gas / II 3 G Ex nA IIC T5...T4 Gc
gas
Staub / II 3 D Ex tc IIIC T95°C Dc
dust
2014 / 30 / EU
EMC Directive
EN 61000-6-4:2007 + A1:2011
Directive ATEX 2014 / 34 / EU
EN 60079-15:2010
RoHS 2011 / 65 / EU
Directive
−
i.V. U. Vix, CE-Koordinatorin / CE Coordinator
Name, Funktion und Unterschrift des Befugten /
Name, function and signature of authorized person
Typ Ident.-No.
/ Type
TX715-P3CV01 100002032
TX721-P3CV01 100002033
26. Feb. 2014
EN 60945:2002
26. Feb. 2014
EN 60079-31:2014
08. Jun. 2011
Modul A /
module A
Modul B
/ module B
DEMKO 20 ATEX 2333 X
UL International Demko A/S,
Borupvang 5A, 2750 Ballerup, Denmark
Kenn-Nr. / 0539
number:
07.09.17
