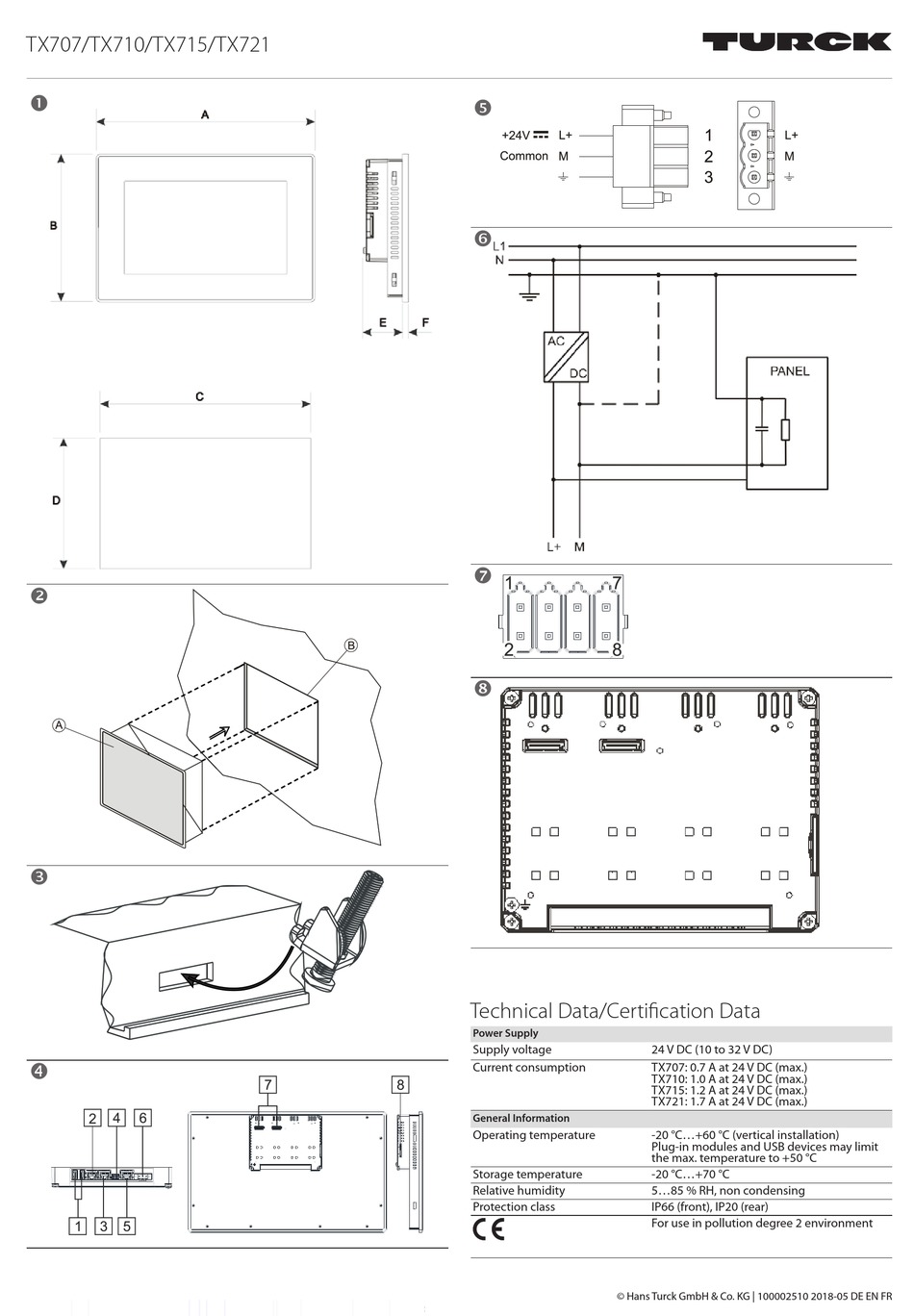

turck TX707 Kurz- Betriebsanleitung

TX707/TX710/TX715/TX721








Technical Data/Certification Data
Power Supply
Supply voltage
Current consumption
General Information
Operating temperature
Storage temperature
Relative humidity
Protection class
© Hans Turck GmbH & Co. KG | 100002510 2018-05 DE EN FR
24 V DC (10 to 32 V DC)
TX707: 0.7 A at 24 V DC (max.)
TX710: 1.0 A at 24 V DC (max.)
TX715: 1.2 A at 24 V DC (max.)
TX721: 1.7 A at 24 V DC (max.)
-20 °C...+60 °C (vertical installation)
Plug-in modules and USB devices may limit
the max. temperature to +50 °C
-20 °C...+70 °C
5...85 % RH, non condensing
IP66 (front), IP20 (rear)
For use in pollution degree 2 environment
