■ ■ The operation on the buttons A~D and the touch pad depends on
the application in use. Refer to the related application instructions for
details.
■ ■ Do not block the ambient light sensor, or it may not work properly.
■ ■ The camera LED glows while you are taking photos/videos.
■ ■ All product specifications, configurations, prices, system/component/
options availability are all subject to change without notice.

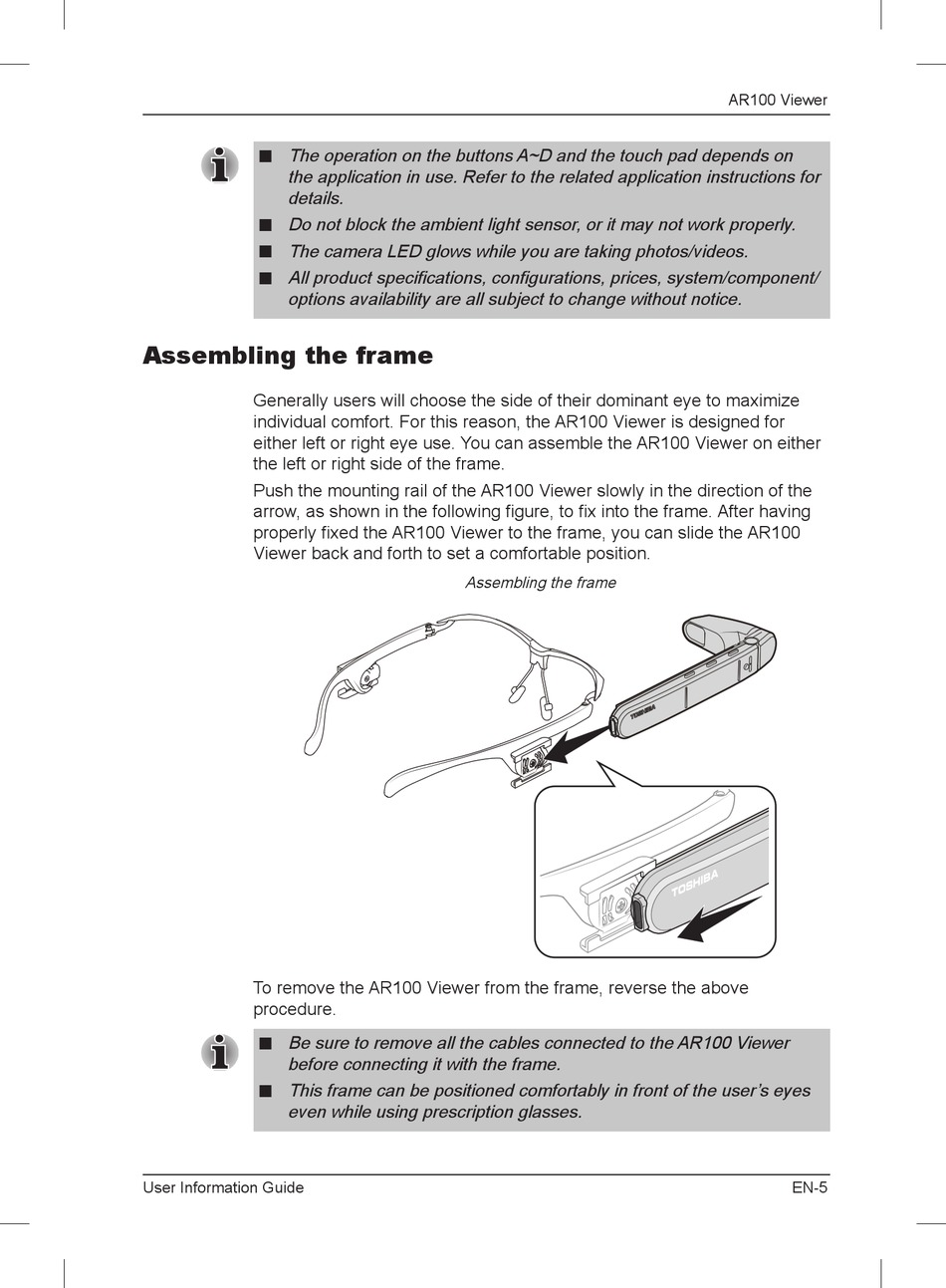

Assembling the frame

Generally users will choose the side of their dominant eye to maximize
individual comfort. For this reason, the AR100 Viewer is designed for
either left or right eye use. You can assemble the AR100 Viewer on either
the left or right side of the frame.
Push the mounting rail of the AR100 Viewer slowly in the direction of the
arrow, as shown in the following figure, to fix into the frame. After having
properly fixed the AR100 Viewer to the frame, you can slide the AR100
Viewer back and forth to set a comfortable position.
To remove the AR100 Viewer from the frame, reverse the above
procedure.
■ ■ Be sure to remove all the cables connected to the AR100 Viewer
before connecting it with the frame.
■ ■ This frame can be positioned comfortably in front of the user's eyes
even while using prescription glasses.
