Intended use and installation
2.3
Installation of OGM
Interface
1.
The interface (Pos 1) is connected with the PC connection
cable to a free COM interface of the PC.
2.
Connect OGM
OGM connection cable.
3.
Connect the power supply unit to the mains supply
(230V/50Hz).
4.
Connect the power supply unit to the OGM Commander
interface (item 6).
5.
After switching on the OGM Commander Interface (pos. 3),
the LED (pos. 4) lights up if a connection has been detected.
NOTICE!
If the LED does not light up, there is an error in
the connection. In this case check all
connections for correct fit and also check the
power source.
Rev. 01-01.2020
Plus
1
Plus
to the OGM Commander (pos. 5) with the
4
at OGM Commander-
2

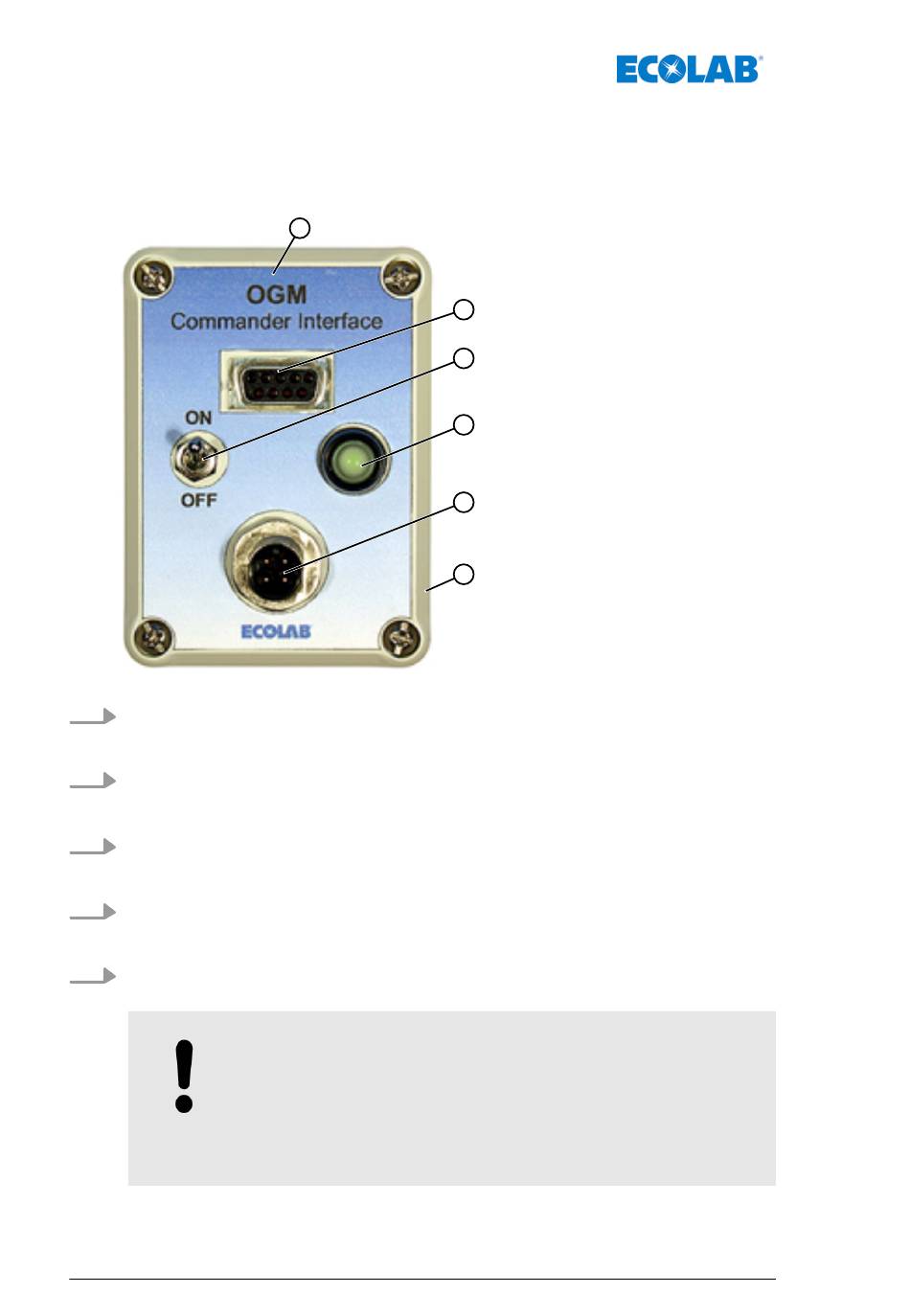

1 Interface
3
2 Connection to PC
3 ON / OFF Switch
4
4 LED
Connection to
5
PLUS
OGM
5
6 Power supply
6
