10 Chapter 2

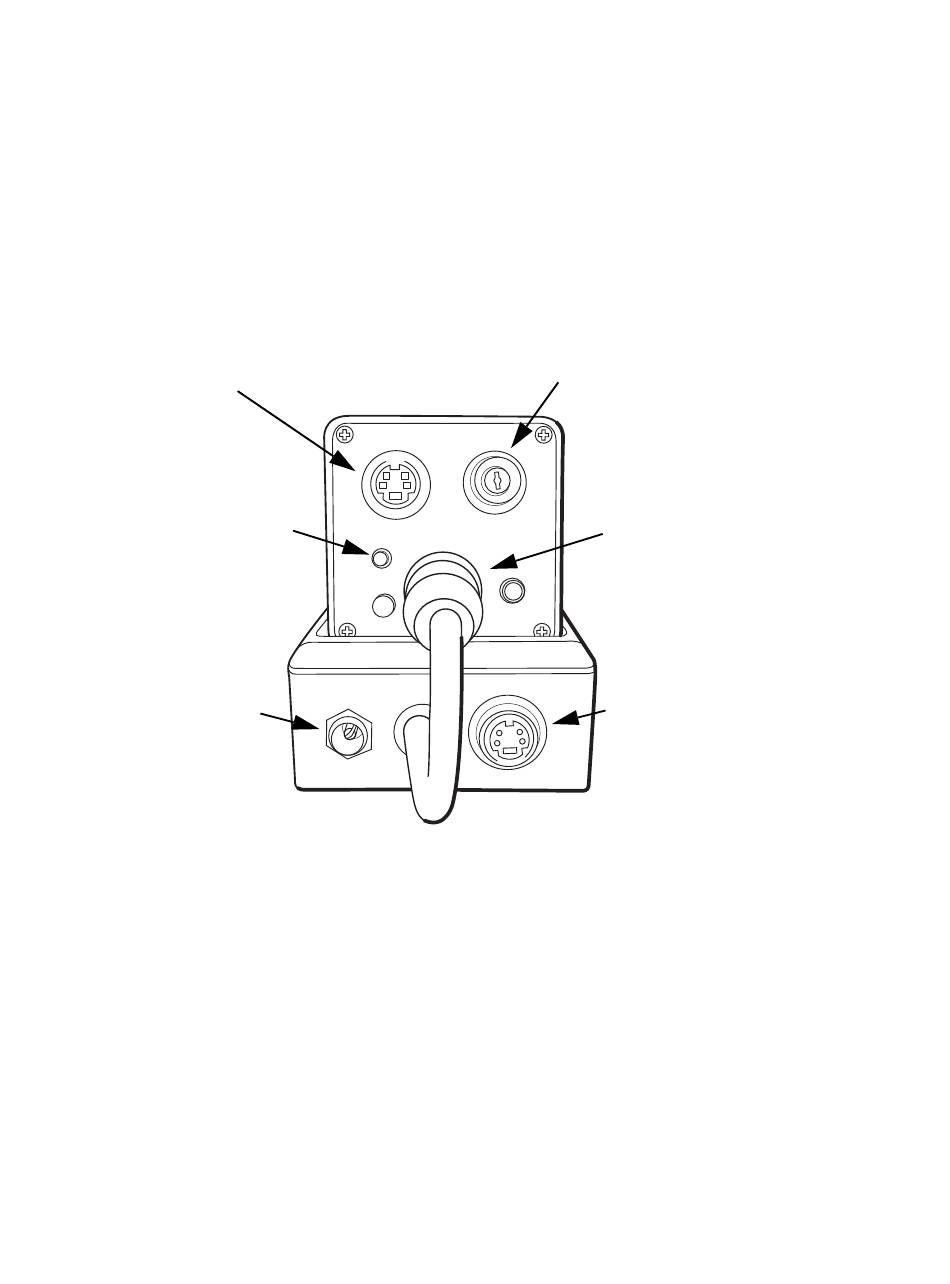

Back Panel Functions

S-Video Out Connector (Y/C):
Connects to S- video input of a
video display or recording device
Manual White
Balance (Push
AWB): Sets white
balance
DC Jack:
Connects to
power supply
Welch Allyn ProXenon Headlight Camera System
Composite Video Out Connector
(Video): Connects to composite video input
of a video display or recording device
Interface Cable:
Connects magnetic base
to Video Processor
S- Video Out Connector
(Y/C): Connects to S-Video
input of a recording device
or video display
