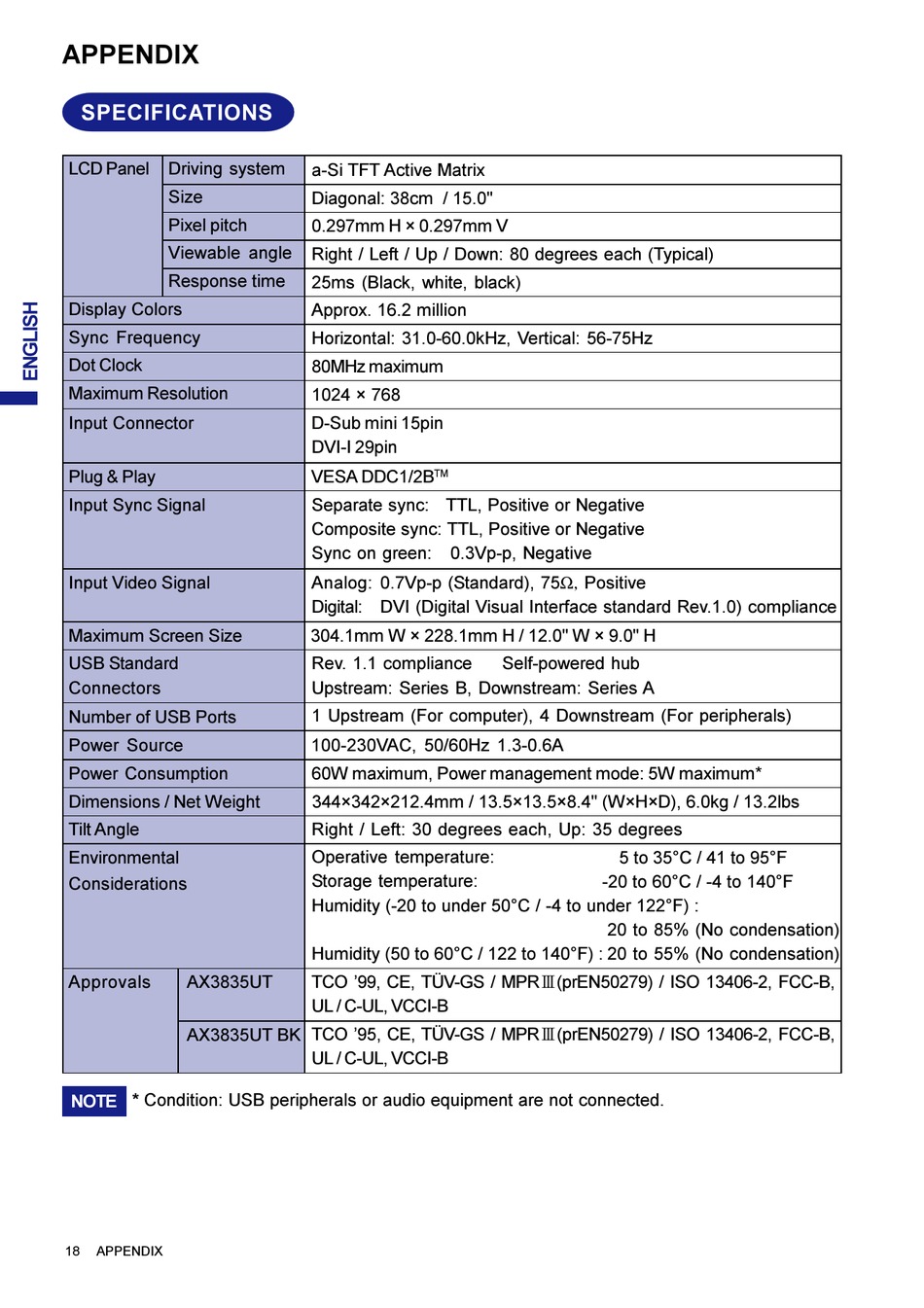

APPENDIX
SPECIFICATIONS
LCD Panel Driving system
Size
Pixel pitch
Viewable angle
Response time
Display Colors
Sync Frequency
Dot Clock
Maximum Resolution
Input Connector
Plug & Play
Input Sync Signal
Input Video Signal
Maximum Screen Size
USB Standard
Connectors
Number of USB Ports
Power Source
Power Consumption
Dimensions / Net Weight
Tilt Angle
Environmental
Considerations
Approvals AX3835UT
AX3835UT BK
* Condition: USB peripherals or audio equipment are not connected.
NOTE
18 APPENDIX
a-Si TFT Active Matrix
Diagonal: 38cm / 15.0"
0.297mm H × 0.297mm V
Right / Left / Up / Down: 80 degrees each (Typical)
25ms (Black, white, black)
Approx. 16.2 million
Horizontal: 31.0-60.0kHz, Vertical: 56-75Hz
80MHz maximum
1024 × 768
D-Sub mini 15pin
DVI-I 29pin
VESA DDC1/2B TM
Separate sync: TTL, Positive or Negative
Composite sync: TTL, Positive or Negative
Sync on green: 0.3Vp-p, Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive
Digital: DVI (Digital Visual Interface standard Rev.1.0) compliance
304.1mm W × 228.1mm H / 12.0" W × 9.0" H
Rev. 1.1 compliance
Upstream: Series B, Downstream: Series A
1 Upstream (For computer), 4 Downstream (For peripherals)
100-230VAC, 50/60Hz 1.3-0.6A
60W maximum, Power management mode: 5W maximum*
344×342×212.4mm / 13.5×13.5×8.4" (W×H×D), 6.0kg / 13.2lbs
Right / Left: 30 degrees each, Up: 35 degrees
Operative temperature:
Storage temperature:
Humidity (-20 to under 50°C / -4 to under 122°F) :
Humidity (50 to 60°C / 122 to 140°F) :
TCO '99, CE, TÜV-GS / MPR3(prEN50279) / ISO 13406-2, FCC-B,
UL / C-UL, VCCI-B
TCO '95, CE, TÜV-GS / MPR3(prEN50279) / ISO 13406-2, FCC-B,
UL / C-UL, VCCI-B
Self-powered hub
5 to 35°C / 41 to 95°F
-20 to 60°C / -4 to 140°F
20 to 85% (No condensation)
20 to 55% (No condensation)
