Wheel tube
PVA brush
end hub
Side Plate
TAKING CARE OF THE PVA BRUSHES
This special brush material PVA (polyvinyl alcohol)
is most effective in wet conditions. Before you put
the device into operation, please allow the PVA
Material stains when drying the PVA brushes are
normal. These disappear when the brushes have
absorbed water and the device works in water.
Manual RobotClean" 210x165 4c 2015 KORR_2.indd 7

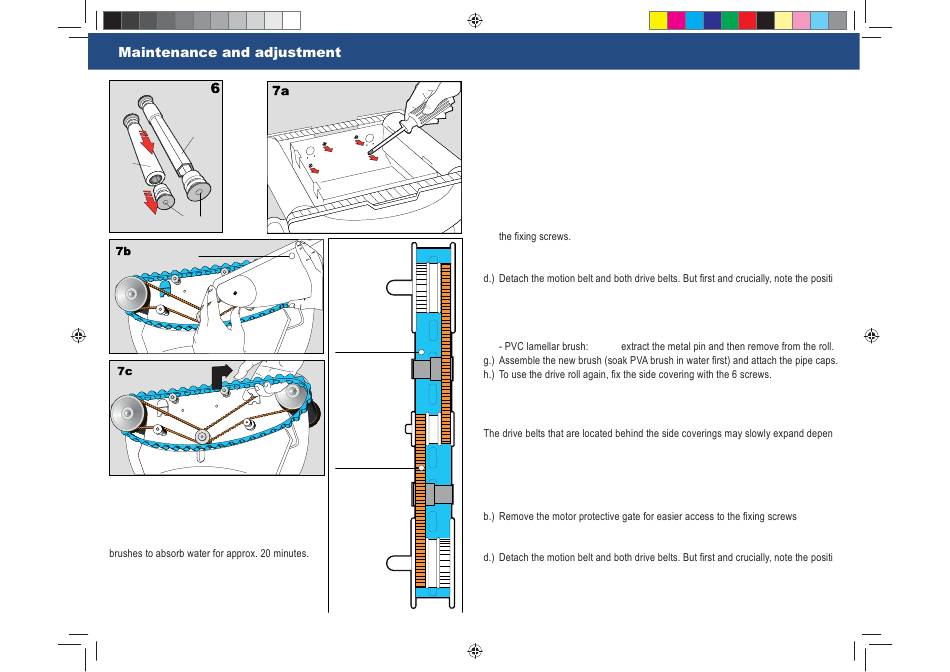

REPLACING BRUSHES
Standard brush (assembled) :
Optional brush:
Depending on the frequency of use of the cleaner, the worn brushes must be repla-
ced. Worn out brushes hinder the cleaning function, the ability to climb pool walls and
general performance.
a.) Pull out the mains plug of the transformer. Avoid any contact between the mains
plug and water.
b.) Carefully remove the motor protective gate with a screwdriver for easier access to
c.) Loosen the 6 screws on the side coverings on the drive side (not cable side) and
remove these carefully. (see Fig. 7a).
on of the drive belts for later assembly (see Fig. 7b, 7c)
e.) After detaching the drive belts, take the drive roll out of the mounting.
f.) Detach the pipe caps and remove the old brush (see Fig. 6).
- PVA brush:
Drive Track
REPLACING DRIVE BELTS
ding on the period of use. In this case, the drive belts must be changed in order to
ensure continuing proper functioning.
Drive Belts
a.) Pull out the mains plug of the transformer. Avoid any contact between the mains
plug and water.
c.) Loosen the 6 screws on the side coverings on the drive side (not cable side) and
remove these carefully. (see Fig 7b)
on of the drive belts for later assembly (see Fig. 7c)
e.) Replace the drive belts and assemble everything back together in reverse order.
7
PVA brush, universal, grey
PVC lamellar brush, blue (required for tiles)
soak in water and then pull down from the drive roll.
