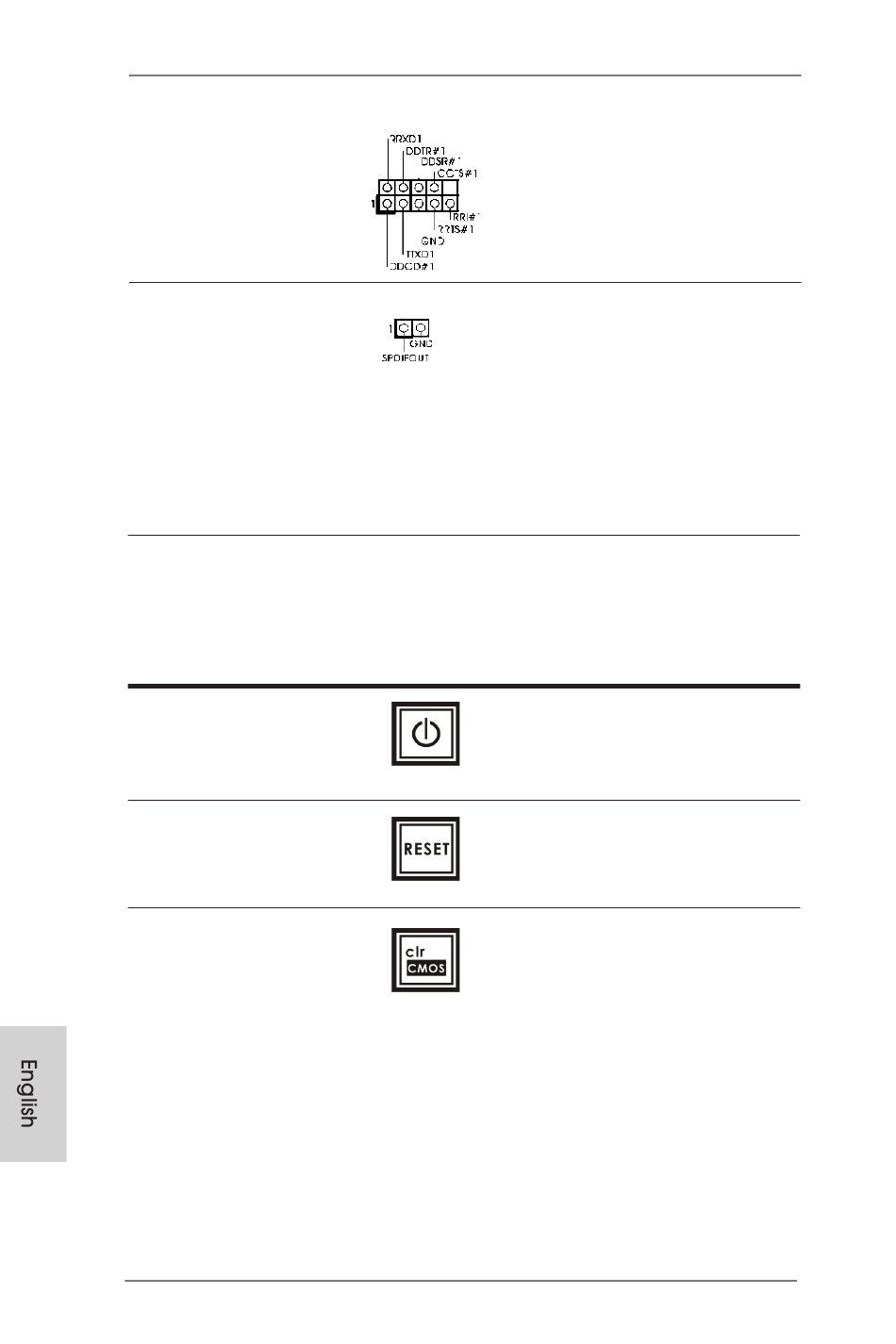

Serial port Header
(9-pin COM1)
(see p.2 No.30)
HDMI_SPDIF Header
(2-pin HDMI_SPDIF1)
(
see p.2 No. 31)

2.11 Smart Switches

This motherboard has three smart switches: power switch, reset switch and clear
CMOS switch, allowing users to quickly turn on/off or reset the system or clear the
CMOS values.
Power Switch
(PWRBTN)
(see p.2 No. 18)
Reset Switch
(RSTBTN)
(see p.2 No. 19)
Clear CMOS Switch
(CLRCBTN)
(see p.3 No. 14)
32
ASRock A75 Pro4/MVP Motherboard
This COM1 header supports a
serial port module.
HDMI_SPDIF header, providing
SPDIF audio output to HDMI
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
Power Switch is a smart switch,
allowing users to quickly turn
on/off the system.
Reset Switch is a smart switch,
allowing users to quickly reset
the system.
Clear CMOS Switch is a smart
switch, allowing users to quickly
clear the CMOS values
