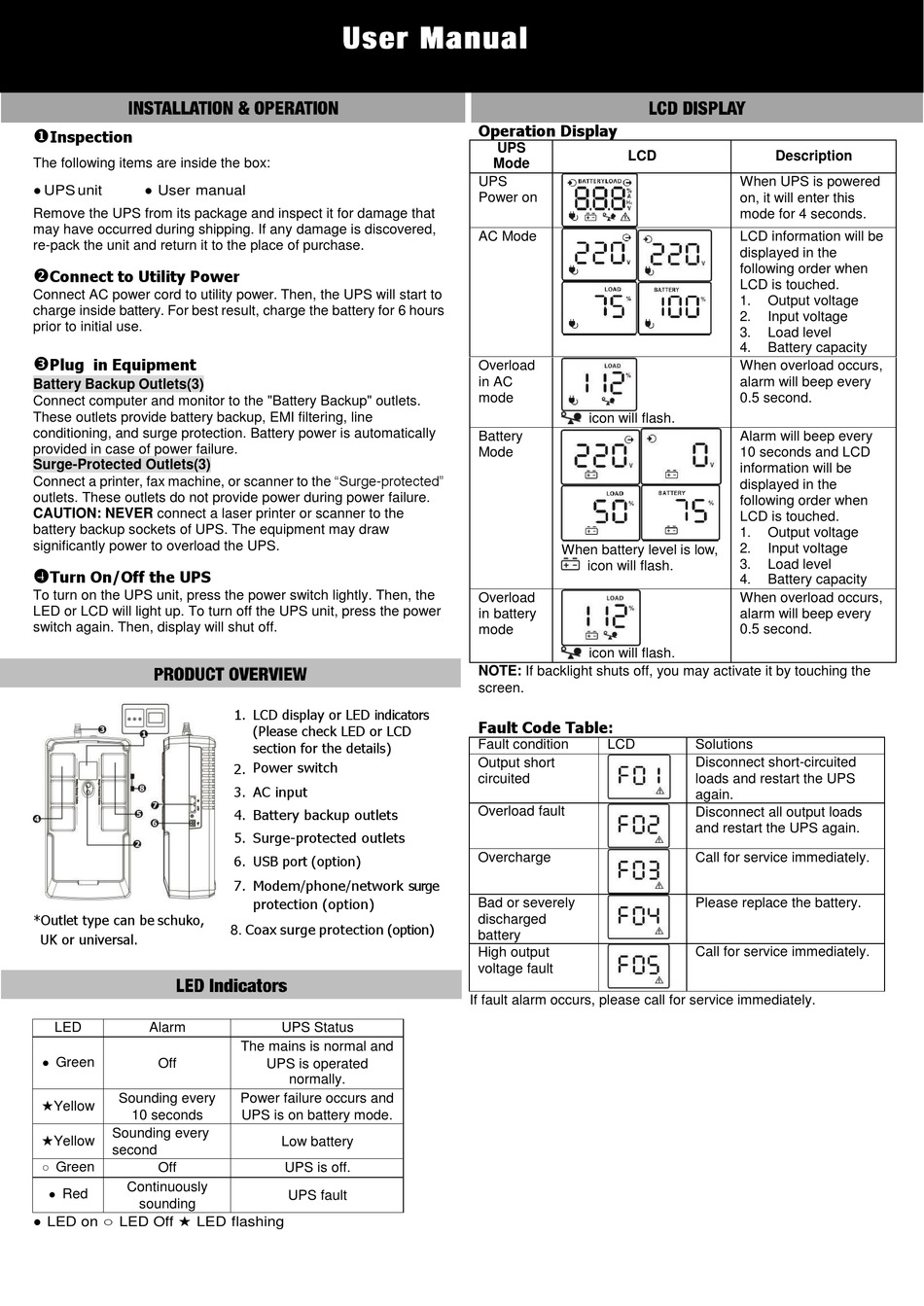

FSP FP Serie Bedienungsanleitung

 Inspection
The following items are inside the box:
● UPS unit ● User manual
Remove the UPS from its package and inspect it for damage that
may have occurred during shipping. If any damage is discovered,
re-pack the unit and return it to the place of purchase.
 Connect to Utility Power
Connect AC power cord to utility power. Then, the UPS will start to
charge inside battery. For best result, charge the battery for 6 hours
prior to initial use.
 Plug in Equipment
Battery Backup Outlets(3)
Connect computer and monitor to the "Battery Backup" outlets.
These outlets provide battery backup, EMI filtering, line
conditioning, and surge protection. Battery power is automatically
provided in case of power failure.
Surge-Protected Outlets(3)
Connect a printer, fax machine, or scanner to the "Surge-protected"
outlets. These outlets do not provide power during power failure.
CAUTION: NEVER connect a laser printer or scanner to the
battery backup sockets of UPS. The equipment may draw
significantly power to overload the UPS.
 Turn On/Off the UPS
To turn on the UPS unit, press the power switch lightly. Then, the
LED or LCD will light up. To turn off the UPS unit, press the power
switch again. Then, display will shut off.
*Outlet type can be schuko,
UK or universal.
LED Alarm
●
Green
Off
Sounding every
★Yellow
10 seconds
Sounding every
★Yellow
second
○
Green Off
Continuously
●
Red
sounding
● LED on ○ LED Off ★ LED flashing
1. LCD display or LED indicators
(Please check LED or LCD
section for the details)
2. Power switch
3. AC input
4. Battery backup outlets
5. Surge-protected outlets
6. USB port (option)
7. Modem/phone/network surge
protection (option)
8. Coax surge protection (option)
UPS Status
The mains is normal and
UPS is operated
normally.
Power failure occurs and
UPS is on battery mode.
Low battery
UPS is off.
UPS fault
Operation Display
UPS
LCD
Mode
UPS
Power on
AC Mode
Overload
in AC
mode
icon will flash.
Battery
Mode
When battery level is low,
icon will flash.
Overload
in battery
mode
icon will flash.
NOTE: If backlight shuts off, you may activate it by touching the
screen.
Fault Code Table:
Fault condition LCD
Output short
circuited
Overload fault
Overcharge
Bad or severely
discharged
battery
High output
voltage fault
If fault alarm occurs, please call for service immediately.
Standby UPS
400VA/600VA/800VA
Description
When UPS is powered
on, it will enter this
mode for 4 seconds.
LCD information will be
displayed in the
following order when
LCD is touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
When overload occurs,
alarm will beep every
0.5 second.
Alarm will beep every
10 seconds and LCD
information will be
displayed in the
following order when
LCD is touched.
1. Output voltage
2. Input voltage
3. Load level
4. Battery capacity
When overload occurs,
alarm will beep every
0.5 second.
Solutions
Disconnect short-circuited
loads and restart the UPS
again.
Disconnect all output loads
and restart the UPS again.
Call for service immediately.
Please replace the battery.
Call for service immediately.
