Aritech EV400AM Serie Installationsanleitung

fig. 1a
fig. 1c EV435AM/EV436AM
fig. 1e EV455AM/EV456AM
fig. 4
fig. 1b
fig. 1d
fig. 3
"CV" = Control Voltage
Either "Low" or "High" Control Voltage may be used "Low" = 0 Volt
Select the appropriate Control Voltage Setting.
fig. 5
fig. 9
- 1 -

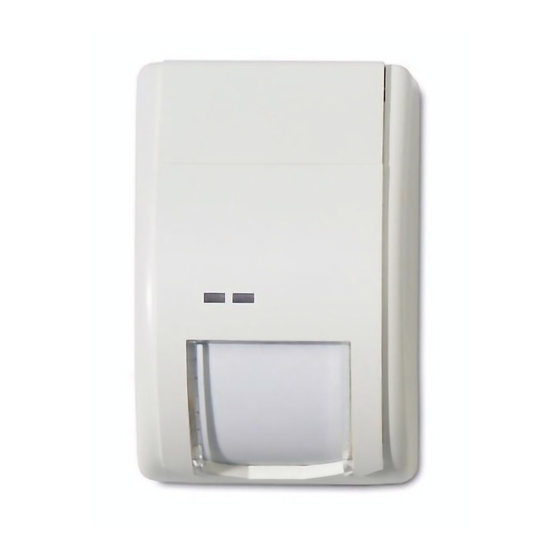

EV400AM SERIES DETECTOR
fig. 2
Switch Description
1 LED indication
2 Range
3 Processing
4 Trouble output ETO + alarm relay;
tech. fault; ETO only
5 AM Sensitivity
6 Reset Tr.output
7 Tr. output indic. Only in disarm mode
8 Contr. Polarity
fig. 6 fig. 7
fig. 10 fig. 11
EV435AM/EV436AM/EV455AM/EV456AM
On
LED's on LED's controlled
max. stated range min. stated range
Bi-curtain Standard-4D
High Standard
After Walk test Authorized reset
Immediately
Active High Active Low
"High" = 12 Volt
fig. 8
fig. 12
Off
ETO
