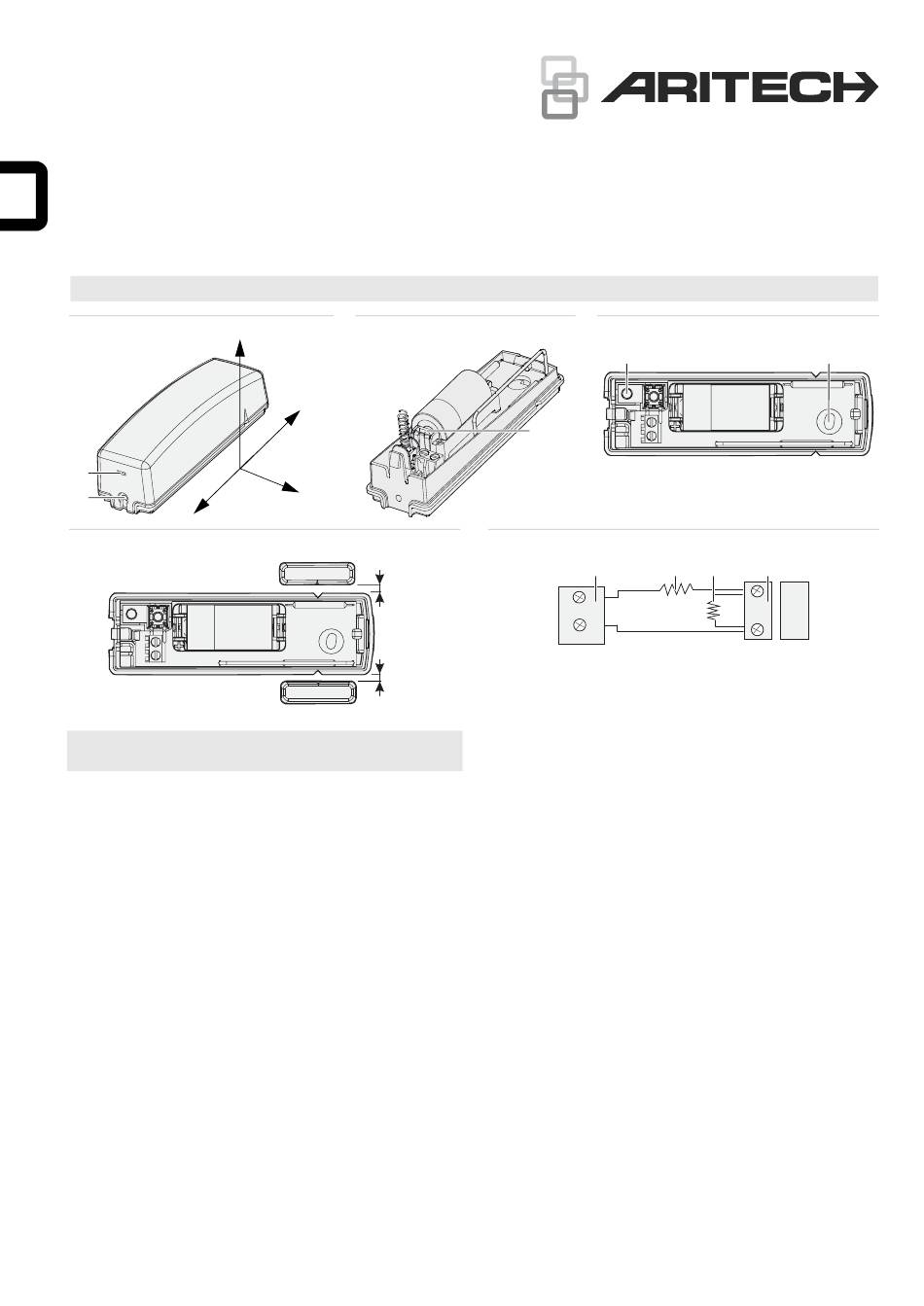

SlimLine Door/Window Sensor 868 GEN2
Installation Sheet
EN
DE
EL
ES
FR
IT
1
(1)
(2)
X2
4
EN: Installation Sheet
Introduction
This is the Installation Sheet for models TX-1011-03-1 and TX-
1011-03-3. You can install the sensor on doors, windows, and
many other objects that open and close. The sensor transmits
signals to the control panel when a magnet mounted near the
sensor is moved away from or closer to the sensor.
Encrypted signals help secure RF communication. The sensor
is equipped with a wall and cover tamper for additional
security.
Installation guidelines
Use the following installation guidelines:
Mount the sensor on the door frame and the magnet on
the door. If the sensor is used on double doors, mount the
sensor on the least-used door and the magnet on the
most-used door.
If possible, locate sensors within 30 m (100 ft.) of the
panel. While a transmitter may have a range of 150 m
(500 ft.) or more out in the open, the environment at the
installation site can have a significant effect on transmitter
© 2022 Carrier
NL
PL
PT
RU
TR
2
Z
X1
Y
0.4 in.
(1 cm)
0.4 in.
(1 cm)
3
(T)
(+)
5
(1)
range. Sometimes a change in sensor location can help
overcome adverse wireless conditions.
Make sure the alignment arrow on the magnet points to
the alignment mark on the sensor (see Figure 4).
Place sensors at least 4.7 in. (12 cm) above the floor to
avoid damaging them.
Avoid mounting sensors in areas where they will be
exposed to moisture or where the sensor operating
temperature range will be exceeded. See "Specifications"
on page 3.
If possible, mount directly to a stud. If a stud is not
available, use plastic anchors.
Remove internal reed switches not in use.
Materials needed
You will need the following tools and materials:
Two Ø3,5 x 25 mm (#6 x 1.00 in.) PPH (Phillips pan head)
screws and two plastic anchors for mounting the sensor
(included)
Two Ø3,5 x 15 mm (#6 x 0.625 in.) PPH screws for
mounting the magnet (included)
One Ø2,5 x 6 mm (#4 x 0.250 in.) PPH screw to secure
the sensor cover to the sensor base (included)
1 / 28
(2)
(2)
(3)
P/N 466-2110-ML • REV K • ISS 05DEC22
(L)
