Tunturi UB90 Pro Utility Bench Benutzerhandbuch Seite 26

UB-90

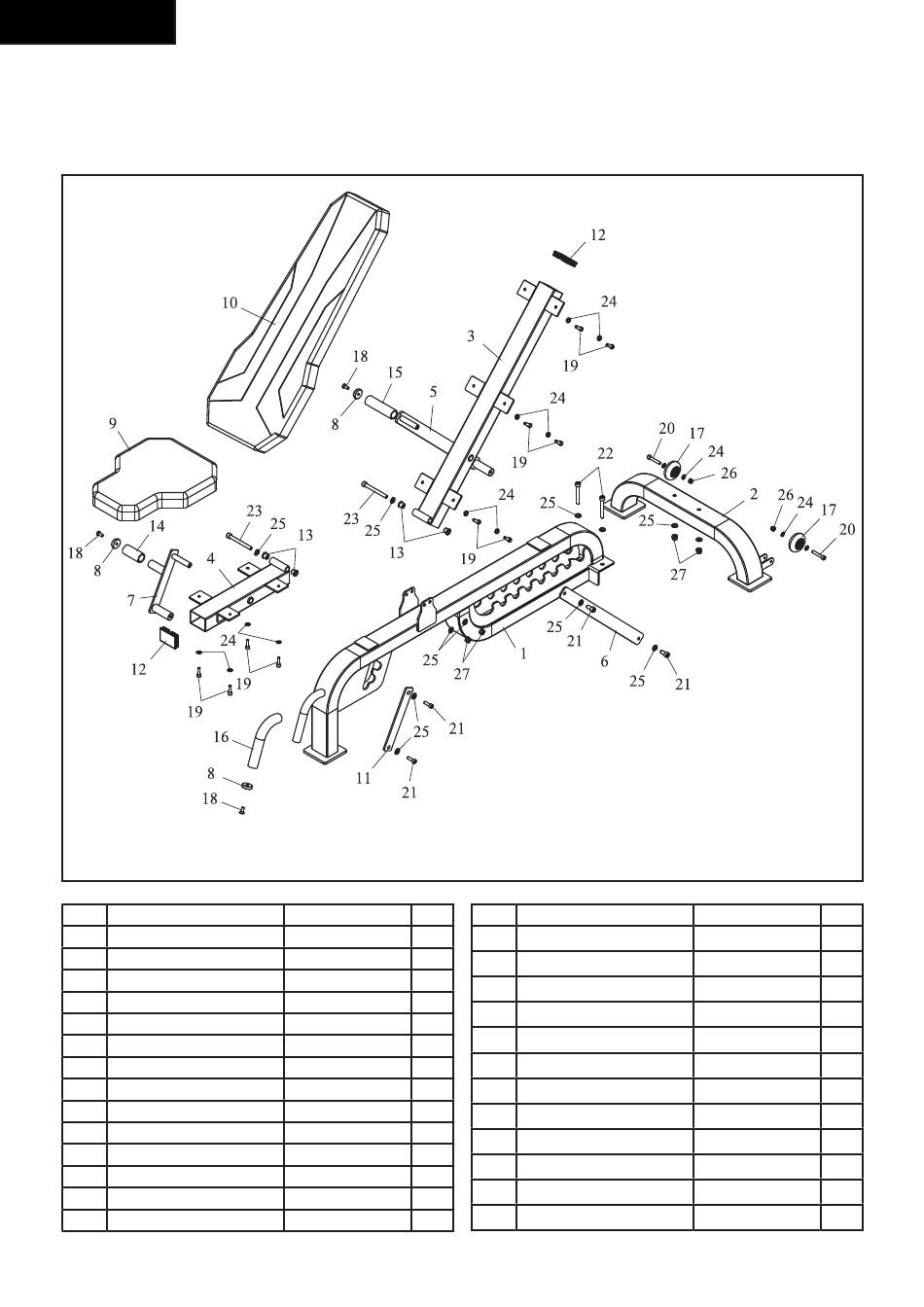

Exploded view
Explosieonszeichnung
Schéma éclaté
NO. Description
1 Main frame
2 Rear frame
3 Backrest support
4 Seat support
5 Back adjustment
6 Joint plate
7 Seat adjustment
8 Sheathing
9 Seat cushion
10 Backrest
11 Front joint plate
12 Rectangular plug
13 Bushing
14 Short foam roller
2 6
Specs Qty
1
1
1
1
1
1
1
3
1
1
1
2
4
1
Overzichtsschema
Diagrama de despiece
15 Foam roller
16 Long foam roller
17 Wheel
18 Socket screw
19 Socket cap screw
20 Socket cap screw
21 Socket cap screw
22 Socket cap screw
23 Socket cap screw
24 Washer
25 Washer
26 Lock nut
27 Lock nut
1
1
2
3
M8x25
10
M8x25
2
M8x45
4
M10x25
2
M10x70
2
M10x100
14
Ø8
12
Ø10
2
M8
M10 4
