INSTRUCTION
EN
CMF10, CMF10-230
i
Read this instruction before installation
and wiring of the product
Consult documentation in all cases where this symbol
is used, in order to find out the nature of the potential
hazards and any actions to be taken

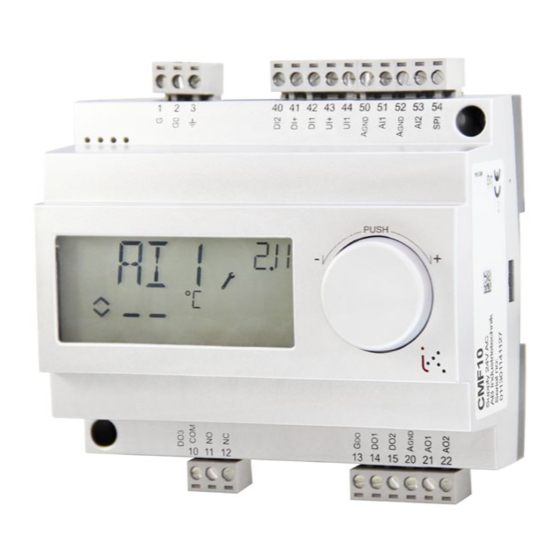

Controller with display
CMF10 is a pre-programmed, configurable controller. It has
10 inputs/outputs and can be configured to control temperature
(ventilation control with heating and cooling), water-heated radiator
heating with outdoor temperature dependent control-curve or
domestic hot water control.
From revision R20, it is possible to connect an external setpoint
device. The device can be used for control modes 1-4.
CMF10 is available in two versions, CMF10 with 24 V AC supply volt-
age and CMF10-230 with 230 V AC supply voltage.
All configuration and normal handling is done using the display and
the knob on the front.
Technical data
Supply voltage
CMF10-230 230 V AC +10/-15%, 50...60 Hz
CMF10 24 V AC ±15%, 50...60 Hz
Power consumption 6 VA
Ambient temperature 0...50°C
Ambient humidity Max. 95% RH
Storage temperature -20...70°C
Display Numeric / graphic. Background
illumination.
Inputs Refer to connection illustrations and table
below
Terminal blocks Disconnectable, so-called lift type for cable
cross-section 2.5 mm
Protection class IP20
Material, casing Polycarbonate, PC
Weight
CMF10-230 370 g incl. terminals
CMF10 215 g incl. terminals
Dimensions 122 x 120 x 64 mm (WxHxD incl. terminals)
Overvoltage category 3
Pollution degree 2
Inputs
AI Resolution: 10 bit A/D
AI1 PT1000-sensor, range 5...80°C
AI2 PT1000-sensor, range -30...+50°C
SPI PT1000 setpoint device, range 0...40°C
UI
AI PT1000, range 0...80°C
or DI Closing potential-free contact
A Reference for AI
GND
UI+ Reference for UI
DI Closing potential-free contact
DI+ Reference for DI
Outputs
AO 0...10 V DC; 8 bit D/A short-circuit protected
DO1 and DO2
(CMF10) Triac controlled, 24 V AC, 0.5 A continuous (connected
to G0)
DO1 and DO2
(CMF10-230) Triac controlled, 24 V AC, 0.16 A continuous with
internal trafo (connected to G0)
DO3 Change-over (SPDT) relay 230 V AC, 1000 VA
GDO Reference for DO1 and DO2. 24 V AC output
CMF10
Setpoint values
Supply air
Cascade control, room
Radiator circuit control
(only when using
a room sensor)
External setpoint
Domestic hot water
Neutral zone
P-band
I-time
D-factor
P-band cascade
2
Min. at cascade
Max. at cascade
Damper min. limit
Start of outdoor compens.
Outdoor compensation
at -20°C outdoor temp.
Supply temperature
(water-heated radiator
heating)
at -20°C outdoor temp.
at 20°C outdoor temp.
Frost protection
SP. Shutdown mode
Actuating time,
3-point actuator
Installation
CMF10-230 must be installed in a casing (DIN-casing or similar)
where it can be used without risk of electric shock and where it fulfills
the demands for the LVD-standard. See the section Installation in the
"CMF10 Manual".
Disconnection
The controller CMF10-230 shall be connected to a switch or circuit
breaker in the building installation. This switch shall be in close prox-
imity to the controller and within easy reach of the operator, and shall
be marked as the disconnecting device for the equipment.
Temperature Factory setting
10...80°C 21°C
10...50°C 21°C
10...40°C 21°C
0...40°C
10...80°C 55°C
0...10°C 1°C
0...99°C 15°C
0...990 s 60 s
0...99 0
0.5...99°C 15°C
0...99°C 15°C
0...99°C 25°C
0...99 % 10 %
-30...50°C 10°C
-10...10°C 5°C
0...99°C 60°C
0...99°C 20°C
7°C (fixed)
25°C (fixed)
10...300 s 120 s
