6. OUTPUT 4 ACTIVE TIME PROGRAMMING
If you give a pulse to channel 4 from the radio control,
output 4 (closed contact) is activated for a programma-
ble time varying from a minimum of 1 sec to a maximum
of 127.5 minutes.
To programme time, first of all select, with dip switch 2,
the time base with which the board will count (see table
fig.1); next press the SW5 key (Fig.1 ref.
the selected time (LED DL6 briefly lights up whenever the
relevant key is pressed). Wait for 5 secs. without pressing
any key, until LED DL6 lights up on steady beam for 3
seconds. (To exit programming)
EXAMPLE 1:
OUTPUT ACTIVATION TIME 4=5 minutes
1. Select 30 secs. time base (Dip-switch 2 OFF )
Press key SW5 (Fig.1 ref.
2.
secs. X 10 pressings = 5 min.)
3. Do not press any key for 5 secs. until you exit pro-
gramming.
EXAMPLE 2:
OUTPUT ACTIVATION TIME 4=20 seconds
1. Select 1 sec. time base. (Dip-switch 2 ON )
2. Press key SW5 (Fig.1 ref.
X 20 pressings = 20 sec.)
3. Do not press any key for 5 secs. until you exit pro-
gramming.
IF OUTPUT 4 IS ACTIVE, LED DL4 IS LIGHTED, WHEREAS
LED DL6 FLASHES ACCORDING TO THE SELECTED
TIME BASE
SLOW 30 SECS. TIME BASE SELECTED AND
FLASHING DL6
FAST FLASHING 1 SEC. TIME BASE SELECTED AND OUTPUT
DL6
TO MODIFY OR CHANGE ACTIVATION TIME OF
OUTPUT 4, REPEAT THE PROGRAMMING OPERA-
TION.

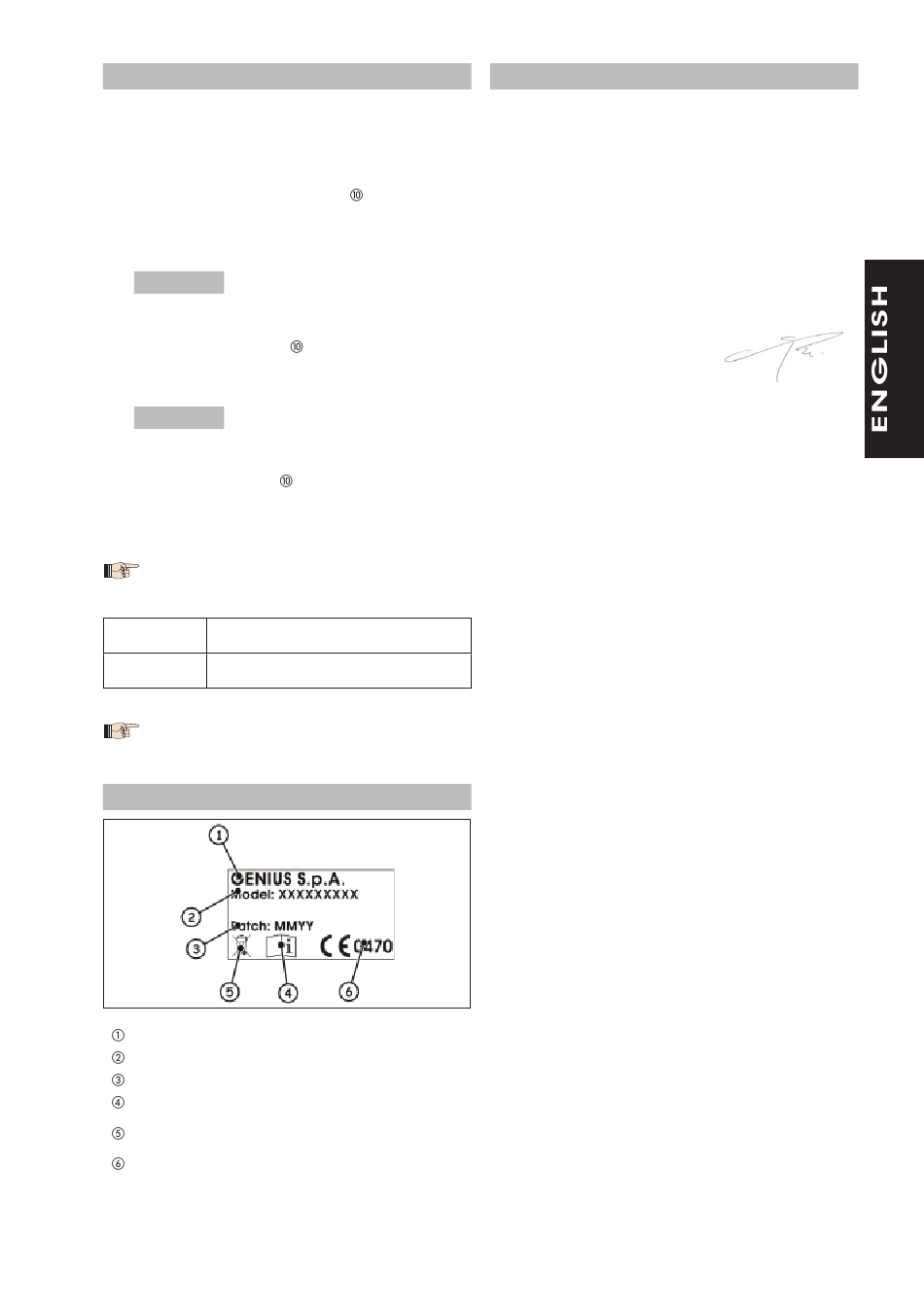

7. DESCRIPTION OF THE LABEL

Name of producer
Model identification code
Identification number of the production batch
Read the instructions
Observe the current regulations for a correct di-
sposal
Notified body reference
) until you reach
) 10 times. (time base 30
) 20 times. (time base 1 sec.
OUTPUT ACTIVE
ACTIVE
CE DECLARATION OF CONFORMITY
Manufacturer: GENIUS S.p.A.
Address: Via Padrre Elzi, 32 - 24050 - Grassobbio - Bergamo - Italia
Declares that: The radio system INTERMODO4 868
are in conformity with the requirements of directive
•
99/5/CE
and according to the requirements of the following
•
harmonised standards:
EN301 489-1 EN301 489-3
EN 60950-1
Grassobbio, 01 August 2008
7
EN300 200-2
EN 50371
Managing Director
D. Gianantoni
