Compensators Ø76.1-108 mm
Material
Twork
Tmax.
Pmax.

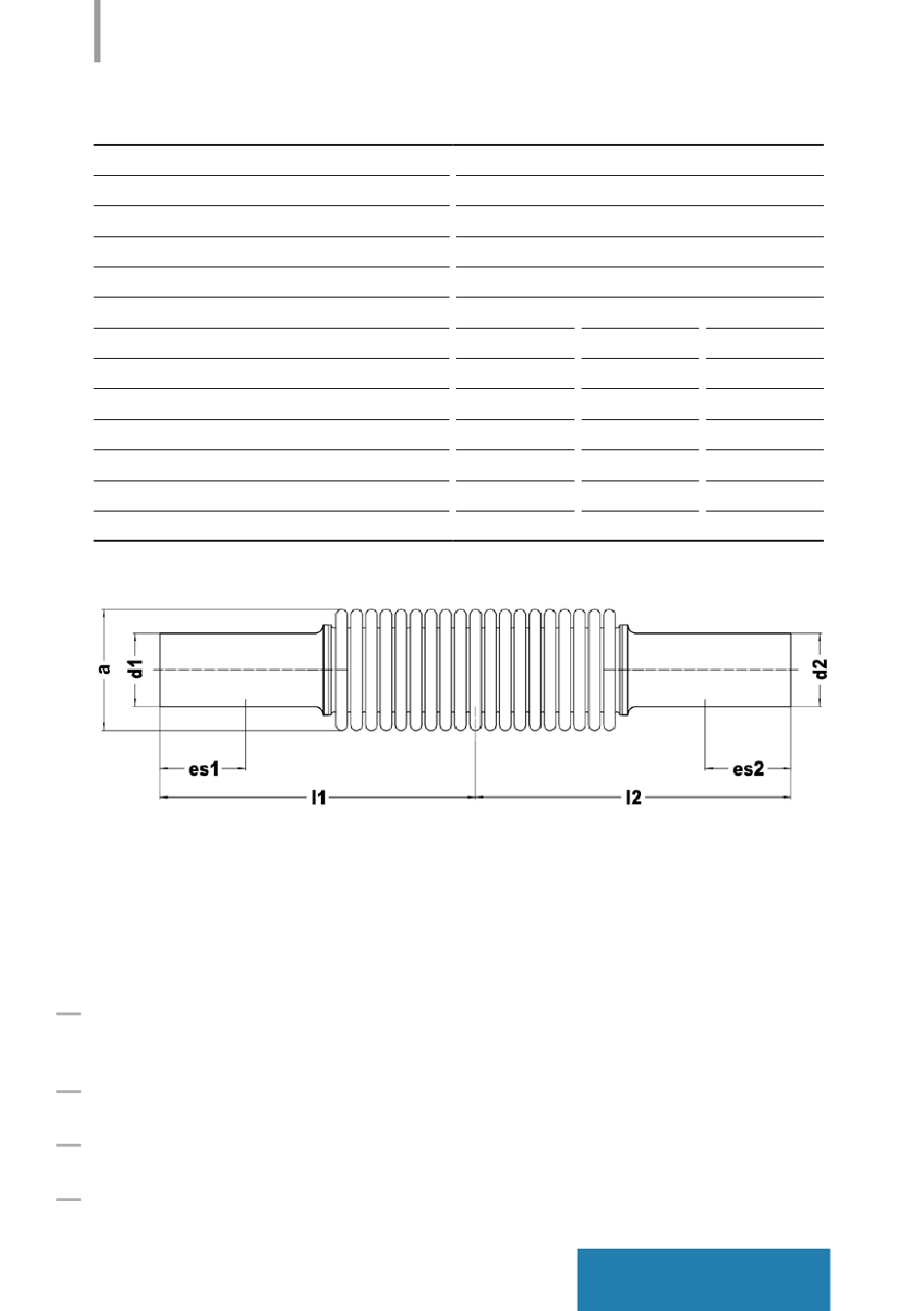

Clamp terminal
d1 = d2
and
es1 = es2
l1 = l2
Elongation take-over ∆l
Effective area [cm²]
Spring rate [N/mm]
weight

Designation

The KAN-therm Inox compensators are intended for compensating thermal
elongations of KAN-therm Steel and KAN-therm Inox pipelines.

Recommendations of application

The design of compensators is based on the elastic bellows, which rigidity is smaller
than the rigidity of the compensated pipelines. This requires an assembly only
at straight sections, anchored on two sides by fixed supports.
The compensators cannot be mounted on bends and other self-compensating
sections.
That type of compensators is not suitable for carrying radial movements, bucklings
and torsional forces of the installation.
These compensators are not to be mounted with pretensioning.
1.4404 (AISI 316L)
135 °C
150 °C
16 bar
M
76.1 mm 88.9 mm
92 mm 106 mm
55 mm 63 mm
138 mm 145 mm
30 mm 30 mm
52,5 73,2
60 82
1.41 kg 1.61 kg
108 mm
130 mm
77 mm
173 mm
30 mm
115,0
92
2.10 kg
