SMS M000216 Handbuch Für Installation Und Anpassung Seite 6

6 SMS CASING CEILING LANDSCAPE - PORTRAIT

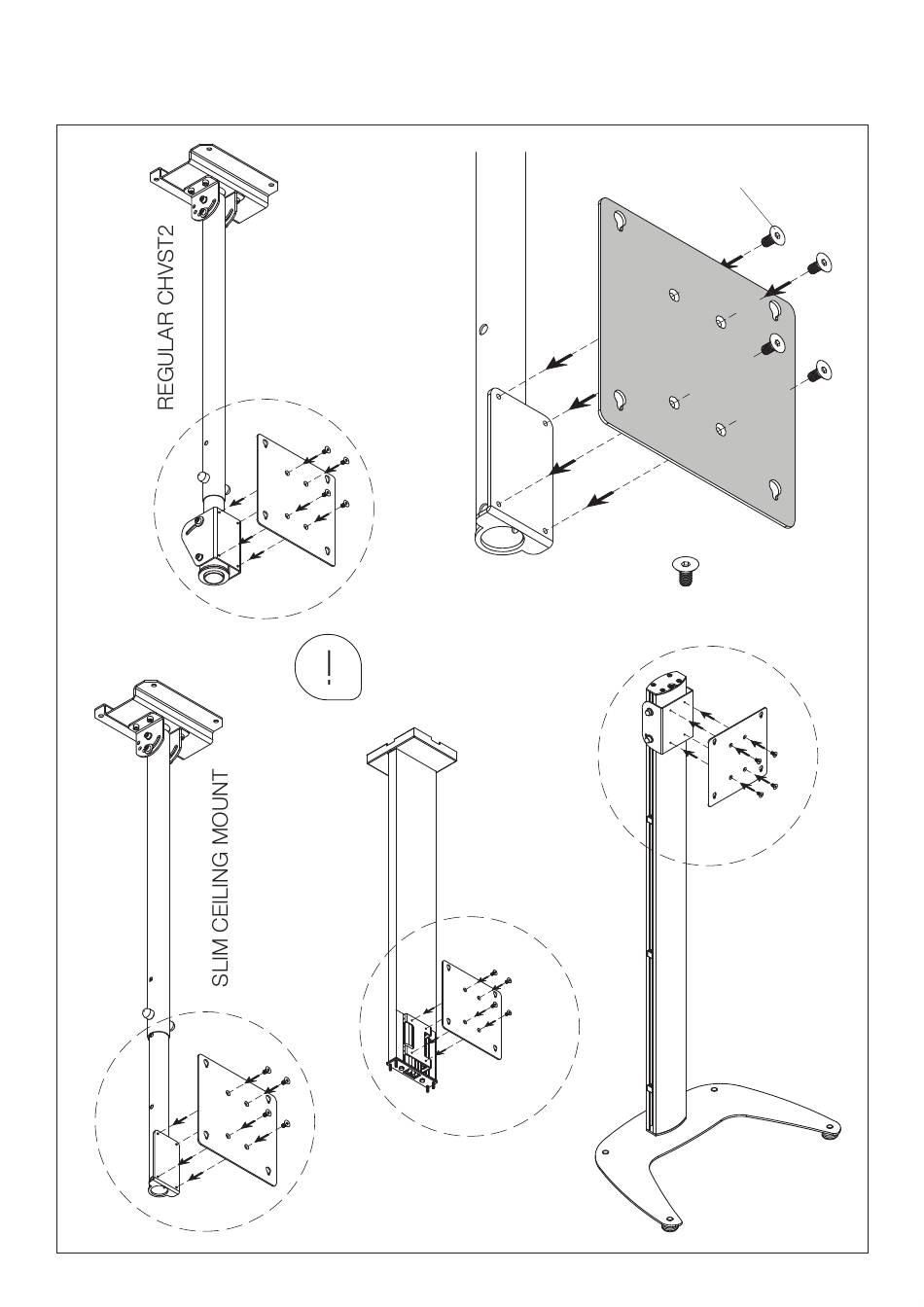

Mounting Adapter Plate To Different Base Options
1
Mount adapter
on bracket
Refer bracket manual
for mounting and
extension options
ALU CEILING
MOUNT
S1
S1
(4x)
FLOOR MOUNT
