INSTALLATION AND
ADJUSTMENT MANUAL
K05-147-2 / K05-147-6

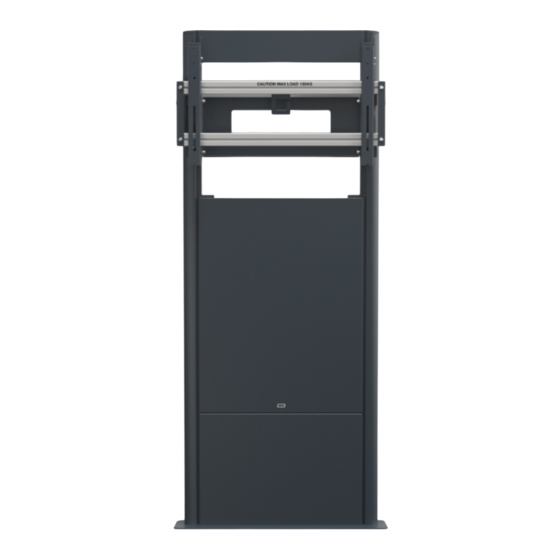

SMS Presence Wall-Floor Fixed 600x400
M000285
SMS Presence Wall-Floor Fixed & SMS Presence Wall-Floor Fixed VC
DE Handbuch für Installation und Anpassung
IT Manuale per l'installazione e la regolazione
ES Manual de instalación y ajuste
FI Asennus- ja säätöohje
FR Manuel d'installation et de réglage
NL Handboek voor installatie en instellingen
PL
RUS
ARB
SE Monterings- och justeringsmanual
GR
K05-148-2 / K05-148-6
SMS Presence Wall-Floor Fixed 1000x600
Werbung
Verwandte Anleitungen für SMS K05-147-2
Inhaltszusammenfassung für SMS K05-147-2
- Seite 1 SMS Presence Wall-Floor Fixed 600x400 SMS Presence Wall-Floor Fixed 1000x600 M000285 SMS Presence Wall-Floor Fixed & SMS Presence Wall-Floor Fixed VC DE Handbuch für Installation und Anpassung IT Manuale per l'installazione e la regolazione ES Manual de instalación y ajuste FI Asennus- ja säätöohje...
- Seite 2 K05-149-2 / K05-149-6 K05-150-2 / K05-150-6 SMS Presence Wall-Floor Fixed VC 800x400 SMS Presence Wall-Floor Fixed VC 1000x600 SMS Presence Wall-Floor Fixed & SMS Presence Wall-Floor Fixed VC...
- Seite 3 Advertencia Avertissement El montaje del producto no es responsabilidad de SMS Smart Media Solutions AB y es muy Le montage doit impérativement être effectué de façon correcte et ne relève pas de la importante que el producto sea montado correctamente. El montaje incorrecto puede responsabilité...
- Seite 4 Sulla ricevuta devono essere chiaramente leggibili nome be clearly legible on the receipt. The owner is to pay the cost of returning the product to SMS, while del fornitore e data d’acquisto. Le spese di spedizione a SMS sono a carico dell’acquirente;...
- Seite 5 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Instructions for use - SMS Presence Mobile, SMS Presence Floor & SMS Presence Floor with feet When using Children may use product only under supervision of an adult Not for children Max.
- Seite 6 6 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC ASSEMBLY INSTRUCTIONS YOU WILL NEED No. 4 No. 5 NOT INCLUDED Display (1x/2x) (8x) (8x) (8x) optional NUMBER OF PERSONS REQUIRED...
-
Seite 7: List Of Parts
SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC LIST OF PARTS B3 (1x) (1x) (1x) (1x) B1 (1x) B4 (1x) B2 (1x) Camera Shelf: for SMS Presence Wall-Floor Fixed VC only ISO4762 ISO4032 (1x) (1x) (1x) (1x) [M8x16]... - Seite 8 8 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC LIST OF PARTS (cont.) 1 pair/display (2x) (1x) (1x) 600x400 1000x600 (2x) (1x) (1x) VC 800x400 VC 1000x600 K1 SCREW KIT (1 kit/display) Screw M6x10 Screw M6x16 ISO 7380[M8x16]...
- Seite 9 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Adjust position and depth of bracket 2. Adjust bracket depth 1. Adjust bracket 1. Loosen position 2. Adjust depth 3. Tighten 1. Adjust bracket position 2. Adjust bracket depth...
- Seite 10 10 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Mark drill holes (8x) Drill holes (8x) Min 70mm Min 70mm...
- Seite 11 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Bolt bracket to wall& floor Check level before proceeding 1. Loosen Adjust display Note: Bracket height mounting height adjustment can also be done after step 6 (page 12) 2. Adjust height...
- Seite 12 12 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC SMS Presence 600x400 and 1000x600 C3(4x) (4x) SMS Presence VC 800x400 and 1000x600 C3(4x) (4x)
- Seite 13 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Guide cable Attach covers Alt. 2 Alt.1 (For procedure to open/ close bottom cover see page 19, step 16)
- Seite 14 14 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC For SMS Presence W/F Motor VC only Mount camera shelf bracket E6 (2x) E5 (2x) (2x) (2x) For SMS Presence W/F Motor VC only Adjust shelf height to suit display...
- Seite 15 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Prepare display brackets (all) Attach plastic for mounting covers (A2+A3) Loosen A3(1x) A2(1x) Slide Mount bracket on display K1(4x) SCREW KIT (1 kit/display)
- Seite 16 16 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Mount display SMS Presence 600x400 and 1000x600 SMS Presence VC 800x400 and 1000x600...
- Seite 17 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Lock display Pull Tighten Secure all! Adjustment & Alignment ADJUST!
- Seite 18 18 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC Camera shelf and camera Installation E8(2x) Adjust E7(2x) dist. E7(2x) Assemble camera shelf (2x) (2x) (2x) Alt.1: E9 Alt.2: E10 Adjust Mount camera Alt.1: E9(4x) Alt.2: Tighten E10(1x)
- Seite 19 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC To open or close bottom covers Use this space to store cables, codecs, accessories, etc.
-
Seite 20: Product Dimensions
20 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC PRODUCT DIMENSIONS K05-147-2 / K05-147-6 SMS Presence Wall-Floor Fixed 600x400 15,75 CL D - Centrum 21,70 Line Display 0,33 7,87 max 600 - min 200 3,65 29,75 5,91 27,15 689,5 All dimensions in mm. - Seite 21 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC PRODUCT DIMENSIONS K05-148-2 / K05-148-6 SMS Presence Wall-Floor Fixed 1000x600 15,75 All dimensions in mm. CL D - Centrum Dimensions in brackets [ ] Line Display are in inches 21,70...
- Seite 22 22 SMS PRESENCE WALL-FLOOR FIXED & SMS PRESENCE WALL-FLOOR FIXED VC SMS Evoko Group AB Hästholmsvägen 32, 5th floor, SE-131 30 Nacka, Sweden www.smartmediasolutions.com...
