Microphone Mute - Deltaplus EZ-COM Montageanweisung

- End Call
Press (1) to end the ongoing phone call.
Note: If the EZ-COM was in Intercom before the call, the Intercom will reconnect automatically when the
call is ended.
- Volume setting
Short Press Vol + (3) / Vol -(2) to respectively increase or decrease the audio volume level.
A high / low beep is heard if the maximum / minimum level is reached.
- Activate Voice Dial (if supported by phone)
Short Press (1) to activate a Voice Dial.
3-INTERCOM USE
INTERCOM PAIRING PROCEDURE FOR 2 EZ-COM
(Pairing must be done the first time only).
1. Put the two EZ-COM in pairing mode :
Make sure the EZ-COM is off, then Long Press (1) for 8 sec. until the LED (4) blinks
2. While two units are in pairing mode, Short Press (1) on any of the two units to execute an Intercom
search.
The LED (4) is flashing
device.
3. When the two EZ-COM are successfully paired, the LED (4) is steady
be used.
- Connecting to Intercom
Make sure that the two devices are already paired
Long Press (1) for 2 seconds on any of the two EZ-COM, until a beep is heard to connect the Intercom.
- Disconnecting Intercom
Press (1) again to end the Intercom communication.

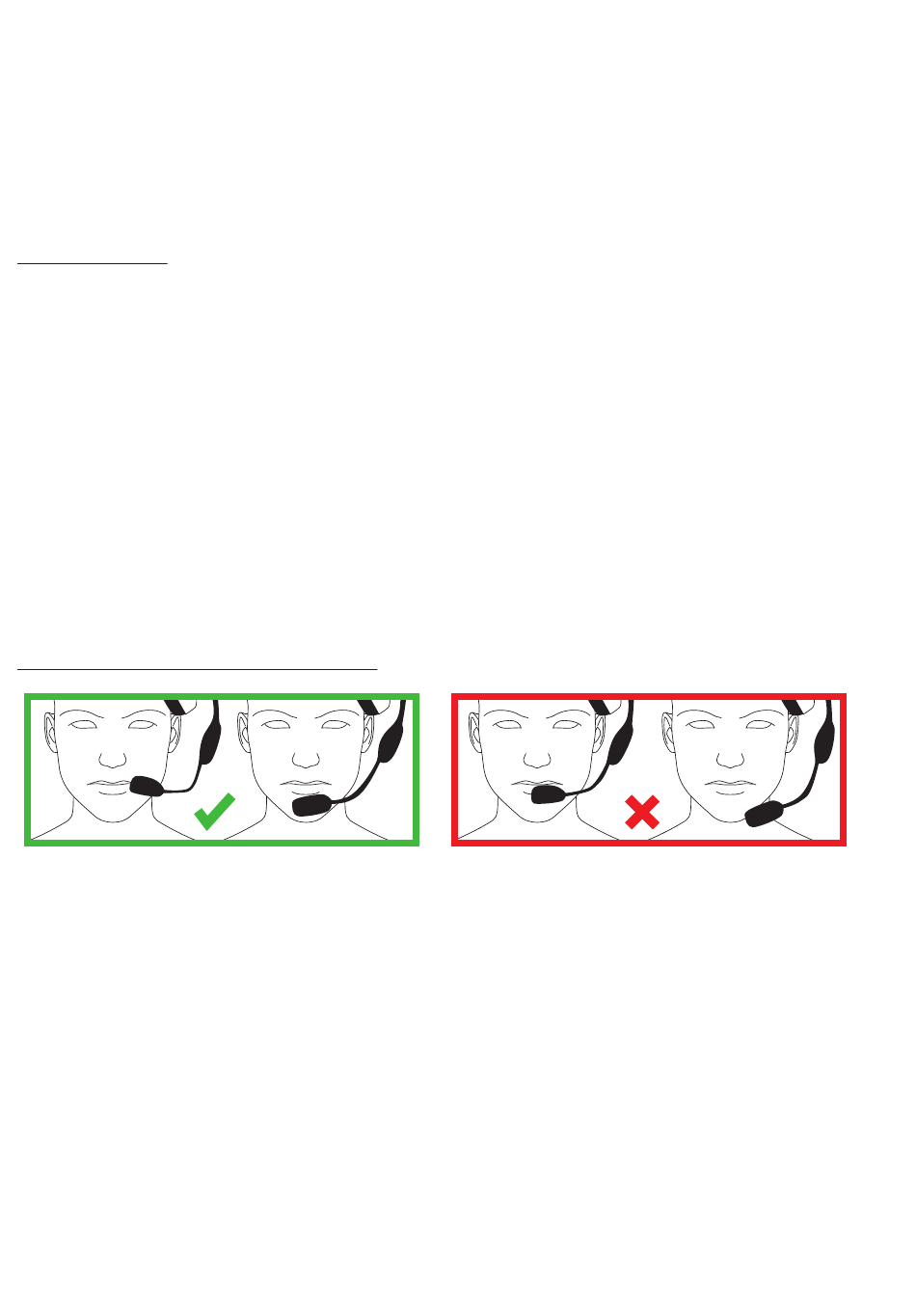

4- MICROPHONE POSITION AND SETTINGS
SETTINGS

- Microphone Mute

Long Press Vol -(2) until a double tone is heard, to mute the microphone during an ongoing phone call or
an Intercom communication.
- Unmuting Microphone
If the microphone is on mute mode, Short Press any volume button to unmute.
- Volume setting
Short Press Vol + (3) / Vol -(2) to respectively increase or decrease the audio volume level.
- Enabling Voice Answer
Put the EZ-COM in pairing mode, then Long Press Vol + (3) until the LED (4) becomes blue.
- Disabling Voice Answer
Put the EZ-COM in pairing mode, then Long Press Vol + (3) until the LED (4) becomes red.
- Auto – Volume Control ON
Put the EZ-COM in pairing mode, then Long Press Vol - (2) until the LED (4) becomes blue.
Note: The Auto-volume Control feature allows the speaker's volume to autonomously adapt to the
surrounding sound level. When this feature is activated, it becomes impossible to manually adjust the volume.
8
UPDATE 07/12/2017
red/blue faster and a search beep indicates that the EZ-COM is searching for a
red/blue alternately.
blue and the Intercom is ready to
