Deltaplus EZ-COM Montageanweisung Seite 7

If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1-GENERALITIES
CHARGING THE EZ-COM
Connect the micro-USB cable into the device socket (5).
Connect it to a power supply.
The LED (4) will turn
The LED (4) will turn
POWER ON
Long Press (1) for 2 seconds to switch ON until the LED (4) is blinking
heard.
POWER OFF
Long Press (1) for 5 seconds to switch OFF until the LED (4) becomes
heard.
2- USE WITH A PHONE
PAIRING THE EZ-COM TO A BLUETOOTH MOBILE PHONE
(Pairing must be done the first time only)
1. Make sure the EZ-COM is off, then Long Press (1) for 8 sec. until the LED (4) blinks
alternately. It is now in its pairing mode.
2. On your phone, turn on the Bluetooth function then execute a Bluetooth search. (See your phone's
manual).
3. When the phone displays the list of Bluetooth devices, select the EZ-COM then enter the pin code 0000
(if the phone asks for the pairing pin code) and press ok.
When the EZ-COM is successfully paired to the phone, the LED (4) blinks
USING THE EZ-COM WITH A BLUETOOTH MOBILE PHONE
Phone call
- Answer Call
Short Press any button to accept the incoming call or say OK loudly (voice answer must be activated).
red
while charging.
green once the battery is fully charged.

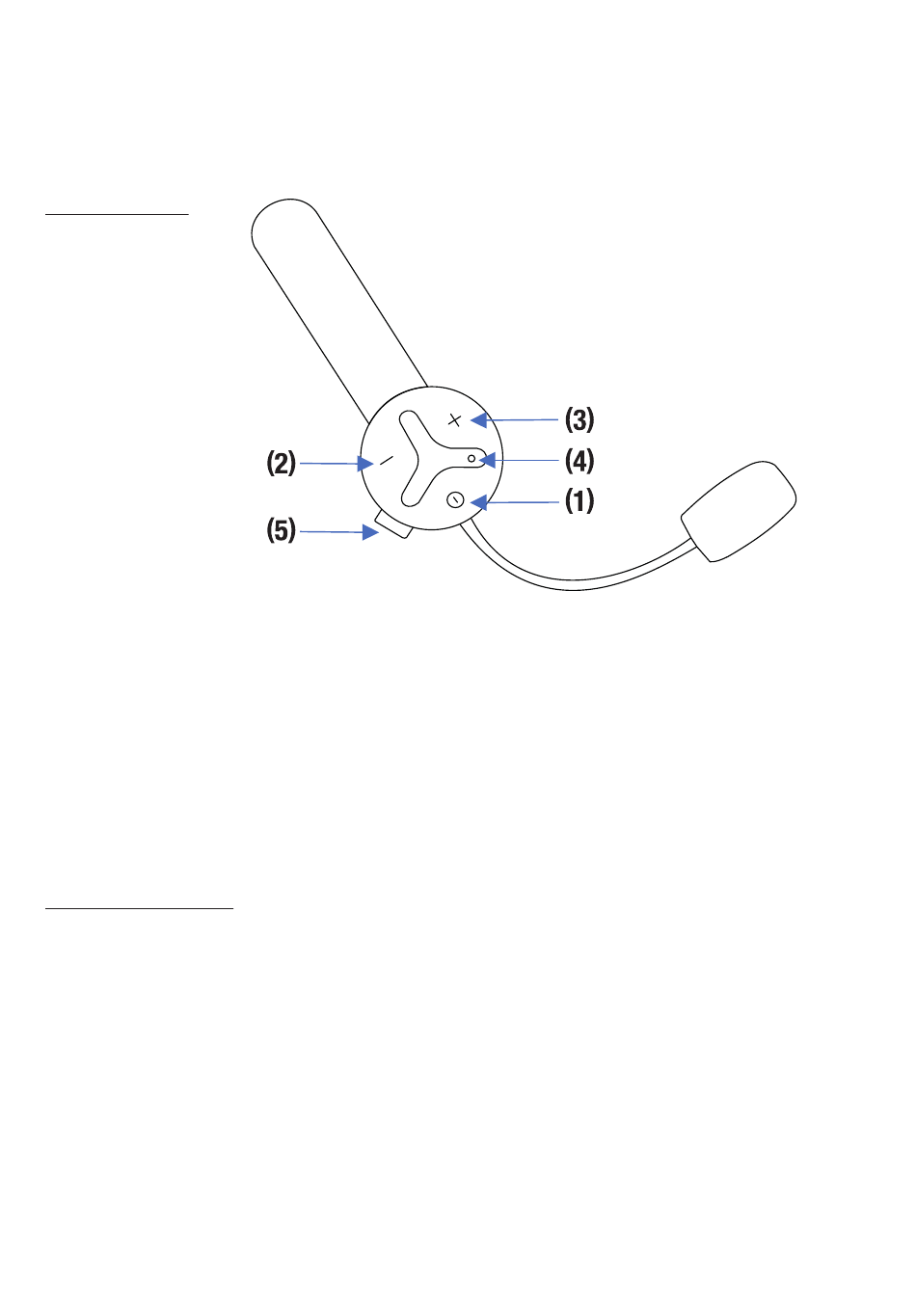

(1) On / Off Button
(2) Volume - Button
(3) Volume + Button
(4) LED lamp
(5) Micro-USB Port
blue and an ascending tone can be
red
and a descending tone can be
red/blue
blue twice every 2 sec.
UPDATE 07/12/2017
7
