1.3 how to operate the clamp
The IPTKU - IPTKUD lifting clamps are suitable for use as:
EN
- lifting clamp for steel beams
08
- lashing clamp for steel beams
- temporary tackle eye for on steel beams
The IPTK - IPTKW lifting clamps are suitable for use as:
- lifting clamp for steel beams
- temporary tackle eye for on steel beams
See illustrations 5 to 8 for part reference.
1. Open the clamp by turning the handgrip (X) counter-clockwise, so that jaws fit
comfortably over the profile (5).
2. Hold the clamp in position over the profile and close the clamp by turning the
handgrip (X) clockwise. Ensure that the clamp closes properly and securely (E) (6).

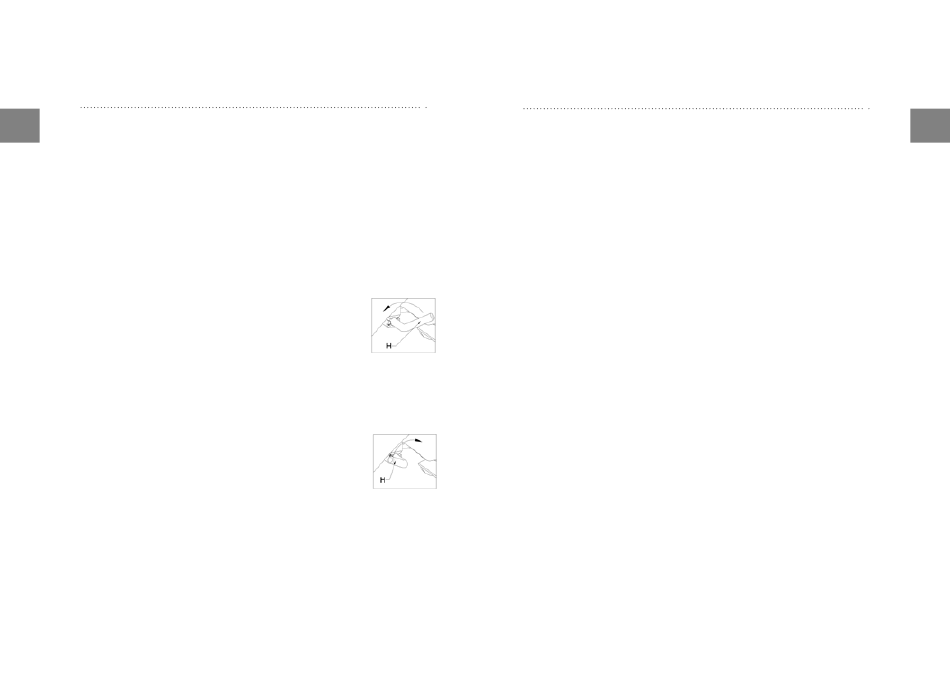

IPTKU - IPTKUD: blocking the spindle:
Pull lever (H) and turn left. The spindle
can only be locked in the vertical and horizontal position
of the handgrip.
3. The load can now be lifted with it making no difference whether the clamp is used
as lifting clamp or as temporary tackle eye.
4. As soon as the load is at its destination, the clamp must be fully free of load.
The lifting eye (D) (cable/chain for IPTK-IPTKW clamps) must be able to move
freely (7).
IPTK - IPTKUD: de-blocking the spindle:
Pull lever (H) and turn right.
5. The clamp can now be removed. Open the clamp by once more turning the
handgrip (X) counter-clockwise and remove the clamp from the profile (8).
Copyright © 2013 The Crosby Group LLC. All Rights Reserved.
1.4
10 year warranty preventive maintenance procedure:
Parts should be replaced only when they no longer meet our standards.
10 year warranty repair procedure:
Parts should be replaced only when they no longer meet our standards.
Please consult www.crosbyip.com/warranty for more information on maintenance
procedures.
Maintenance without 10 year warranty: Annually clamps are subjected to inspection*
and parts will be replaced only when they no longer meet our standards.
*CrosbyIP authorised repairer
A reliable clamp, a secure basis for lifting
