ATS1190 and ATS1192 Smart Card Readers
Installation Sheet
EN DA DE ES
FI
FR
1
ATS1190
(1)
(2)
2
Cable
J2
J1
J1
Red
12V
12V
12V 12V
Black
0V
0V
0V
D−
Green
D0
D0
White
D1
D1
D+
—
—
Yellow
L2
—
—
Brown
L1
—
—
Blue
BZ
—
—
—
Violet
© 2019 UTC Fire & Security Americas Corporation, Inc.
IT
NL NO PL PT SV
ATS1192
Door 1, 2, 3, 4
Comms
12V
0V
0V
D0
D−
D1
D+
—
L2
—
L1
—
BZ
With 4K7 (in series)
—
to Alarm Input 3
EN: Installation Sheet
Introduction
The ATS1190/1192 Smart Card Reader is a multifunction, all-
purpose proximity card reader suitable for all locations
requiring a short-range reader. The reader can be connected
directly to the ATS Control Panel (see figure 2). It is
configurable through a Menu system accessible via the BUS or
by Configuration cards programmed through Titan and the
Smart Card Programmer (ATS1621/22) or the ATS1481
Programming card.
The reader operates from 9 to 14 VDC. It has a quiescent
current consumption of less than 25 mA and less than 80 mA
when reading a card. The ATS1190 is supplied standard with
a white removable dress cover, which can be interchanged
with one of four other colours available.
The ATS1192 is a heavy-duty version designed for standard
door frames.
Both the ATS1190 and ATS1192 are waterproof.

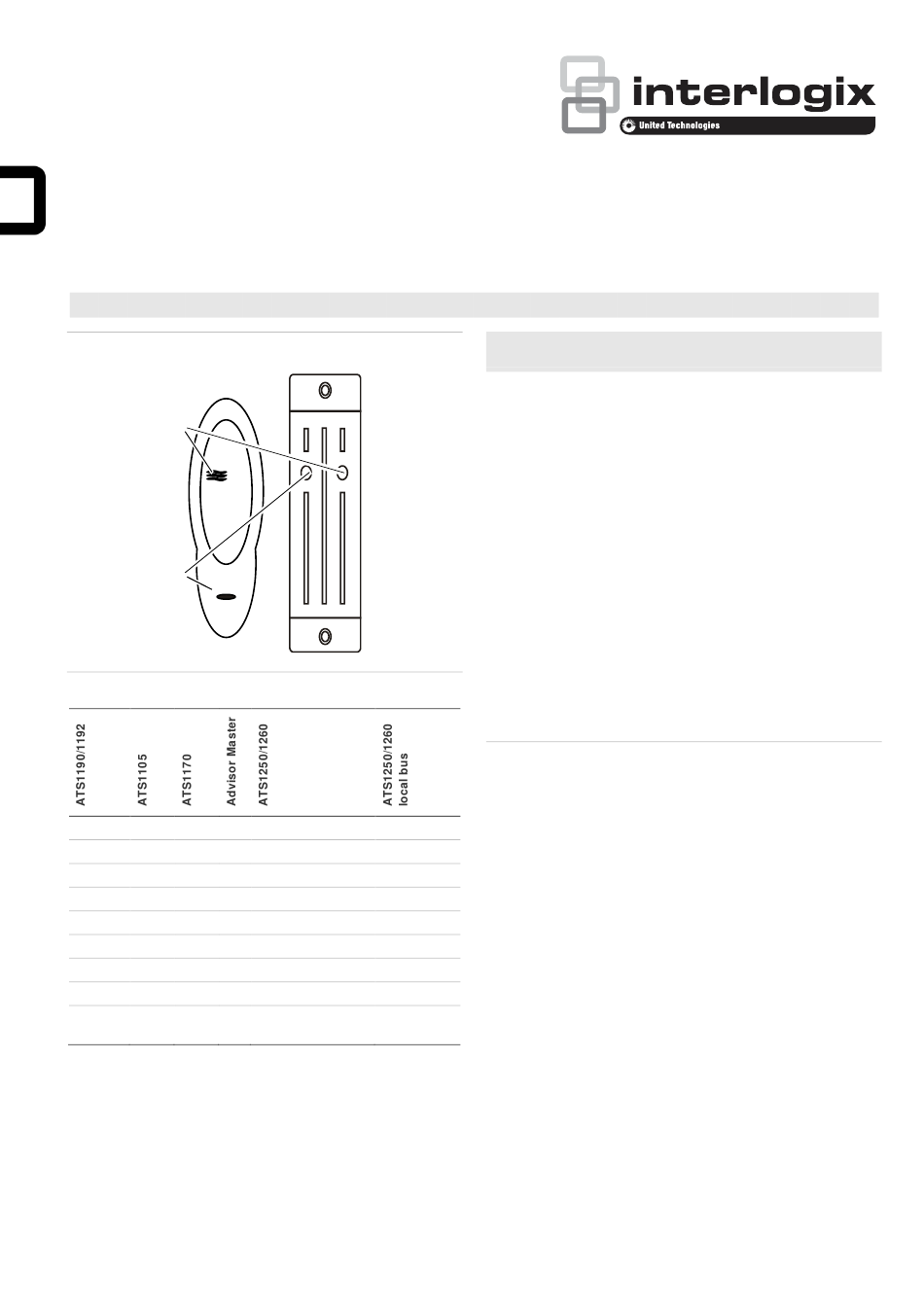

Figure 1
(1) Blue LED:
Door open
Disarmed
Mounting
The reader can be mounted on any flat surface by two pan
head screws, 3.0 to 3.5 mm diameter, located under the dress
cover. A slightly reduced range will be experienced when
mounted on metal surfaces. If mounting in an outdoor
environment, ensure that the blue LED is at the top.
It is not recommended to use countersunk screws.
For the ATS1190 the dress cover can be removed to expose
the mounting screw by gently prizing the sides away from the
main body to release the retaining clips and gently pulling on
the connection cord. Do not use excessive force or the reader
can be irreparably damaged.
After mounting, gently press the cover over the main body until
it locks into place.
P/N MAINST-ATS1190 • REV C • ISS 07FEB19
1 / 20
(2) Red LED:
Door open
Armed
